Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAF1005
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Ingress: IP66 Housing: Stainless Steel 304, Thickness3-5mm
Camera: Analog Camera Core, Or Network Camera Weight: 7KG
Inner Size For Camera: 260*80*80mm Window Glass: Tempered Glass, Thickness 10-12mm

Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting

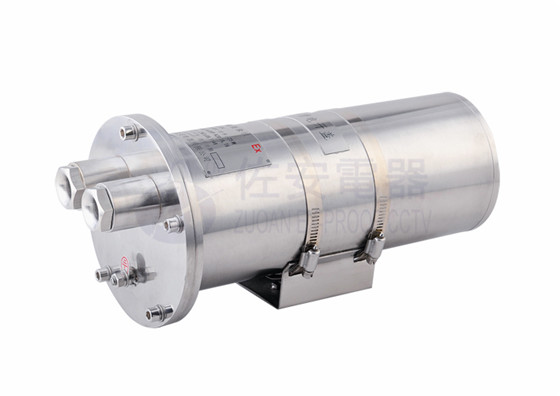

Main features:Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting 0

* CNEx certificated
* Explosion Proof Certification: CNEx13.2138
* Explosion Proof Marking: Exd II BT6 & DIP A20, TA, T6
* Fit for gas zone 1, 2;  dust zone 20, 21,22.
* Adopts stainless steel 304 or 316L
* Surface finish: with anti-corrosion proof painting, which is more fit for industry aggressive area, like marine, chemical factory ect.
* IP68 weather proof
* 2 cable glands G3/4(NPT3/4)
* Strong Tempered glass with nanometer paint film
* Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
* installation: mounted on ceiling, wall with pan &tilt, brackets.
* Inner size for camera:260*80*80mm (LxWxH)
* operation temperature: -25 to 65 degree centigrade
                                           -50 to +65 degree centigrade




Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting Description:

Model ZAF105 is featured as middle size stainless steel salty proof cctv camera housing with corrosion proof painting. It is widely used in industry more aggressive area, like marine, offshore platform, chemical factory, ocean shipping ect. Its housing is added with an-corrosion painting. Inner crust is stainless steel 316L material.

It is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF105 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF105 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF105 camera housing inner Size: 260*80*80mm, net weight: 5.5KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.



Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting Applications:



With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



 Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting Data sheet:



ZAF105
Crust stainless steel 304/ 316L
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx13.2138
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 5.5Kg
max size  for camera 260*80*80 mm
Overall dimension 329*169*173mm
accessory

wall bracket ZAZ100B

explosion proof Flexible tube D16*1000mm



Details images:

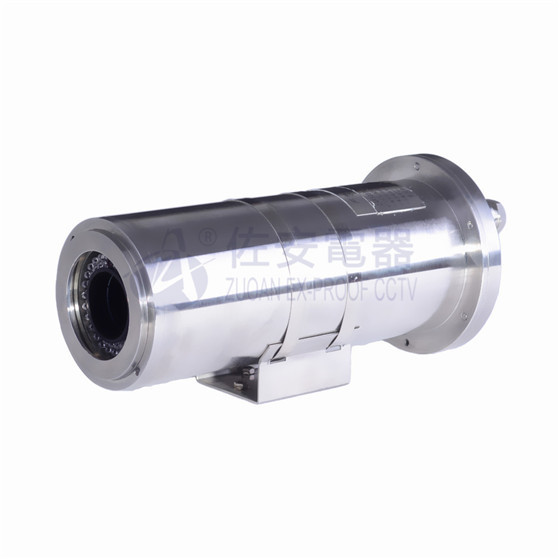

    Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting 1

Other products:

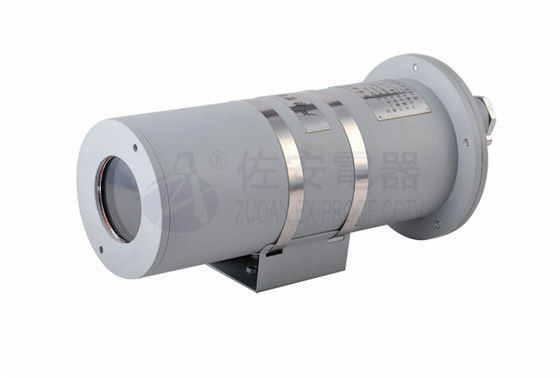

Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting 2

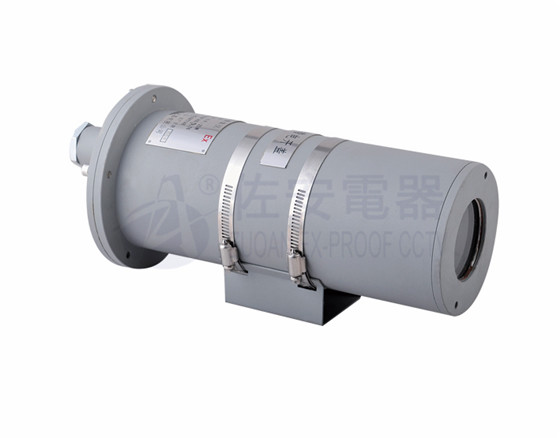

Stainless Steel Salty Proof CCTV Camera Housing With Corrosion Proof Painting 3

ATEX large size explosion proof CCTV camera with wiper
Flameproof stainless steel explosion proof camera housing
Air cooling explosion proof heat resistant camera housing for furnace
Infrared light flame proof explosion proof camera housing
700TVL night vision flame proof mini explosion protected camera with infrared lights
360 degree auto tracking ATEX explosion proof ptz camera
2MP 20X long range night vision explosion proof ptz camera with laser lights
2MP 20X explosion proof dome camera with infrared light



Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
