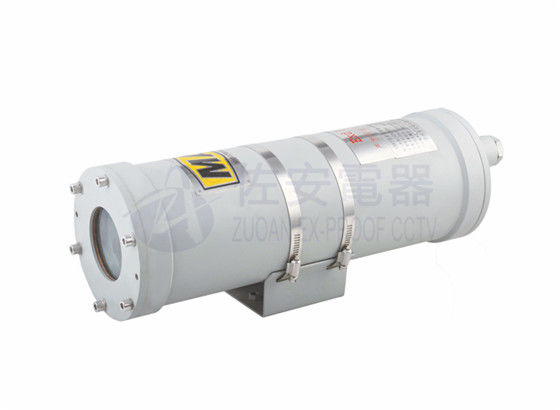

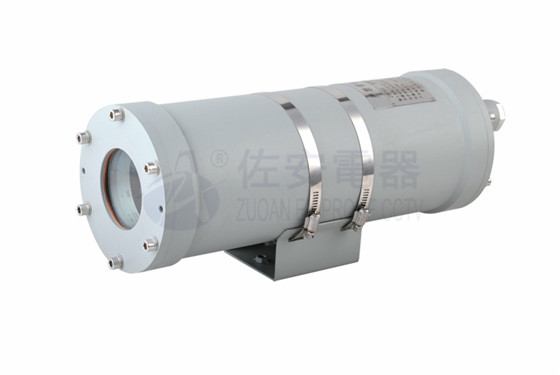

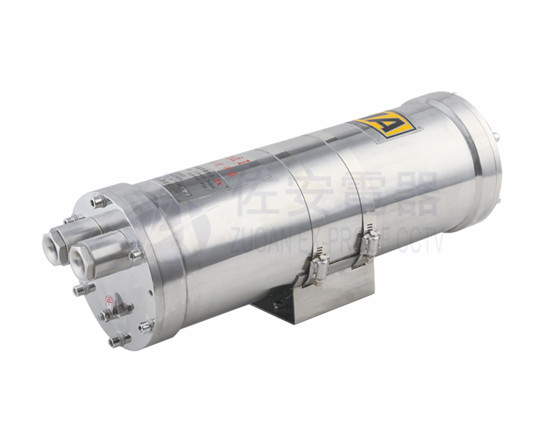

Salty Proof Corrosion Proof Stainless steel IP68 CCTV Camera Housing
Main features:
·CNEx certificated
·Explosion Proof Certification: CNEx12.0004
·Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
·Fit for gas zone 1, 2; dust zone 20, 21,22.
·Explosion Proof Manufacturer permission lience No.: XK06-014-01196
·Adopts stainless steel 304 or 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68

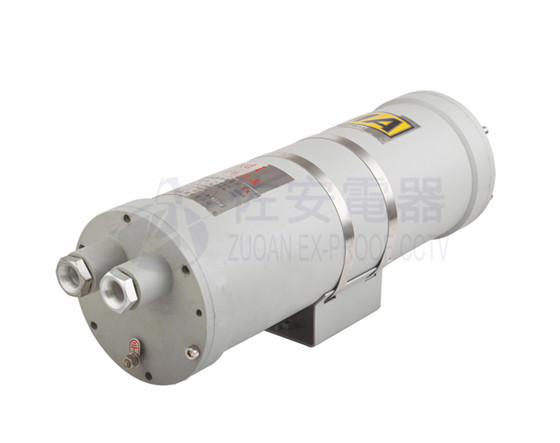

·2 cable glands G3/4(NPT3/4)
·Strong Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·Inner size for camera:300*70*75mm (LxWxH)
·operation temperature: -25 to 65 degree centigrade
-50 to +65 degree centigrade
Salty Proof Corrosion Proof Stainless steel IP68 CCTV Camera Housing Description:
ZAF102 series is a middle size of stainless steel bullet proof camera housings/ cavity/ enclosure. its dust protection rate reaches to IP68 .ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 300*70*75mm, net weight: 7.8KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.
Salty Proof Corrosion Proof Stainless steel IP68 CCTV Camera Housing Applications:
ZAF102-S, stainless steel bullet proof camera housing, apply for military, armed conflict.
ZAF102, with explosion proof certification, apply for hazardous area, like gas station, oil tank, petrochemical, refinery ect.
ZAF102-SS, with marine grade stainless steel 316L housing, apply for marine, vessel, offshore platform.
Salty Proof Corrosion Proof Stainless steel IP68 CCTV Camera Housing Data sheet:
| ZAF102 |
|
| Crust |
stainless steel 304/ 316L |
| Explosion proof marking |
Exd II CT6 & DIP A20, TA, T6 |
| Explosion proof certification |
CNEx12.0004 |
| IP rated |
IP68 |
| Power input |
AC85-265V, AC24V |
| cable output |
2 sets G3/4 or NPT3/4 |
| Window glass |
Strong temperared glass |
| working temperature |
-25~65°C
optional:-50~65°C
|
| Netweight |
7.8Kg |
| max size for camera |
300L*70W*75H mm |
| Overall dimension |
421*132*155 |
| accessory |

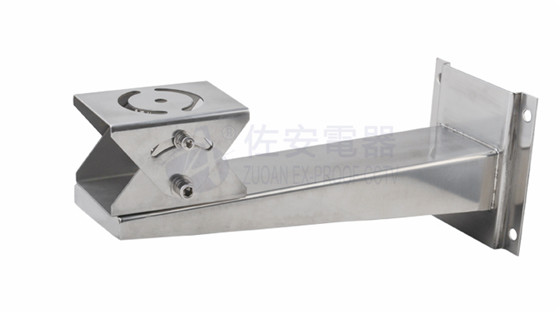

wall bracket ZAZ100B
explosion proof Flexible tube D16*1000mm
|
