Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing

Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing

    • Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing
    • Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing
    • Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing
    • Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing
    • Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing
  • Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAF104

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-600 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Ingress: IP68 Housing: Stainless Steel 316L
    Camera: Analog Camera, Network Camera Weight: 4.5KG

    Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing



    Main features:

    Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing

    ·Adopts stainless steel 304 or 316L
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP68
    ·2 cable glands G3/4(NPT3/4)
    ·Strong Tempered glass with nanometer paint film
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·Inner size for camera:220*65*65mm (LxWxH)
    ·operation temperature: -25 to 65 degree centigrade
                                               -50 to +65 degree centigrade


    Description:

    ZAF104 series is a small size marine salty proof cctv camera housing. Its surface can add anti-corrosion painting, which is widely for industry more aggressive area, like marine, chemical factory, ocean shipping, offshore platform.

     ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF105 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. ZAF104 serise adopts 12mm thickness tempered window glass, which is fit for indoor /outdoor mounting. ZAF104 series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF104 camera housing inner Size: 220*65*65mm, net weight: 4.5KG.  98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

     Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing  Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing

    Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing Applications:



    With stringent certifications, explosion proof CCTV camera housing enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Data sheet:

    ZAF104
    Crust stainless steel 304/ 316L
    Explosion proof marking Exd II BT6 & DIP A20, TA, T6
    Explosion proof certification CNEx13.2140
    IP rated IP68
    Power input AC85-265V, AC24V
    cable output  2 sets G3/4 or NPT3/4
    Window glass Strong temperared glass
    working temperature

    -25~65°C

    optional:-50~65°C

    Netweight 4.5Kg
    max size  for camera 220*65*65 mm
    Overall dimension 336*140*145mm
    accessory

    wall bracket ZAZ104

    explosion proof Flexible tube D16*1000mm

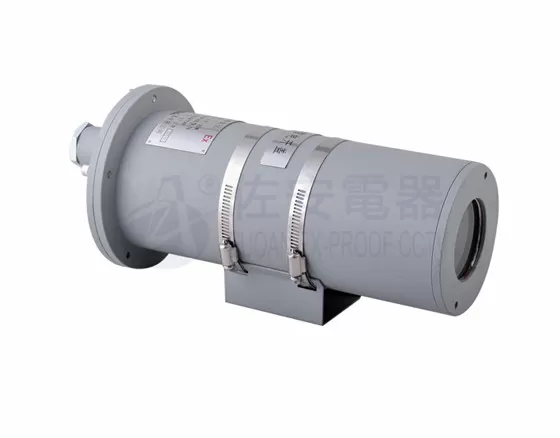

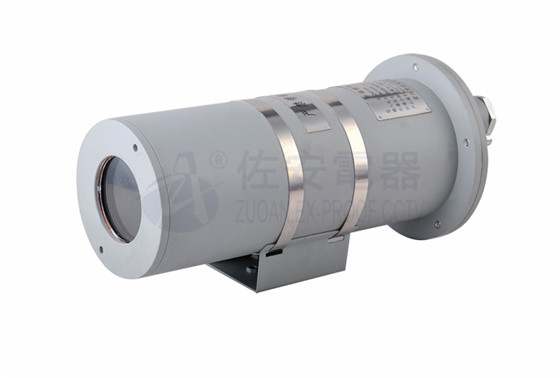

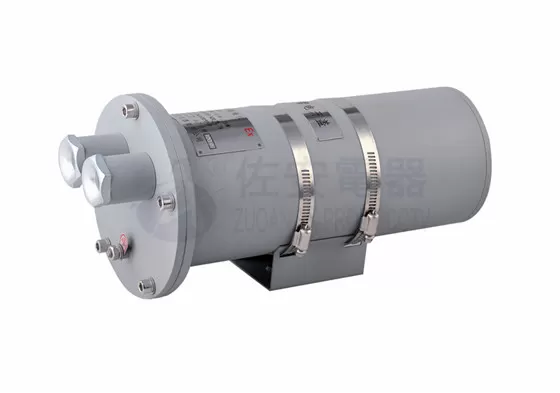

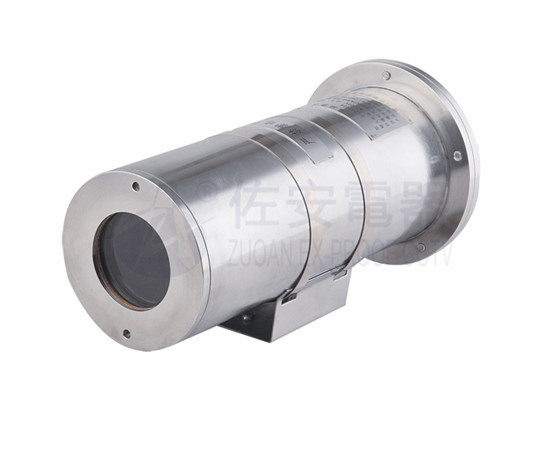

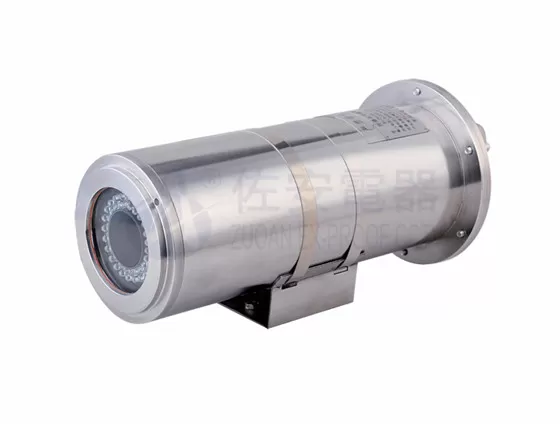

    Details images:

    Small Size Marine Salty Proof Stainless Steel 316L CCTV Camera Housing
