| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEX |
| Model Number: | ZAF105 |
| Price: | 0-600 USD |
| Packaging Details: | firm carton or wooden box |
| Delivery Time: | in stock |
| Payment Terms: | 100% TT before shipment |
| Supply Ability: | 1000 set per month |
| Ingress: | IP68 | Housing: | Stainless Steel 304/316L |
|---|---|---|---|
| Camera: | Analog Camera, Metwork Camera | Weight: | 5.5 KG |
| Optional: | Add Anti-corrosion Proof Painting | ||
| High Light: | salty resistant camera,corrosion proof camera,marine camera |
||

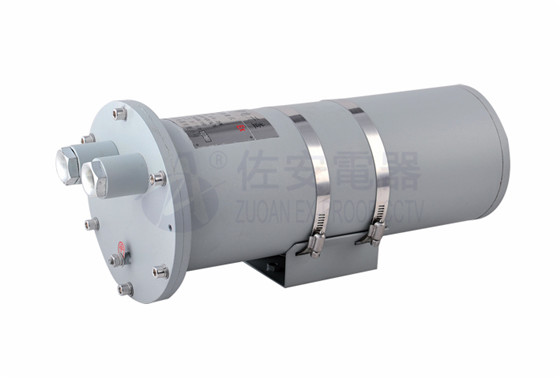

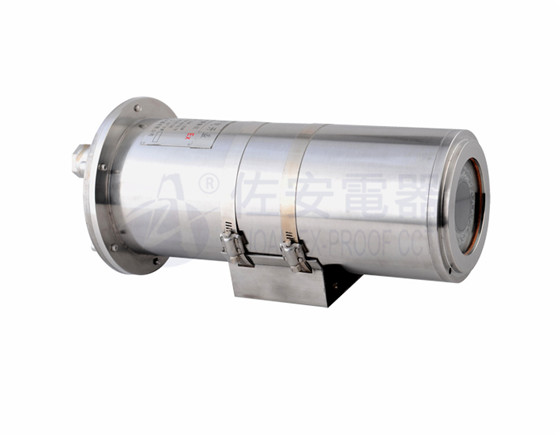

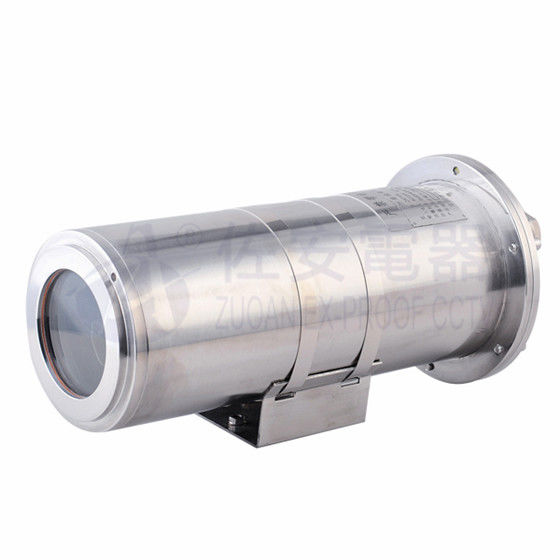

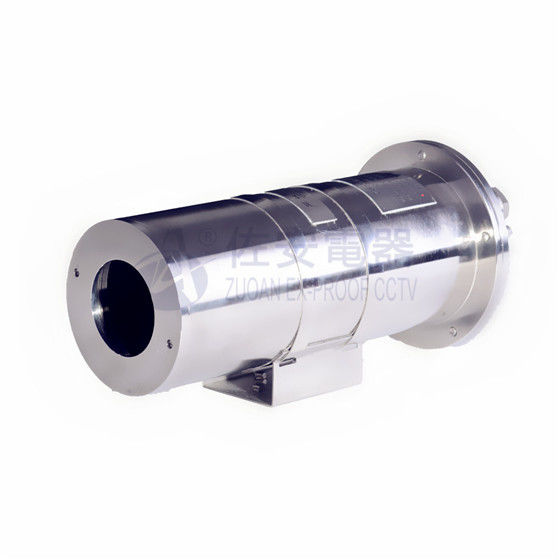

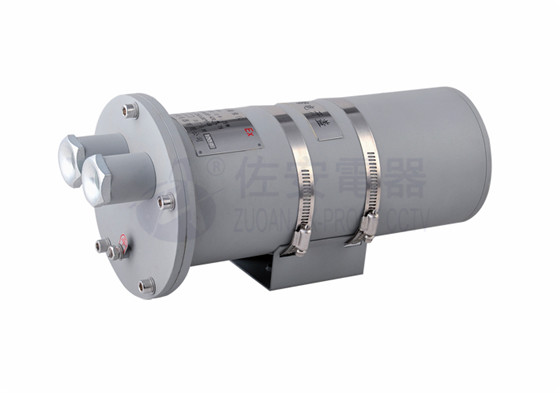

Marine Corrosion Proof Stainless Steel 316L CCTV Camera Housing
Main features:
Marine Corrosion Proof Stainless Steel 316L CCTV Camera Housing Description:
ZAF105 series is a middle sizes stainless steel cctv camera housing, which can apply for high salty area. its housing surface can add anti-corrosion painting. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF105 cctv camera housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. ZAF105 serise adopts 12mm thickness tempered window glass, which is fit for indoor /outdoor mounting. ZAF105 series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF105 camera housing inner Size: 260*80*80mm, net weight: 7KG 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.
Applications:
With stringent certifications, explosion proof cctv camera housing enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Data sheet:
| ZAF105 | |
| Crust | stainless steel 304/ 316L |
| Explosion proof marking | Exd II BT6 & DIP A20, TA, T6 |
| Explosion proof certification | CNEx13.2138 |
| IP rated | IP68 |
| Power input | AC85-265V, AC24V |
| cable output | 2 sets G3/4 or NPT3/4 |
| Window glass | Strong temperared glass |
| working temperature |
-25~65°C optional:-50~65°C |
| Netweight | 7Kg |
| max size for camera | 260*80*80 mm |
| Overall dimension | 329*169*173MM |
| accessory |
wall bracket ZAZ100B explosion proof Flexible tube D16*1000mm |
Details images:
