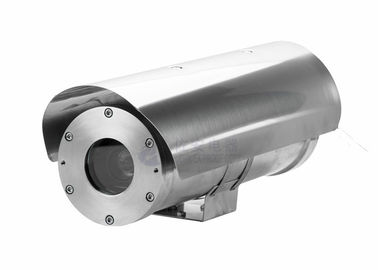

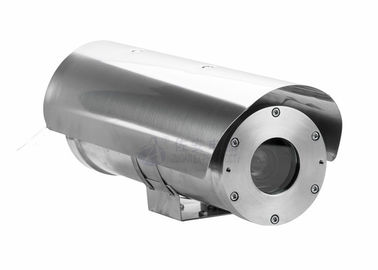

CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade

CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade

    • CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade
    • CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade
    • CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade
    • CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade
    • CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade
  • CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade

    Product Details:

    Place of Origin: China
    Brand Name: ZA
    Certification: ATEX, IECEX,
    Model Number: CZ100-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 500-1000USD per set
    Packaging Details: carbon boxes
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 200 pcs per month
    Contact Now
    Detailed Product Description
    Certified: ATEX, IECEx Material: Stainless Steel 304, 316L
    IP: IP68 Input Voltage: 100~240V AC Or 24V AC
    Current: Max. 1.5A Sunshade: Yes
    Temperature: -40 ºC~+60 ºC Window: Toughened Glass
    Weight: 12.5kg Cable Entry: 2*gland Holes
    Camera: Box Camera, Bullet Camera, AHD Camera

    CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade





    Summary:



    CZ100 is manufacturred by ZUOAN company. CZ100 has two series models. One is CZ100-A, the ATEX Camera housing with wiper system. The other is CZ100-B, the ATEX camera housing with sunshade. The enclosure is bigger enough, which can load box camera, bullet camera, AHD camera, and zoom camera.

    CZ100-B inner usable area for camera is: 250*75*75mm.



    CZ100-B is made of stainless steel 304 and 316L. Its window adopts toughened glass. It also support window defroster, which for heavy frog or steam area. Explosion-proof Camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.



    At the end of rear flange, there are 2* cable entries for camera and power cable thread by.

    All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The CZ100-B explosion proof ATEX CCTV camera ingress protection level also reach to IP68(1.2m/45min).



    Client are all welcomed to offer your brand camera tous. We also perfer assembly client camera into this ATEX CCTV camera housing.



    Service Condition:



    • Atmosphere pressure: 80~120kPa
    • Ambient temperature: -40 ºC~+60 ºC
    • Relative humidity: no more than 95% (+25ºC);

    Download Data sheet:

    CZ100-AB data sheet[[EN][0.2].pdf



    CZ100-B Explosion Proof ATEX CCTV Camera Housing With SunshadeCZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade





    Specifications:



    CZ100-B
    Crust stainless steel 304/ 316L
    Explosion proof marking

    CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade Ⅱ2G Ex db ⅡC T6 Gb,

    CZ100-B Explosion Proof ATEX CCTV Camera Housing With SunshadeⅡ2D Ex tb ⅢC T80 ºC Db

    Explosion proof certification ATEX, IECEx, CE
    Standards

    EN60079-0: 2012+A11: 2013,

    EN60079-1: 2014, EN60079-31: 2014

    IEC60079-0: 2011, IEC60079-1: 2014,

    IEC60079-31: 2013

    Hazardous Area

    zone 1, 2

    (IIA, IIB, IIC, T1~T6 gases, vapors and air may exist)

    zone 20, 21

    (explosive dust may exist)

    IP rated IP68 (1.2m/45min)
    Atmosphere pressure 80~110kPa
    Relative humidity no more than 95% (+25ºC)
    Power input AC100-240V, or AC24V
    cable output 2 cable entries
    Window glass Strong temperared glass
    working temperature -40°C~60°C
    Netweight 12.5Kg
    Overall dimension 524*179*215mm
    accessory sunshiled
    camera all brand analogue and network camera





    CZ100-B ATEX CCTV Camera Drawings:

    CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade



    CZ100 ATEX CCTV Camera Accessories:

    CZ100-B Explosion Proof ATEX CCTV Camera Housing With SunshadeCZ100-B Explosion Proof ATEX CCTV Camera Housing With SunshadeCZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade

                 wall bracket                              mount adapter                   Ex flexible tube
