CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade

Name: CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade
Brand: CHANGZHOU ZUOAN ELETRONICS CO., LTD.
SKU: CZ100-B
Price: 750.00 USD
Availability: InStock

Brand Name:	ZUOAN
Model Number:	CZ100-B
MOQ:	1 set
Price:	500-1000USD per set
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ATEX, IECEx, CNEx

Certified:

ATEX, IECEx

Material:

Stainless Steel 304, 316L

IP:

IP68

Input Voltage:

100～240V AC Or 24V AC

Current:

Max. 1.5A

Sunshade:

Yes

Temperature:

-40 ºC～+60 ºC

Window:

Toughened Glass

Weight:

12.5kg

Cable Entry:

2*gland Holes

Camera:

Box Camera, Bullet Camera, AHD Camera

Packaging Details:

carbon boxes

Product Description

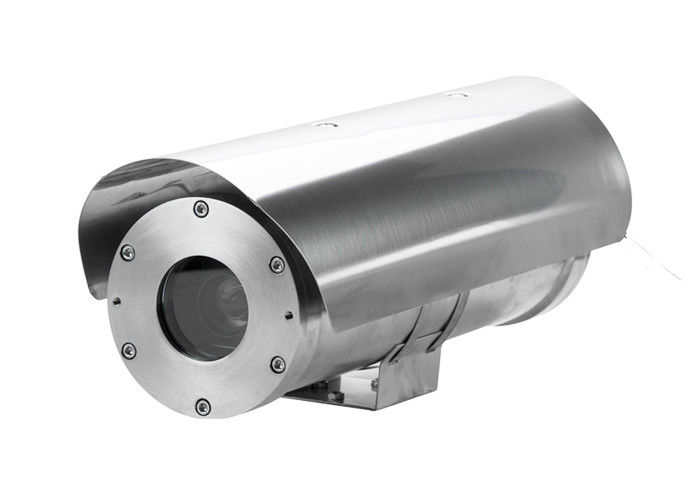

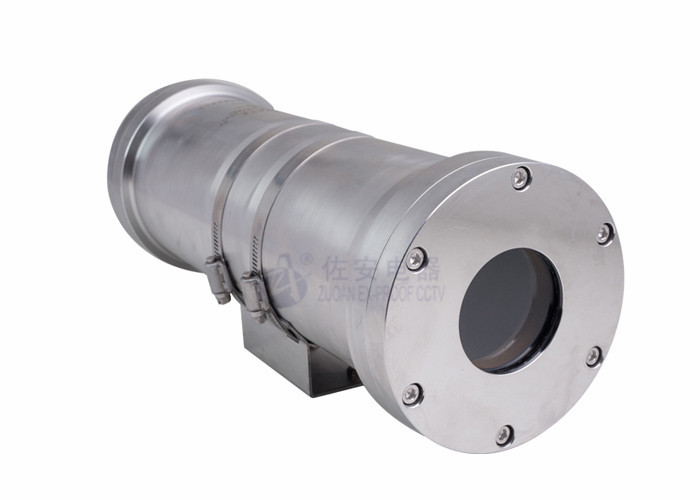

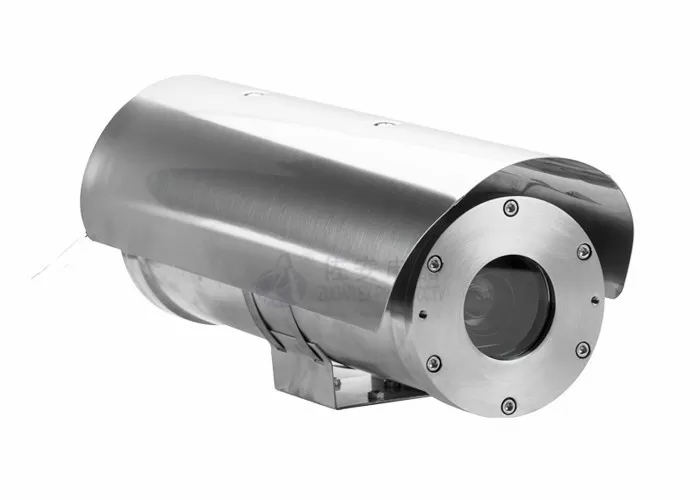

CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade

Summary:

CZ100 is manufacturred by ZUOAN company. CZ100 has two series models. One is CZ100-A, the ATEX Camera housing with wiper system. The other is CZ100-B, the ATEX camera housing with sunshade. The enclosure is bigger enough, which can load box camera, bullet camera, AHD camera, and zoom camera.

CZ100-B inner usable area for camera is: 250*75*75mm.

CZ100-B is made of stainless steel 304 and 316L. Its window adopts toughened glass. It also support window defroster, which for heavy frog or steam area. Explosion-proof Camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.

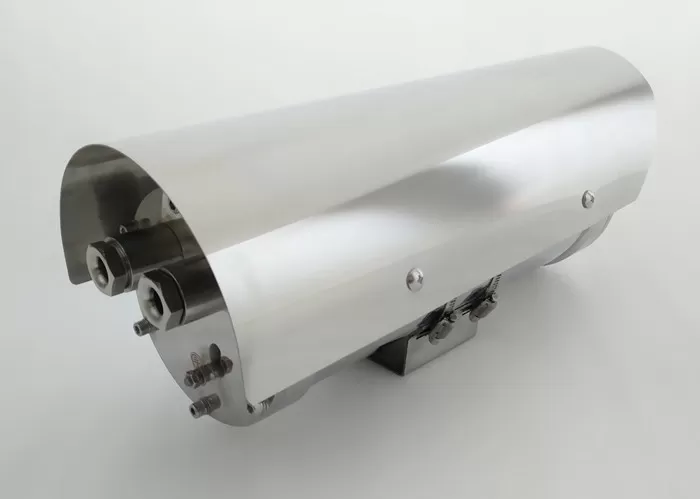

At the end of rear flange, there are 2* cable entries for camera and power cable thread by.

All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The CZ100-B explosion proof ATEX CCTV camera ingress protection level also reach to IP68(1.2m/45min).

Client are all welcomed to offer your brand camera tous. We also perfer assembly client camera into this ATEX CCTV camera housing.

Service Condition:

Atmosphere pressure: 80～120kPa
Ambient temperature: -40 ºC～+60 ºC
Relative humidity: no more than 95% (+25ºC)；

Download Data sheet:

CZ100-AB data sheet[[EN][0.2].pdf

Specifications:

CZ100-B
Crust	stainless steel 304/ 316L
Explosion proof marking	Ⅱ2G Ex db ⅡC T6 Gb, Ⅱ2D Ex tb ⅢC T80 ºC Db
Explosion proof certification	ATEX, IECEx, CE
Standards	EN60079-0: 2012+A11: 2013, EN60079-1: 2014, EN60079-31: 2014 IEC60079-0: 2011, IEC60079-1: 2014, IEC60079-31: 2013
Hazardous Area	zone 1, 2 (IIA, IIB, IIC, T1~T6 gases, vapors and air may exist) zone 20, 21 (explosive dust may exist)
IP rated	IP68 (1.2m/45min)
Atmosphere pressure	80～110kPa
Relative humidity	no more than 95% (+25ºC)
Power input	AC100-240V, or AC24V
cable output	2 cable entries
Window glass	Strong temperared glass
working temperature	-40°C~60°C
Netweight	12.5Kg
Overall dimension	524179215mm
accessory	sunshiled
camera	all brand analogue and network camera

CZ100-B ATEX CCTV Camera Drawings:

CZ100-B Explosion Proof ATEX CCTV Camera Housing With Sunshade 4

CZ100 ATEX CCTV Camera Accessories:

wall bracket mount adapter Ex flexible tube

Special order/ requirements
