|Place of Origin:||China|
|Certification:||ATEX, IECEx, CNEx|
|Minimum Order Quantity:||1 set|
|Packaging Details:||firm carton or wooden box|
|Delivery Time:||in stock|
|Payment Terms:||100% TT before shipment|
|Supply Ability:||1000 set per month|
|price term:||EXW price|
|Type:||Digital Camera||Style:||Box Camera|
|Sensor:||CMOS||Technology:||Pan / Tilt / Zoom|
|Housing:||Stainless Steel316L||Camera:||1080P,32X Optical|
|Weight:||23KG||Pan And Tilt:||360 Degree Auto Tracking|
|Preset Patrol:||128 Points|
1080P Full HD 32x ATEX Auto Tracking Stainless Steel 316L Explosion Proof PTZ Camera
·CNEx , ATEX certificated
·stepping motor drive
·Adopts stainless steel 304/ 316L
·Surface finish: electropolished or corrosion resistant paint finish
· cable gland
·Tempered glass with nanometer paint film for visiable light camera
Germanium front window for thermal imaging camera
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

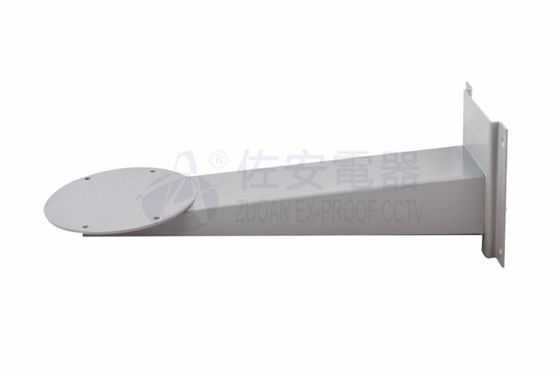

·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Camera: SONY, SAMSUNG, Hikvision
·Telephoto limited speed: yes
·Variable angle: horizontal 360°, vertical ±90°
·Preset patrol: 256/ 128 points

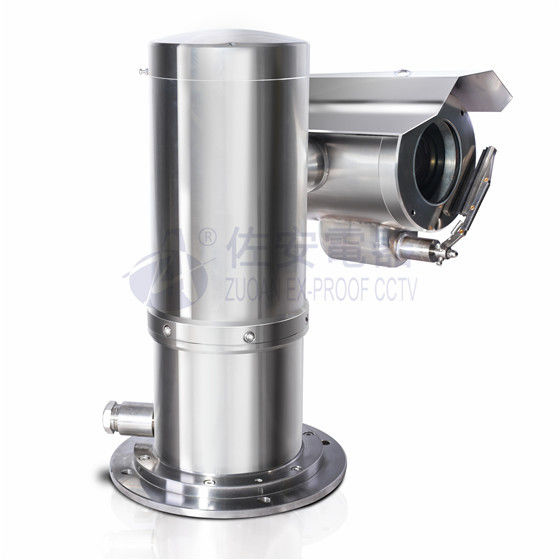

1080P Full HD 32x ATEX Auto Tracking Stainless Steel 316L Explosion Proof PTZ Camera Description:
If your security and surveillance needs include monitoring extreme, flammable, and explosive environments, marine corrosion environment, the ZUOAN CZ610-60 is built for your environment. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAT610corrosion proof CCTV housing regards as an integrated explosion proof video supervising system, which consists of explosion proof enclosure. infrared thermal imaging camera,germanium front window,wiper system, heater module, pan/tilt and decoder. The 316L, stainless steel housing is IP68 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.
Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with infrared array light for night vision.
1080P Full HD 32x ATEX Auto Tracking Stainless Steel 316L Explosion Proof PTZ CameraApplications:
With stringent certifications, explosion-proof CCTV housing cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
|Crust||stainless steel 316L|
1080P 32X optical zoom
color min 0.3lux
focal length: 4.44-146.2mm
|Explosion proof certified||
Ex Ⅱ2G Ex dⅡC T6 Gb, Ex t ⅢC T80℃ Db
|Running speed||Horizontal 0.1-30°/S, Vertical 0.1-15°/S|
|Running angle||horizontal 360 °, vertical ± 90°|
|preset point||128 points|
|function||auto scanning, auto cruise, keep watch|
|equipped||wiper system, sunshield,|
|power input||AC24V, AC220V, AC85-265V|
lower temperature type: -50~65°C
|Control||RS485, Pelco-D / Pleco-P|
