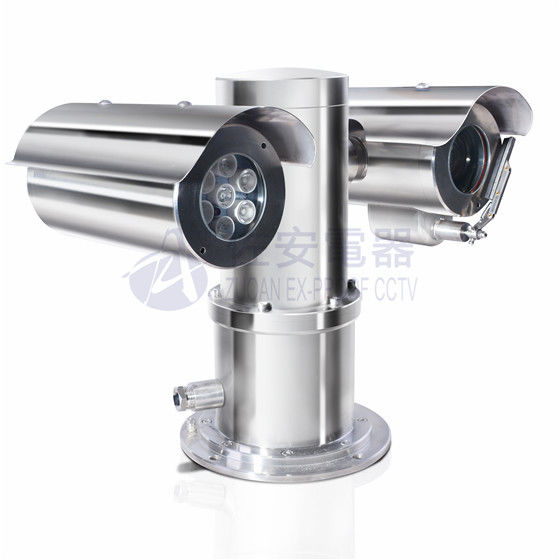

1.3MP 20X ATEX Auto Tracking Explosion Proof PTZ Camera With Infrared Light
Main features:
·CNEx certificated
·stepping motor drive
·Adopts stainless steel 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP67
· cable gland
·Tempered glass with nanometer paint film for visiable light camera
Germanium front window for thermal imaging camera
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication : Pelco-D/ Pelco-P/TCP/IP
·Communication rate: 2400~19200bps
··Output: AV/H.264/RJ45
·Control: RS-232/RS485
·Camera: SONY, SAMSUNG, thermal camera
·Telephoto limited speed: yes
·Variable angle: horizontal 360°, vertical ±90°
·Preset patrol: 256/ 128 points
Description:
CZ610 is featured as explosion proof ptz camera, which is integrared with infrared lights and wiper system. It is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAT610corrosion proof CCTV housing regards as an integrated explosion proof video supervising system, which consists of explosion proof enclosure. Its IP67 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.
Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with infrared array light for night vision.
Applications:
With stringent certifications, explosion proof ptz camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Data sheet:
| Model |
CZ610 |
| Crust |
stainless steel 304/ 316L |
| Camera type |
1.3MP, 20X optical zoom
color min 1.lux; B&W 0.1Lux
focal length:3.5-105mm
|
| Infraredlight |
0-20m, 20-60m, 60-100m |
| Explosion proof certified |
ExⅡ2G Ex dⅡC T6 Gb, Ex t ⅢC T80℃ Db
Exd II CT6 & DIP A20, TA, T6
|
| certification No. |
CNEx13.3111 |
| Weather proof |
IP67 |
| Running speed |
0.1-45°/S |
| Running angle |
horizontal 360 °, vertical ± 90° |
| preset point |
128 points |
| function |
auto scanning, auto cruise, keep watch |
| equipped |
wiper system, sunshield, |
| power input |
AC24V, AC220V, AC85-265V |
| operate temperature |
-25~65°C
lower temperature type: -50~65°C
|
| Control |
RS485, Pelco-D / Pleco-P |
| Signal output |
RJ45 |
| Netweight |
27Kg |
Details images:
