| Place of Origin: | China, Changzhou |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | ATEX, IECEx, CNEx |
| Model Number: | CZ100 |
| Minimum Order Quantity: | 1 unit |
| Price: | USD 600-850 per set |
| Packaging Details: | firm carton box for 1 unit |
| Delivery Time: | 5-8 work days |
| Payment Terms: | D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal |
| Supply Ability: | 50set per week |
| Type: | ATEX CCTV Camera | Certificate: | Explosion Proof |
|---|---|---|---|
| Material: | Stainless Steel 304, 316L | Resolution: | 2 Megapixel HD |
| Camera: | Bullet Camera | Lens: | Auto Iris Manual Focusing |
| Power: | AC24V, DC12V, POE | Min Illumination: | Color 0.01lux, BW 0.001lux |
| Image Sensor: | 1/2.8" Progressive Scan CMOS | Day& Night: | Auto IR Cut Filter |
| WDR: | 120dB | Digital Noise Reduction: | 3D DNR |
| Backlight Compensation: | Yes, Zone Optional | Connector: | RJ45 |
| Temperature: | -40 To 60 ℃ |

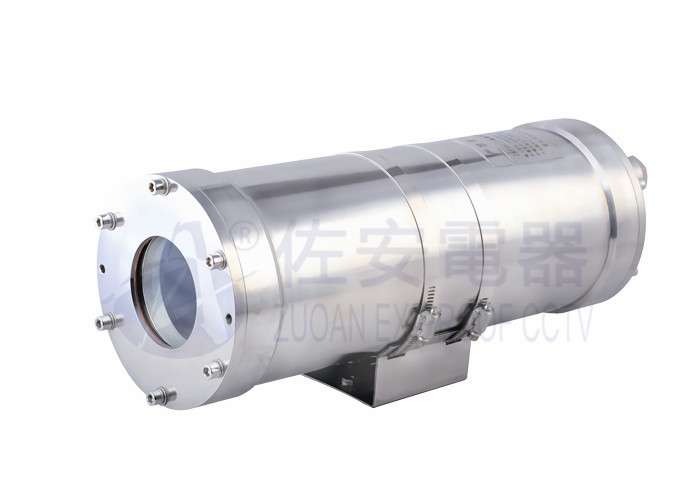

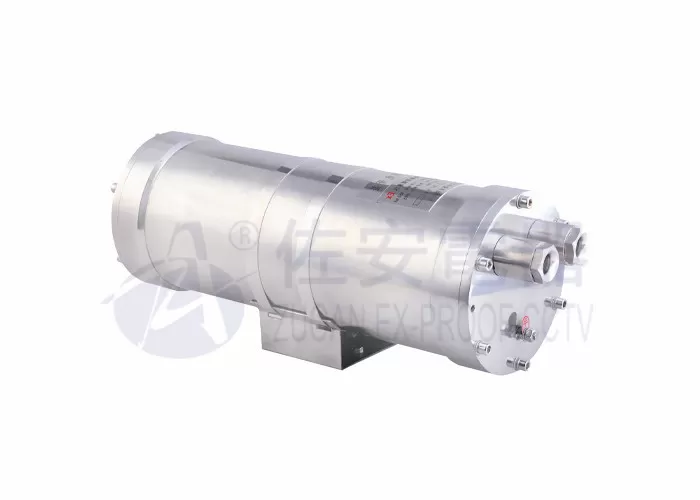

Explosion proof ATEX CCTV Camera in Stainless Steel Megapixel-HD Bullet Enclosure
ATEX CCTV camera summary:

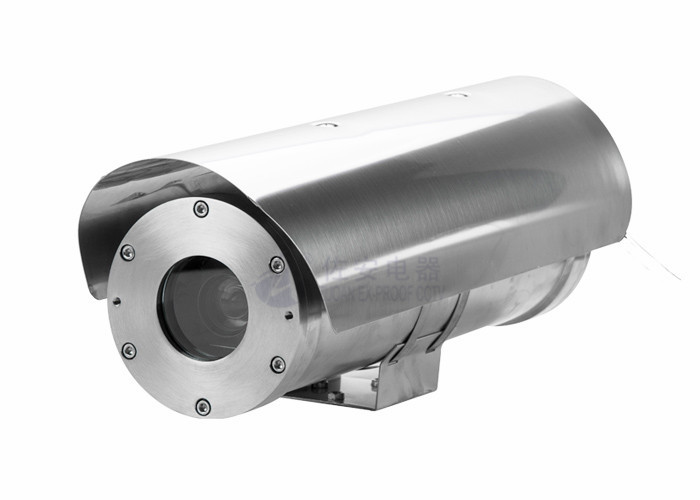

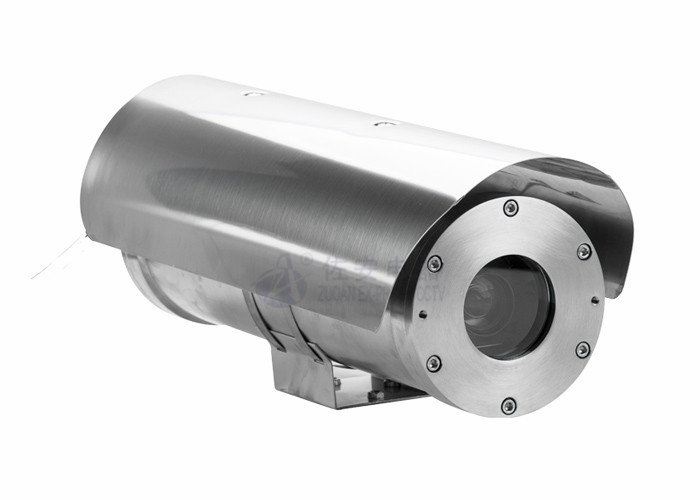

CZ100 is Zuoan 2017 year new developed ATEX CCTV camera. It has get the ATEX, IECEx explosion proof certificate, which is fit for gas zone 1, zone 2, and dust zone 21,22. ATEX CCTV camera has reach to 2 megapixel-HD resolution, and its lens is manual focus type. It is ready to use bullet camera into the stainless steel enclosure. ATEX CCTV camera can support different voltage input, such as 220V, 110V, 85-265V, AC24V, DC12V or POE power supply. ATEX CCTV camera can also equipped with sunshiled and wiper system for heavy polluted area.
ATEX CCTV camera features:
ATEX CCTV camera application:
ATEX CCTV camera is fit for hazardous area, hazardous location or explosive atmospheres, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area.
ATEX CCTV camera specifications:
Explosion Proof CCTV Camera Data sheet:
| CZ100 | |
| Crust | stainless steel 304/ 316L |
| Explosion proof marking |
CNEx: Exd II CT6 & DIP A20, TA, T6 |
| IP rated | IP68 |
| Power input | AC85-265V, AC24V, DC12V, POE power supply |
| cable output | 2 sets G3/4 or NPT3/4 |
| Window glass | Strong temperared glass |
| working temperature |
-40~60°C |
| Netweight | 9.5Kg |
| Overall dimension | 524*176*208mm |
| Optional | wiper, sunshiled |
| Camera | 2MP, 2.8-12mm varifocus lens |
| Min illumination | color 0.01lux, BW 0.001lux |
| Feature |
120 dB WDR, 3D DNR & DWDR, Backlight compensation, reset, hearbeat, mirror, PTZ control |
| Connector | RJ45 |
ATEX CCTV Camera Accessories:
ZAZ100B wall bracket Ex connector Ex DVR, NVR box
ATEX CCTV Camera Solution:
