Stainless Steel Explosion Proof Enclosure for DVR, NVR, Network Switch

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAJ340
Minimum Order Quantity: 1 set
Price: 0-300USD
Packaging Details: firm carton
Delivery Time: in stock
Payment Terms: 100% TT
Supply Ability: 1000 set per month
Ingress: IP65 Enclosure: Carbon Steel Or Stainless Steel 304/316L
Cable Hole: 12 Sets Of G3/4 (NPT3/4) Explosion Proof Enclosure: To Load DVR, NVR, Network Switch

Stainless Steel Explosion Proof Enclosure for DVR, NVR, Network Switch

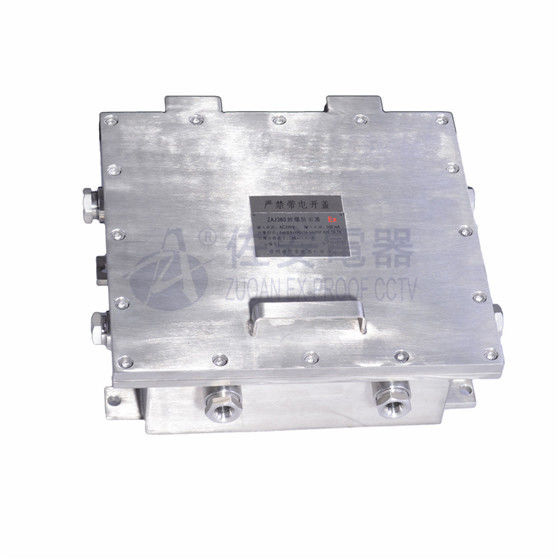

Main features:Stainless Steel Explosion Proof Enclosure for DVR, NVR, Network Switch 0

Pressure: 80KPa~106KPa
Ambient temperature: –25°C~+60°C
Relative humidity: less than 95%(+25°C)
Ex-proof marking: ExdⅡCT6/DIP A20 TA, T6
Enclosure degree: IP65
Working voltage: AC85~265V, AC220V
Wiring mouth: 12 sets *G3/4  (or NPT3/4)
Inner size: 424*404*192mm
Overall dimension: 516*487*252mm
Explosion proof enclosure can load DVR, NVR, Power converter, Network switch



Descirption:

The ZAJ340 Explosion Proof  enclosure for DVR, NVR, Decoder can controll explosion proof camera and pan/tilt according to the demand of the main engine. The explosion proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the circumstances of volatile gas, such as hydrogen(H2)and hydrocarbon gas in the plants(expect C2H2). The exterior is concise.



Stainless Steel Explosion Proof Enclosure for DVR, NVR, Network Switch Applications:

With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



Data sheet:

Model ZAJ340
crust carbon steel, stainless steel 304/316L
explosion proof marking Exd II CT6 &DIP A20, TA, T6
explosion proof certification CNEx11.0050
application gas zone 1, zone 2, dust zone 20, 21, 22
IP rated IP65
can load DVR / NVR / power adaptor /network switch
water seal O-ring Yes
cable threaded hole  12 sets G3/4  (or NPT3/4)
Net weight 57Kg
Overall dimension 516*487*252mm
Inner installation dimension 424*404*192mm



Technical Drawings:

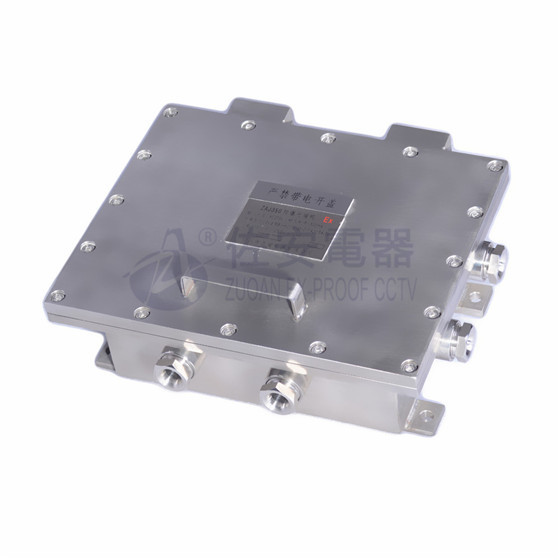

Stainless Steel Explosion Proof Enclosure for DVR, NVR, Network Switch 1

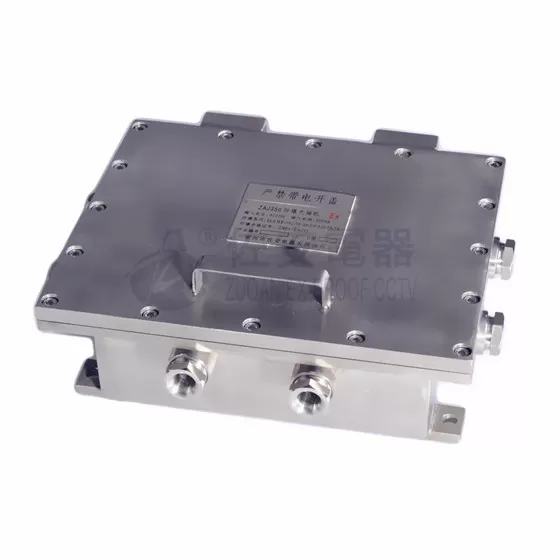

Stainless Steel Explosion Proof Enclosure for DVR, NVR, Network Switch 2

Other products:

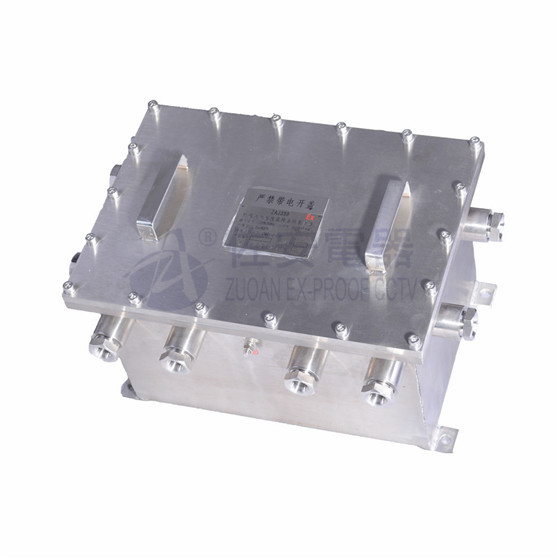

Stainless Steel Explosion Proof Enclosure for DVR, NVR, Network Switch 3
