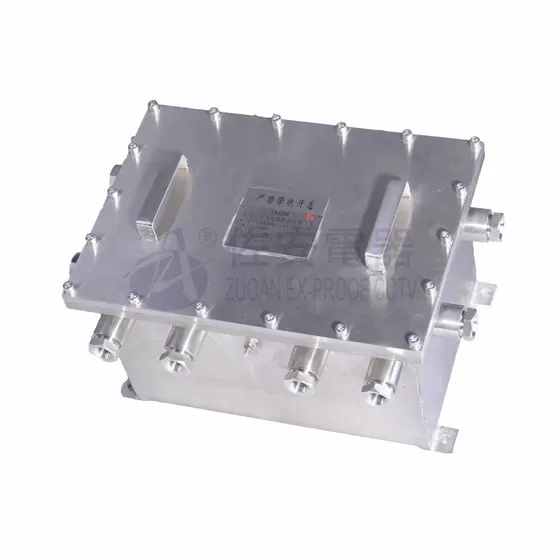

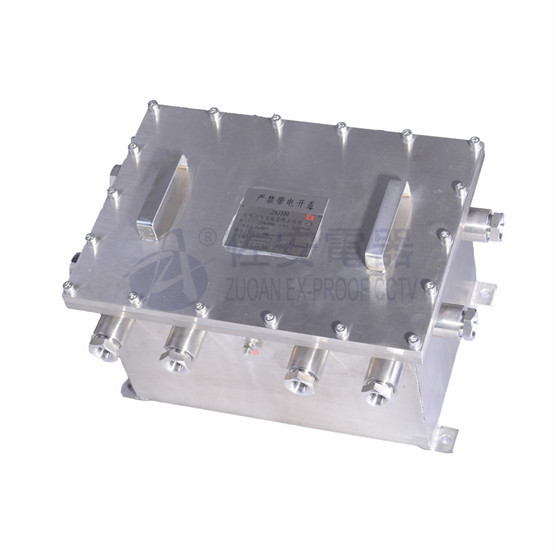

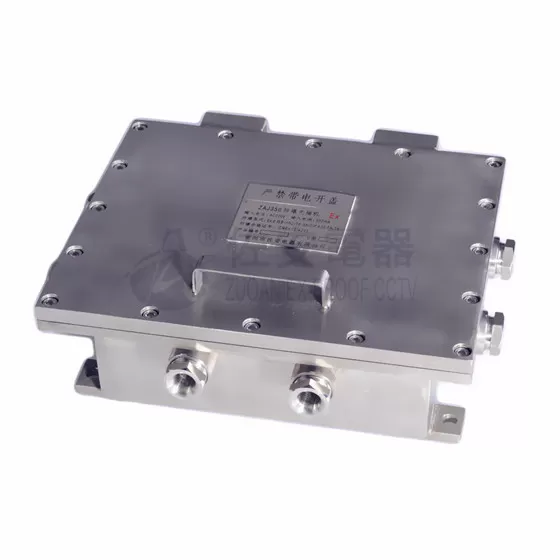

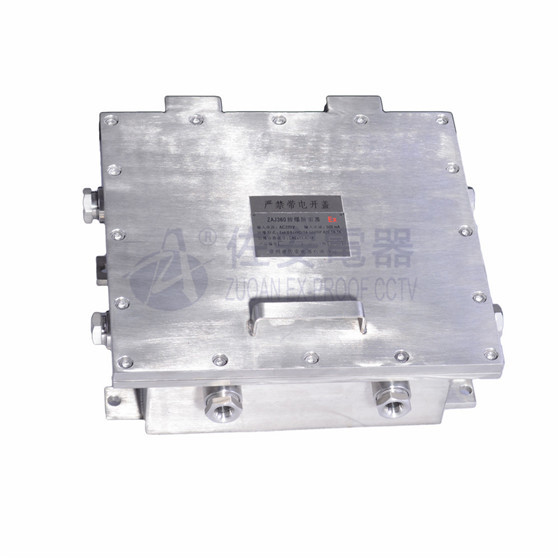

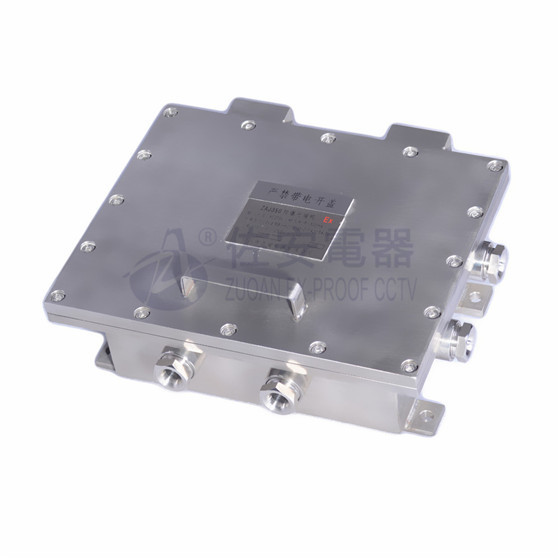

IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area

IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area

    • IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area
    • IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area
    • IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area
    • IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area
  • IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAJ360

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-300USD
    Packaging Details: firm carton
    Delivery Time: in stock
    Payment Terms: 100% TT
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Ingress: IP66 Enclosure: Stainless Steel 304/316L
    Cable Hole: 6 Sets Of G3/4 (NPT3/4) Explosion Proof Enclosure: To Load Power Converter, Surge Protect Device

    IP66 Stainless Steel Explosion Proof Enclosure For  Industry Hazardous Area



    Main features:IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area

    Pressure: 80KPa~106KPa
    Ambient temperature: –40°C~+65°C
    Relative humidity: less than 95%(+25°C)
    Ex-proof marking: ExdⅡB(H2)T6/DIP A20 TA, T6
    Enclosure degree: IP66
    Working voltage: AC85~265V, AC220V
    Wiring mouth: 6 sets *G3/4  (or NPT3/4)



    Descirption:

    The ZAJ360 Explosion Proof  enclosure for DVR, NVR, Decoder can controll explosion proof camera and pan/tilt according to the demand of the main engine. The explosion proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the circumstances of volatile gas, such as hydrogen(H2)and hydrocarbon gas in the plants(expect C2H2). The exterior is concise.



     Applications:

    With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    data sheet for explosion proof box ZAJ360.pdf



    Data sheet:

    Model ZAJ360
    crust carbon steel, stainless steel 304/316L
    explosion proof marking Exd II B(H2)T6 &DIP A20, TA, T6
    explosion proof certification CNEx13.4244
    application gas zone 1, zone 2, dust zone 20, 21, 22
    IP rated IP66
    can load DVR / NVR / power adaptor /network switch
    water seal O-ring Yes
    cable threaded hole  6 sets G3/4  (or NPT3/4)
    Net weight 17.1Kg
    Overall dimension 342*248*119mm
    Inner installation dimension 220*160*76mm





    Technical Drawings:

    IP66 Stainless Steel Explosion Proof Enclosure For Industry Hazardous Area
