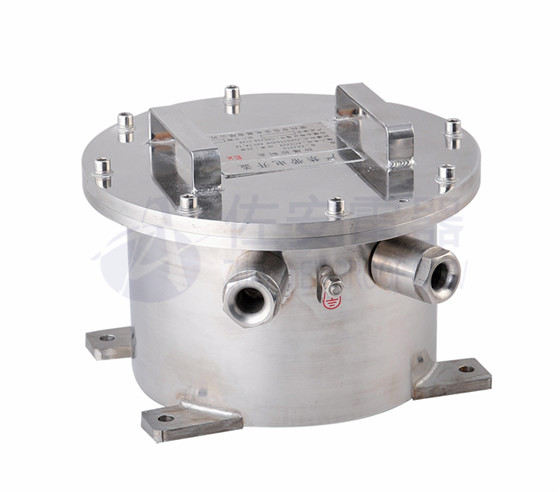

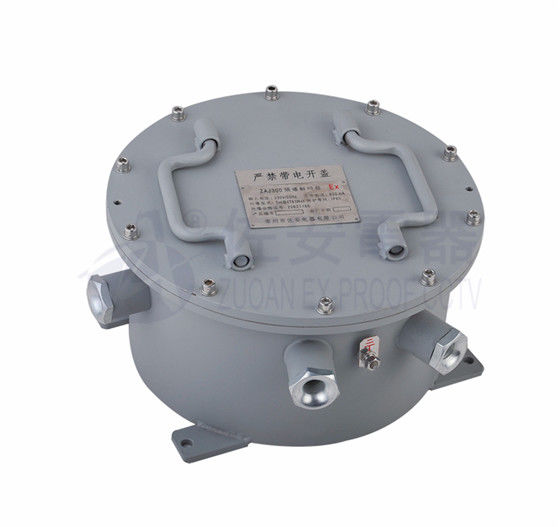

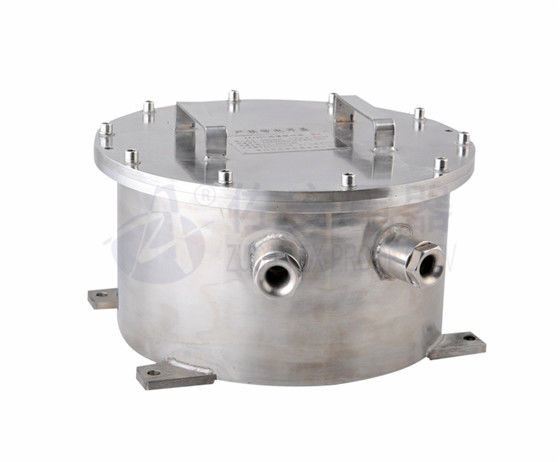

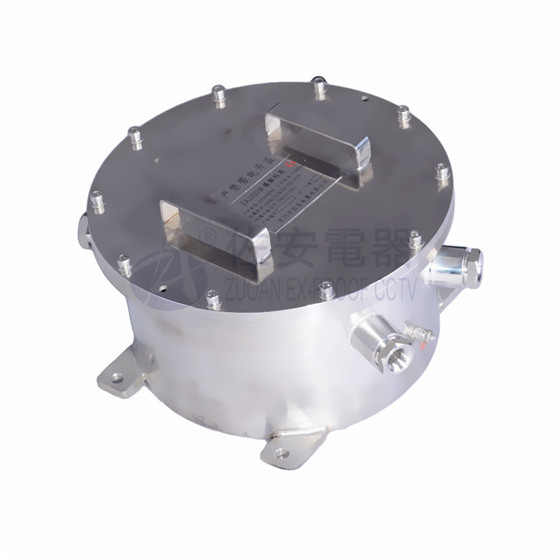

ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter

ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter

    • ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter
    • ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter
    • ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter
    • ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter
  • ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX, ATEX
    Model Number: ZAJ300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-300USD
    Packaging Details: firm carton
    Delivery Time: in stock
    Payment Terms: 100% TT
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Ingress: IP68 Enclosure: Stainless Steel 304/316L
    Cable Hole: 4 Sets Of G3/4 (NPT3/4)

    ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter





    ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter

    Main features:

    Pressure: 80KPa~106KPa
    Ambient temperature: –40°C~+65°C
    Relative humidity: less than 95%(+25°C)
    Ex-proof marking: ExdⅡCT6/DIP A20 TA, T6
    Enclosure degree: IP65
    Working voltage: AC85~265V
    Wiring mouth: 4 access
    Overall dimension: 326*326*161mm
    Explosion proof enclosure can load fiber converter, power converter, surge protect device



    Descirption:

    ZAJ300, ATEX Explosion Proof  enclosure can loadiber converter, power converter, surge protect device. The explosion proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the circumstances of volatile gas, such as hydrogen(H2)and hydrocarbon gas in the plants(expect C2H2). The exterior is concise.



     Applications:

    With stringent certifications, exlosion proof enclsoure can load fiber converter, power conveter or surge protect device. It is widely  for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    ZAJ300 explosion proof box data sheet.pdf



    Data sheet:

    Model ZAJ300
    crust carbon steel, stainless steel 304/316L
    explosion proof marking Exd II CT6 &DIP A20, TA, T6
    explosion proof certification CNEx13.4246
    application gas zone 1, zone 2, dust zone 20, 21, 22
    IP rated IP68
    can load power adaptor /surge protect device, optical converter, decoder
    water seal O-ring Yes
    cable threaded hole  4sets G3/4  (or NPT3/4)
    Net weight 14.7Kg
    Overall dimension 326*326*161mm
    Inner installation dimension 234*234*119mm






    Technical Drawings:

    ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter
