Carbon Steel Flameproof Exd Box Explosion Proof Enclosure For Optical Fiber Converter

Name: Carbon Steel Flameproof Exd Box Explosion Proof Enclosure For Optical Fiber Converter
Brand: ZUOAN ELECTRIC APPLIANCE CO., LTD.
SKU: ZAJ310
Price: 300 USD
Availability: InStock

Brand Name:	ZUOAN
Model Number:	ZAJ310
MOQ:	1 set
Price:	0-300USD
Payment Terms:	100% TT
Supply Ability:	1000 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNEX

Ingress:

IP68

Enclosure:

Stainless Steel 304/316L

Cable Hole:

4 Sets Of G3/4

Packaging Details:

firm carton

Product Description

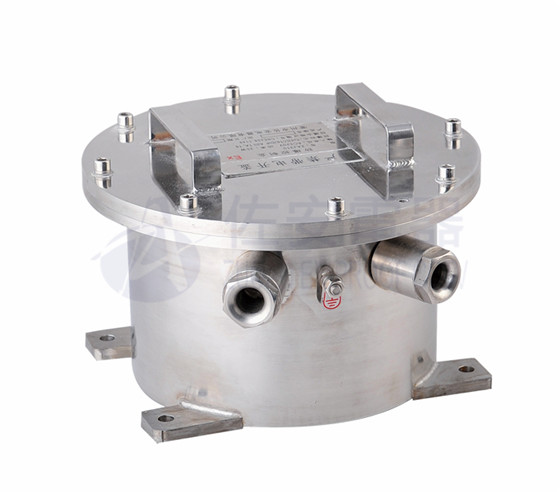

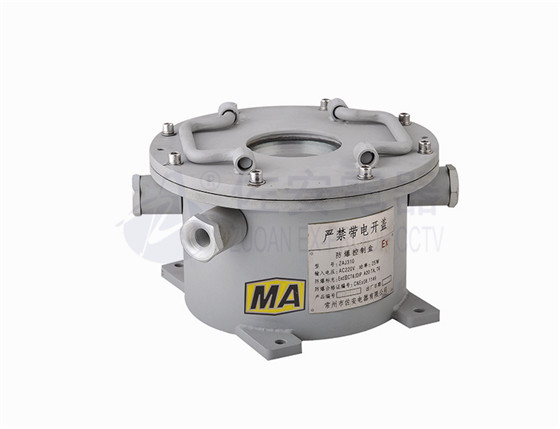

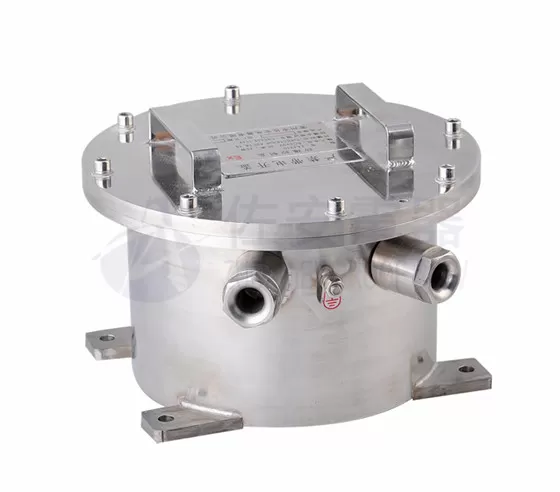

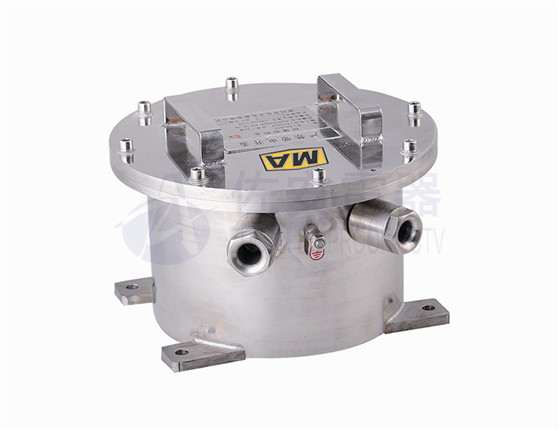

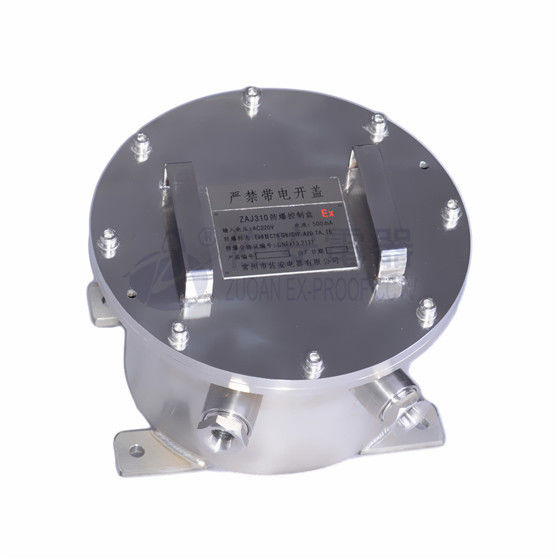

Flameproof Exd Box Explosion Proof Enclosure For Optical Fiber Converter

Carbon Steel Flameproof Exd Box Explosion Proof Enclosure For Optical Fiber Converter 0

Main features:

Pressure: 80KPa~106KPa
Ambient temperature: –25°C~+60°C
Relative humidity: less than 95%(+25°C)
Ex-proof marking: ExdⅡCT6/DIP A20 TA, T6
Enclosure degree: IP68
Working voltage: AC85~265V
Wiring mouth: 4 access
Overall dimension: 260*260*152mm
Explosion proof enclosure can load optical fiber converter, power converter

Descirption:

The ZAJ310 Explosion Proof enclosure can load.optical fiber converter, power converter. The explosion proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the circumstances of volatile gas, such as hydrogen(H2)and hydrocarbon gas in the plants(expect C2H2). The exterior is concise.

Applications:

With stringent certifications, explosion proof enclosure is fit for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

Data sheet:

Model	ZAJ310
crust	carbon steel, stainless steel 304/316L
explosion proof marking	Exd II CT6 &DIP A20, TA, T6
explosion proof certification	CNEx13.2137
application	gas zone 1, zone 2, dust zone 20, 21, 22
IP rated	IP68
can load	power adaptor, optical converter, surge protec device
water seal O-ring	Yes
cable threaded hole	4sets G3/4 (or NPT3/4)
Net weight	7.4Kg
Overall dimension	260260159mm
Inner installation dimension	888853mm

ZAJ310 explosion proof enclosure for power module.pdf

Technical Drawings:

Carbon Steel Flameproof Exd Box Explosion Proof Enclosure For Optical Fiber Converter 1
