CNEX Heavy Duty Explosion Proof Pan Tilt For CCTV Camera Housing

Name: CNEX Heavy Duty Explosion Proof Pan Tilt For CCTV Camera Housing
Brand: ZUOAN ELECTRIC APPLIANCE CO., LTD.
SKU: ZAY200B
Price: 1500 USD
Availability: InStock

Brand Name:	ZUOAN
Model Number:	ZAY200B
MOQ:	1 set
Price:	0-1500 USD
Payment Terms:	100% TT before shipment
Supply Ability:	1000 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNEX

Weather Proof:

IP68

Pan And Tilt Crust:

Stainless Steel 304 Or 316L

Explosion Proof Marking:

Exd II CT6 Gb/DIP A20 TA, T6

Pan:

360 Degree Auto Tracking

Tilt:

-90 To +60 Degree

Load Weight:

30kg

Weight:

20.3kg

Packaging Details:

firm carton or wooden box

Product Description

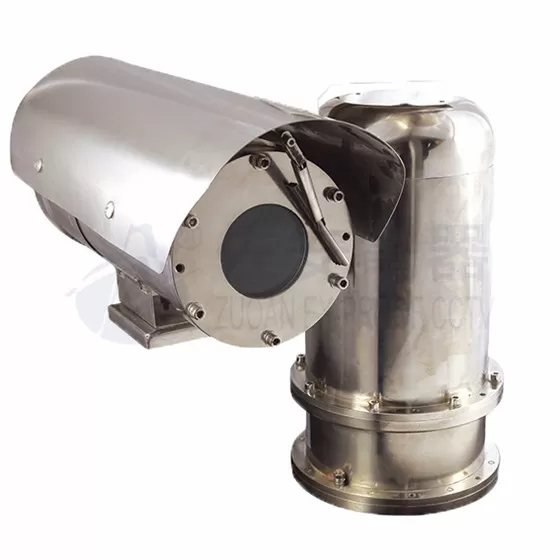

CNEX Heavy Duty Explosion Proof Pan Tilt For CCTV Camera Housing

Main features:

* CNEx certificated CNEX Heavy Duty Explosion Proof Pan Tilt For CCTV Camera Housing 0

* Adopts stainless steel 304, 316L
* IP68
* Explosion proof marking: Exd II CT6 Gb/ DIP A20 TA, T6

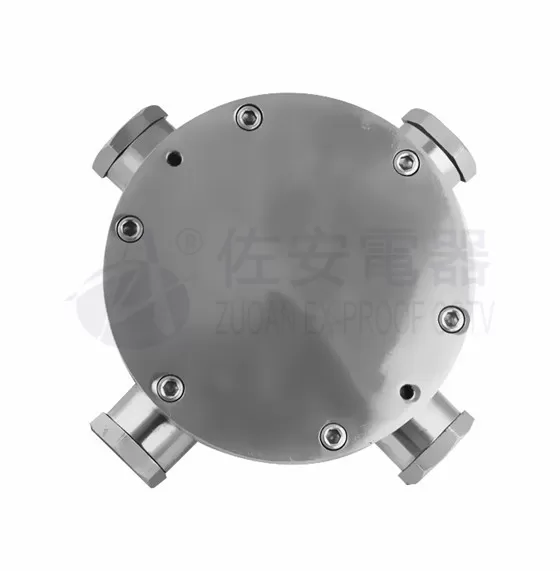

* Cable threaded hole: 2 sets of G3/4 (NPT 3/4)
* Installation: mounted on ceiling, or wall bracket
* Rotation angle: Horizontal 0-360 degree, Vertical -90 to + 60 degree
* Rotation speed: 6 ° per second
*Input voltage: AC220V , AC110V, AC24V
* Working current: ≤ 500mA

* Power: less than 50W

* Preset points: 64 sets

* Control : RS485, Pelco-D/P

* Video output: AV or RJ45
*Control: RS-232/RS485

* load weight: 30kg

* Net weight: 20.3kg

* Overall Dimension: 366*208*372mm

* Operation temperature: -25 to 65 °C ( -50 to 65°C)

* Can load : ZAF100A, ZAF100B, ZAF102, ZAFC106
·

CNEX Heavy Duty Explosion Proof Pan Tilt For CCTV Camera Housing Description:

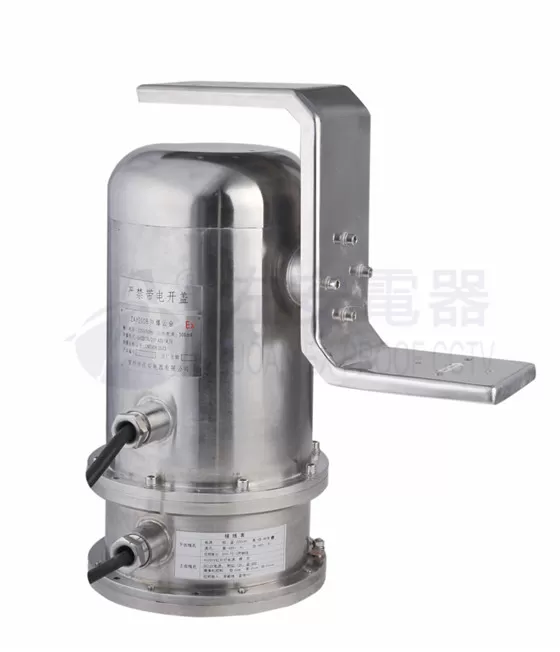

ZAY200B is featured as heavy duty explosion proof pan and tilt, which can load our explosion proof cctv camera housing (ZAF100A, ZAF100B, ZAF102, ZAFC106. ). It is a ecnomics composition to making 360 degree auto tracking surveillance in industry hazardous area.

ZAY200B explosion proof pan tilt, its crust is made of stainless steel 304 or stainless steel 316L. Its weather proof grade is IP68, fit for all kinds of weather condition. And ZAY200B has 64 sets preset points to do auto tracking. and lower temperature operation version is also avaible, it can reach as -50 to +65 degree centigrade.

CNEX Heavy Duty Explosion Proof Pan Tilt For CCTV Camera Housing Applications:

With stringent certifications, explosion proof ptz camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

Data sheet:

Model	ZAY200B
Crust	stainless steel 304/ 316L
Weather Proof	IP68
Explosion proof certified	CNEX: Exd II CT6 & DIP A20, TA, T6
certification No.	CNEx09.2523
Weather proof	IP69
Running speed	6°/S
Running angle	horizontal 360 °, vertical -90 to +60°
preset point	64 points
power input	AC24V, AC110V, AC220V,
operate temperature	-25~65°C lower temperature type: -50~65°C
Control	RS485, Pelco-D / Pleco-P
Signal output	AV/ RJ45
Net weight	20.3kg
Load weight	30kg
Overall dimension	366208372mm
working current	less than 500mA
Power	less than 50W

Details images:

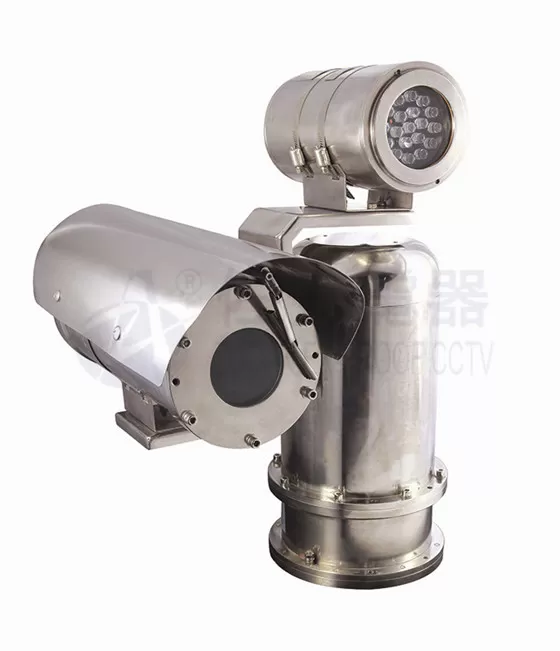

Composition way: ZAY200B + ZAF100A-M + ZAD500

ZAF100A-M, explosion proof camera housing with wiper system

Inner size for camera: 260*80*80mm

Equipped with Sunshiled, Wiper system

7.5kg

ZAD500, explosion proof Infrared lights for night vision

30m, 50m, 80m optional

5.1kg
