Auto Tracking Stainless Steel Explosion Proof Pan Tilt for Fix Camera Surveillance
Overview:

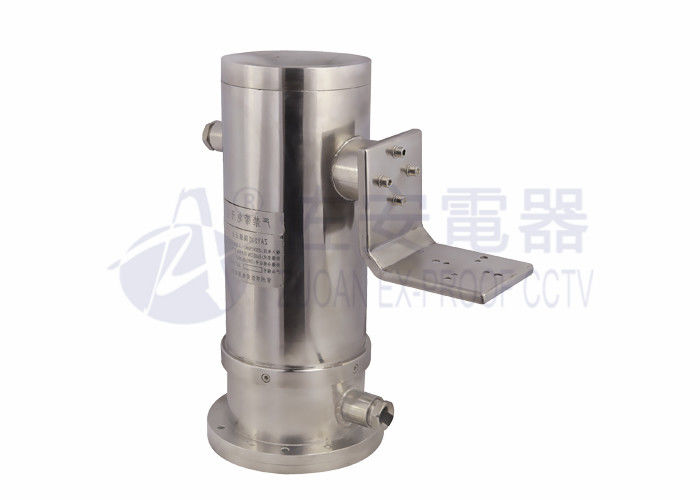

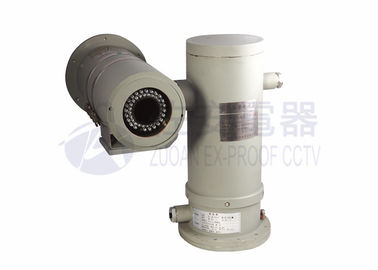

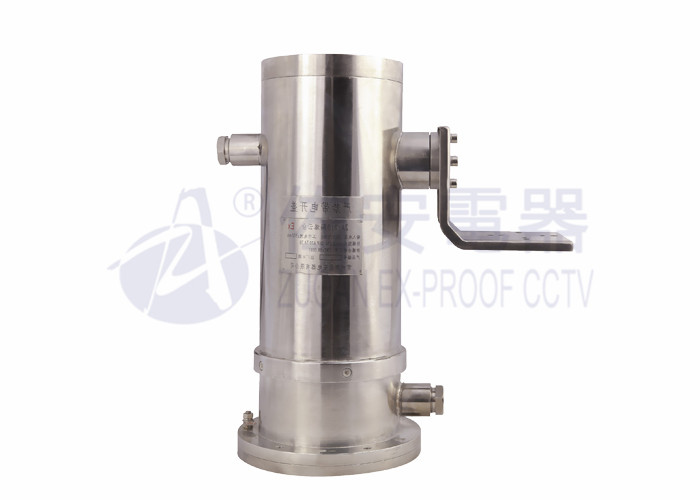

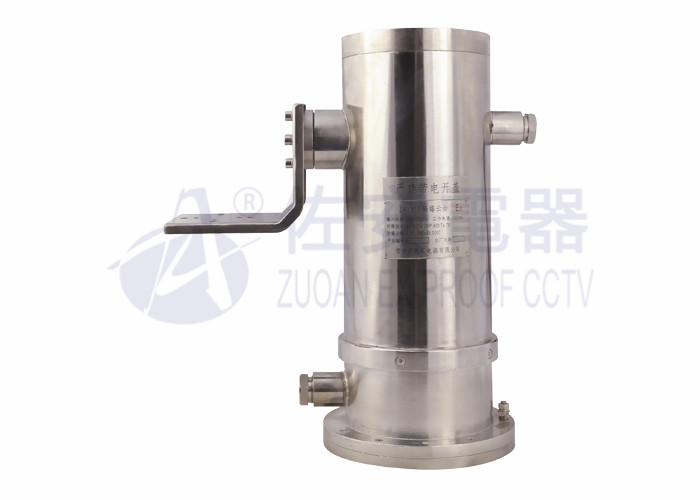

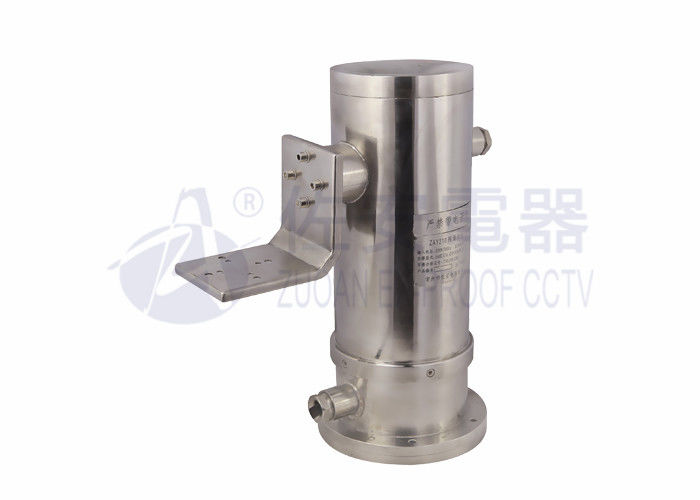

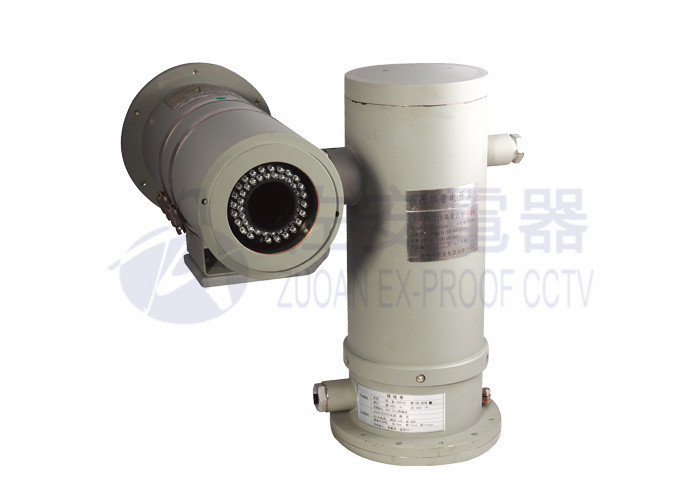

The ZAY210 is an explosion proof pan tilt, which is developed to load Zuoan fix explosion proof camera. The ZAY210 has get the double explosion proof certificate, which can fit for gas zone 1, zone 2, and dust zone 21, 22. Integrated with explosion proof pan tilt, the camera can realise 360 degree auto tracking. Made of stainless steel 304 or 316L, it is extremly resistant to water, dust, air pollution, salty and chemicals. The explosion proof pan tilt has analog and IP-based version, so as to fit various communication ways of video.
Its pan can realise 360 degree horizontal rotation, and tilt can realise -90 to +60 degree vertical rotation. The explosion proof pan tilt rotation speed is 6° per second. If you perfer economic choice to realise auto tracking PTZ camera, the ZAT210 explosion proof pan tilt with Zuoan fix explosion proof camera housing is your best choice.
Main Features:
* CNEx certificated
* Adopts stainless steel 304, 316L
* IP68
* Explosion proof marking: Exd II CT6 Gb/ DIP A20 TA, T6
* Cable threaded hole: 1 sets of G3/4 (NPT 3/4)
* Installation: mounted on ceiling, or wall bracket
* Rotation angle: Horizontal 0-360 degree, Vertical -90 to + 60 degree
* Rotation speed: 6 ° per second
* Input voltage: AC220V , AC110V, AC24V
* Working current: ≤ 500mA
* Power: less than 50W
* Preset points: no
* Control : RS485, Pelco-D/P
* Video output: AV or RJ45
*Control: RS-232/RS485
* load weight: 15kg
* Net weight: 10.5kg
* Operation temperature: -25 to 65 °C ( -35 to 65°C)
* Can load : ZAF100B, ZAF102, ZAF105, ZAF104, ZAF103, ZAF1031
Download:
Explosion Proof Pan Tilt for Camera-ZAY210 series data sheet.pdf
ZAY210 exploison proof pan tilt specifications:
Certificate
| Certificate Mark |
ExdⅡC T6 GB/DIP A20 TA, T6 |
| Certificate No |
CNEx13.4247 |
| Standards |
Q/320412ZAF012-2013 |
Mechanical
| Housing |
Stainless steel 304 or 316L |
| IP |
IP68 |
| Cable thread hole |
1pcs G3/4 or NPT3/4 |
Electrical
| Voltage |
AC220V or AC24V |
| Power |
50W |
Ambient
| Ambient temperature |
-25 to +60℃ |
| Air pressure |
80Kpa to 106Kpa |
| Relative Humidity |
≦95% (no condensation) |
Communication
| Communication |
support analog video output |
| 485 Communication |
Support Pelco-D, Pelco-P |
| Communicate Rate |
2400 to 19200bps |
Pan & Tilt
| Horizontal |
360° |
| Horizontal speed |
0.1-45°/s |
| Vertical |
-90 to +90° |
General
| Cable |
integrated cable |
| Size |
315*178*359mm |
| Weight |
10.5kg |
| Mounted |
wall, pole |
| Wall bracket |
ZAZ210B |
ZAY210 explosion proof pan tilt drawings:
