1080P 20X corrosion proof stainless steel 316L Marine CCTV camera

1080P 20X corrosion proof stainless steel 316L Marine CCTV camera

Brand Name: ZUOAN
Model Number: ZAF100A-SS
MOQ: 1 set
Price: 0-600 USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
CNEX
Type:
Digital Camera
Style:
Box Camera
Sensor:
CMOS
Technology:
NetWork
Special Features:
Corrosion Proof
Ingress:
IP68
Housing:
Stainless Steel 316L
Optional:
Wiper, Sunshiled
Camera:
1080P, 20X Network Camera
Weight:
9.5KG
Max Size For Camera:
300*80*80mm
Packaging Details:
firm carton or wooden box
Product Description

1080P 20X corrosion proof stainless steel 316L Marine CCTV camera 01080P 20X corrosion proof stainless steel 316L Marine CCTV camera





Main features:

·CNEx certificated
·Adopts stainless steel 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·2 cable glands
·Tempered glass with nanometer paint film
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

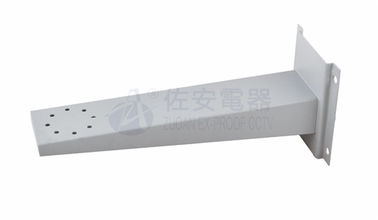

·Installation: mounted on ceiling, wall with pan &tilt, brackets.
·accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating.
·Communication and : Pelco-D/ Pelco-P
·Output: AV/optical fiber/twisted pair/H.264
·camera optional: analog camera, network camera, thermal camera



Download Data Sheet Here:



Explosion Proof CCTV Camera Housing With Wiper System-ZAF100A series data sheet.pdf



Description:



ZAF100A-SS series is ZUOAN one of the most popular bullet proof vandal proof camera housings/ cavity/ enclosure. ZAF100A marine CCTV camera adopts Stainless steel316L material, which also named as corrosion proof camera housing, anti-salty camera housing. ZAF 100A housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement.  its explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZAF100A explosion proof camera serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting.  At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A camera housing size: 420*195*194mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.



Applications:



ZAF100A-SS, as corrosion proof Marine CCTV camera, can apply for industry aggressive area.

ZAF100A-SS, with marine grade stainless steel 316L, apply for marine, vessel, offshore platform

marked as explosion proof camera, apply for hazardous area, gas station, petrochemical, oil tank, refinery ect.



Data sheet:



ZAF100A-SS
Crust stainless steel 304/ 316L
Explosion proof marking

Exd II CT6 & DIP A20, TA, T6

Explosion proof certification CNEx12.0006
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 11Kg
max size  for camera 350*80*80mm
Overall dimension 535*195*194mm
accessory wiper, sunshiled
Camera

1/3 CMOS, 1080P, 20X optical,

ICR Day & Night

focal length: 4.45-89mm

color min 1.5lux; B&W 0.1Lux



Details images:

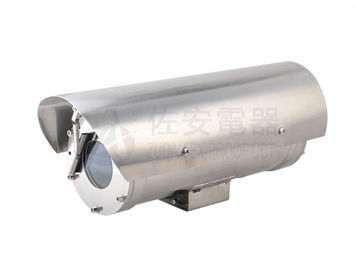

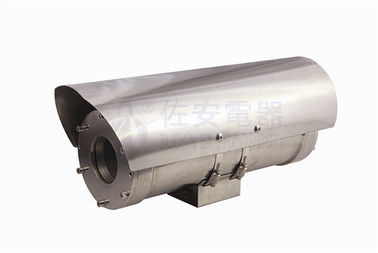

1080P 20X corrosion proof stainless steel 316L Marine CCTV camera 1    1080P 20X corrosion proof stainless steel 316L Marine CCTV camera 2
