Name: 5MP Marine Anti-corrosion Network IR Camera support SD Card Storage
Brand: ZUOAN
SKU: ZAS109
Price: 250 USD
Availability: InStock
Rating: 4.9 (169 reviews)

ZAS109 5MP Marine Anti-corrosion Network IR Camera support SD card Storage

Features:

> 1/2.8” 2Megapixel CMOS
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IP68, IK10, NEMA 4X
> Material: 316L Stainless Steel

Summary:

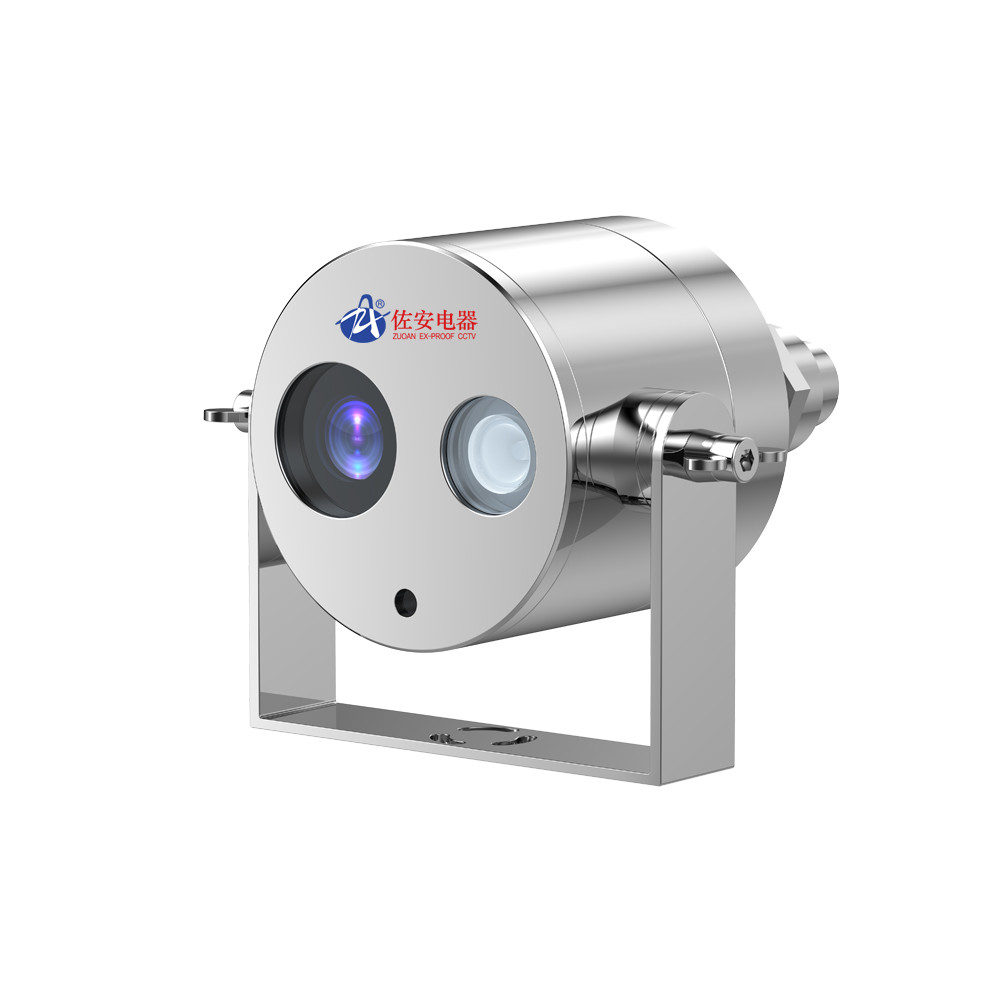

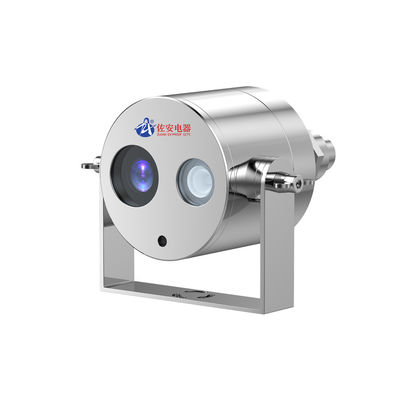

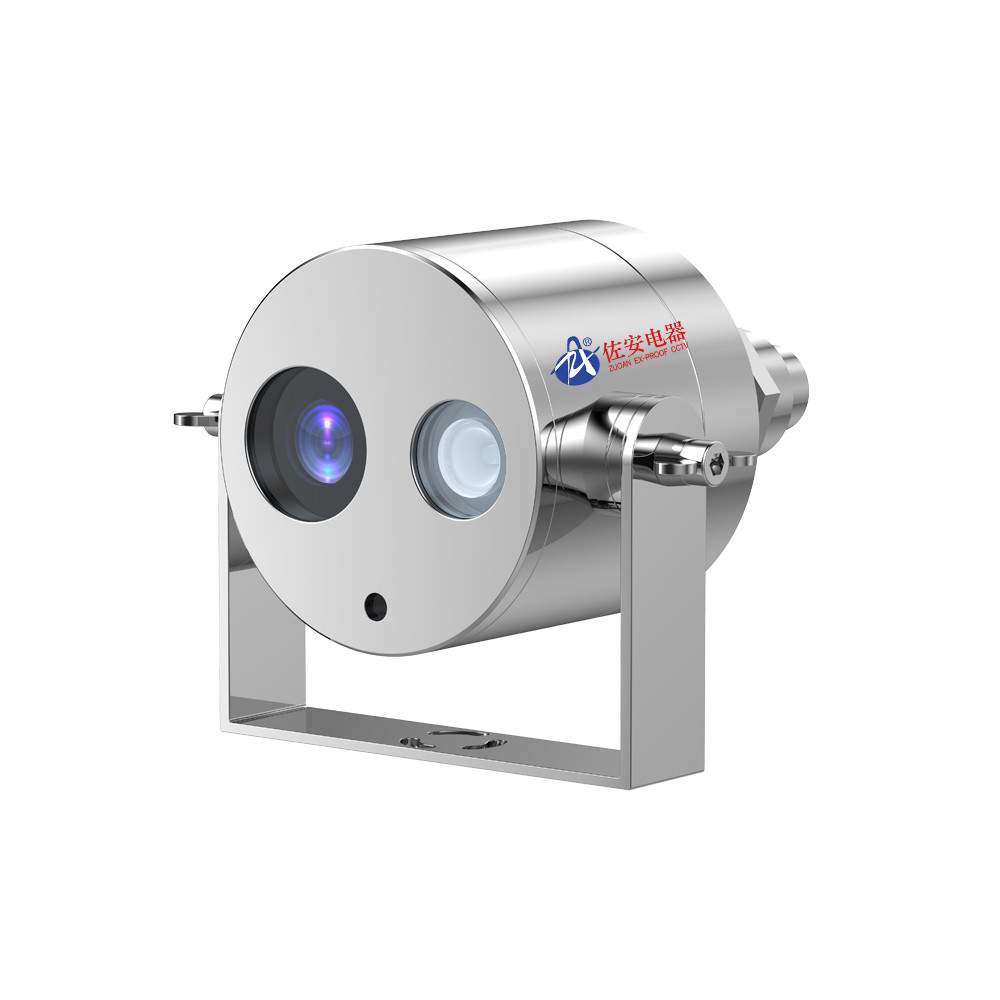

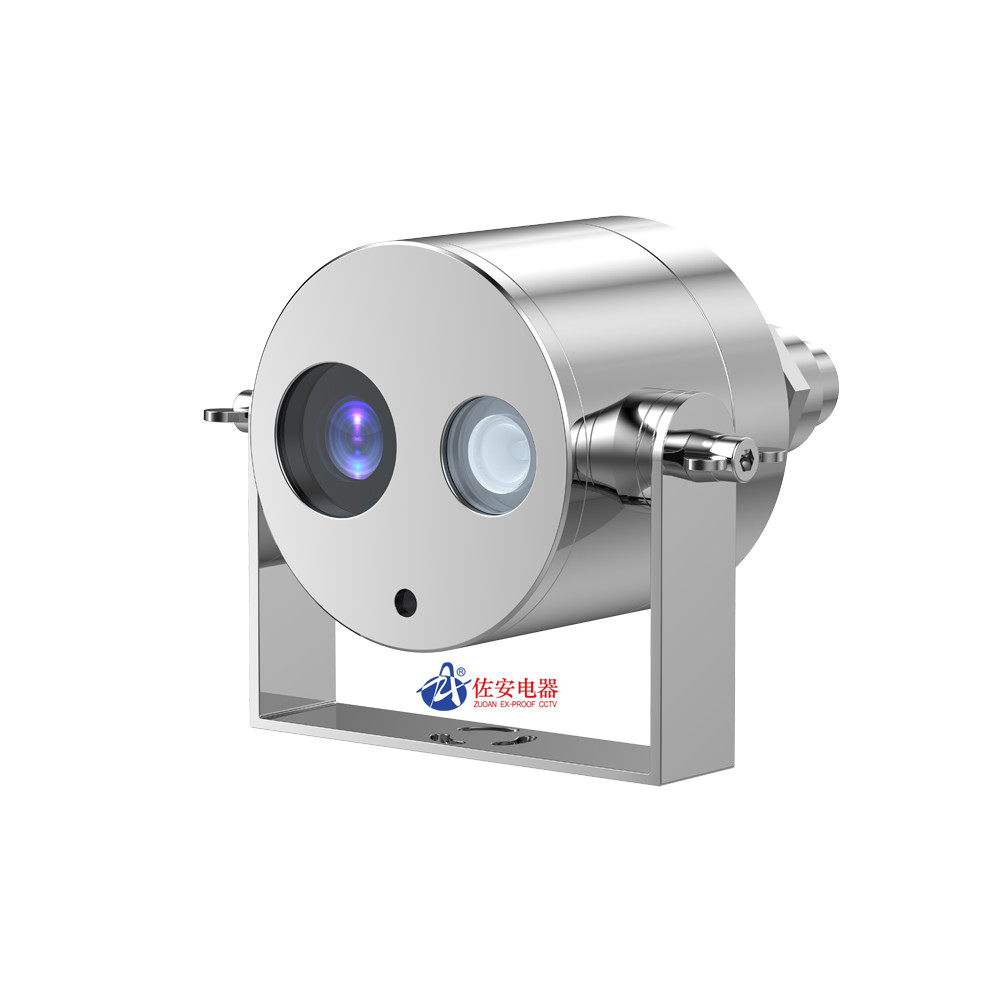

ZAS109 is ZUOAN new developed smart mini infrared camera in 2021 year, which is 5 mega pixel camera, made of stainless steel 316L which is fit for marine area. This camera is fixed 2.8mm / 3.6mm lens , and also adopts smart IR, up to 30m night vision distance.

ZAS109 is also startlight camera, its Min. Illumination is 0.008Lux @F1.6.

ZAS109 enclosure is made of stainless steel 316L material. Its window adopts toughened glass. At the side of enclosure, there is also flexible bracket for various mounted way. ZAS109 also support storage such as FTP; Micro SD card (support max. 256 G); NAS; SFTP.

At the end of rear flange, there are 1 cable entry for pigtail cable thread by. This camera requires DC12V and POE.
All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The ZAS109 anti corrosion camera ingress protection level also reach to IP68(1.2m/45min).

With its integrated design, its netweight is only 2.2kg. Sunshade is optional to add on the top of ZAS109 anti corrosion camera.

Client are all welcomed to offer your brand camera to us. We also perfer assembly client camera into this explosion proof enclosure.

Service Condition:

Atmosphere pressure: 80～120kPa
Ambient temperature: -40 ºC～+60 ºC
Relative humidity: no more than 95% (+25ºC)；

5MP Marine Anti-corrosion Network IR Camera support SD Card Storage 0

Camera ZAS109
Image Sensor	1/2.7” 5 Megapixel progressive CMOS
Max. Resolution	2592 (H) × 1944 (V)
ROM	128 MB
RAM	256 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.008 Lux@F1.6
S/N Ratio	> 56 dB
Illumination Distance	30 m (98.43 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	1 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	2.8 mm 3.6 mm
Max. Aperture	F1.6 F1.6
Field of View	2.8 mm: Horizontal 103.0° × Vertical 71.0° × Diagonal 132.0° 3.6 mm: Horizontal: 84.0° × Vertical 58.0° × Diagonal 110.0°
Iris Type	Fixed aperture
Close Focus Distance	2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	56 m (183.73 ft)	22.4 m (73.49 ft)	11.2 m (36.75 ft)	5.6 m (18.37 ft)
	3.6 mm	80 m (262.47 ft)	32.0 m (104.99 ft)	16.0 m (52.49 ft)	8.0 m (26.25 ft)
Smart event
IVS	Tripwire; intrusion
Video
Video Compression	H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Main stream: 2592 × 1944 (1 fps-20 fps) 2688 × 1520 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps)
Stream Capability	2 streams
Resolution	2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 Kbps–8192 Kbps H.265: 12 Kbps–8192 Kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest(RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.)
Mirror	Yes
Privacy Masking	4 areas
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability	ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec
User/Host	20
Storage	FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser	IE Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply	12V DC/PoE (802.3af)
Power Consumption	< 5.6W
Environment
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Protection	IP68
Structure
Casing	Stainless steel 316L
Cable entry	G3/4
Dimensions	152 mm ×110mm x117mm
Net Weight	2.3 kg
Gross Weight	2.8kg

CCTV Camera Accessories:

wall bracket mount adapter Ex flexible tube

Place of Origin:	China
Brand Name:	ZUOAN
Certification:	CNEx
Model Number:	ZAS109

Minimum Order Quantity:	MOQ 1set
Price:	US250-400 per set
Packaging Details:	carton box
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs per month

Material:	Stainless Steel 316L	Ingress Protection:	IP68
Resolution:	5 Mega Pixel	Focal Length:	2.8mm Or 3.6mm
Smart IR:	30m IR Distance	Compression:	H.265, H.264, MJPEG
Network:	ONVIF Conformance	Power Input:	DC12V/POE
Power Consumption:	Max 5.6W	Apply Area:	Marine Area
Operate Temperature:	–40°C～+60°C	Cable Entry:	M27*1.25
NW:	2.3kg	Storage:	FTP; Micro SD Card (support Max. 256 G); NAS; SFTP
