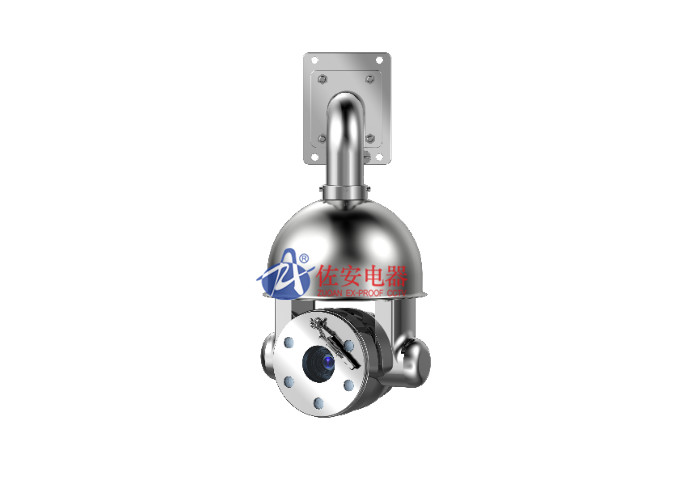

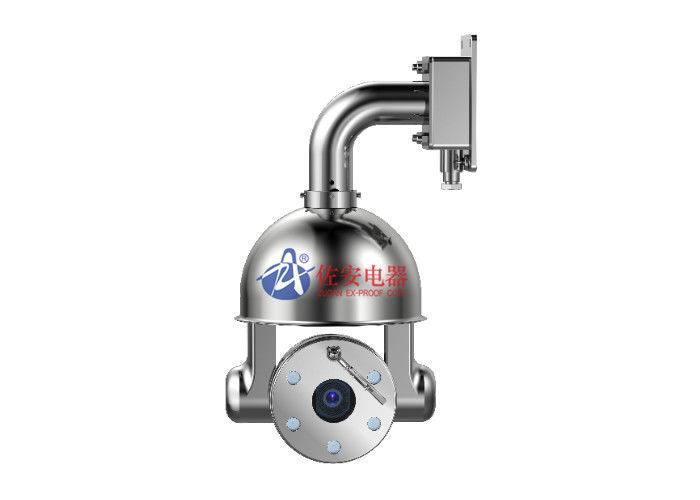

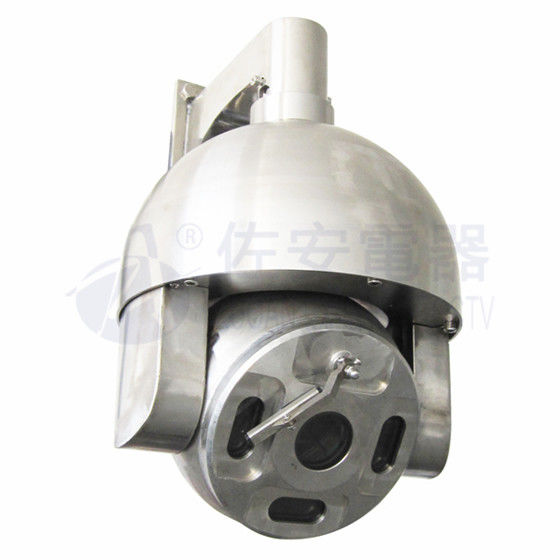

2MP 20X Stainless Steel 316L Pan and Tilt Dome Type Marine CCTV camera

Brand Name:	ZUOAN
Model Number:	ZAT680-SS-HD
MOQ:	1 set
Price:	0-5000 USD
Payment Terms:	100% TT before shipment
Supply Ability:	1000 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNEX

Type:

Digital Camera

Style:

Dome Camera

Sensor:

CMOS

Technology:

Pan / Tilt / Zoom

Special Features:

Marine Corrosion Proof

Ingress:

IP68

Housing:

Stainless Steel 316L

Preset Patrol:

128 Points

Camera:

2.0MP 20X Optical Zoom Camera

Weight:

19.1KG

Pan And Tilt:

360 Degree Auto Tracking

Infrared Light:

80-100m Distance

Packaging Details:

firm carton or wooden box

Product Description

2MP 20X stainless steel 316L pan and tilt dome type Marine CCTV camera

Main features:

Mairne corrosion proof Stainless steel 316L housing
highest ingress: IP68 rated
double explosion proof marking: Exd II CT6 & DIP A20, TA, T6
wide voltage: AC85~265V
net weight: 19.1 Kg
package dimension: 205*205*445mm
mounted: wall, or ceiling
rotation: horizontal 360 °, vertical 0~-90°
preset point: 128/256 points
control: RS485
communication: RJ45
protocol: TCP/IP/ pelco-d/pelco-p
optional camera insde: 2.0MP, 20X HD camera
Infrared light: 80-100m distance

Description:

ZAT680 corrsion proof PTZ dome marine CCTV camera, which fills in the dome vacancy of supervision line. It is fit for more aggressive area, like marine, chemical factory.
ZAT680 is an integrated dome camera for auto tracking, with housing, infrared light, camera, wiper system, pan and tilt.
ZAT680 adopts stepping motor and worn gear motor. Auto patrol, mechanical self lock, telephoto speed limit.
With Mechanical self-lock function, against external force.

Applications:

With stringent certifications, explosion proof dome camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project, Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

Data sheet:

Model	ZAT680-SS-HD
Explosion proof certified	Exd II CT6 & DIP A20, TA, T6
Certification NO.	CNEX13.4243
Crust	stainless steel 316L
Weather proof	IP68
Running speed	0.1-45°/S
Running angle	horizontal 360 °, vertical -90`0°
preset point	128 points
function	auto scanning, auto cruise, keep watch
equipped	Wiper system, infrared lights
power input	AC24V, AC220V, AC85-265V
operate temperature	-40~65°C
Control	RS485, Pelco-D / Pleco-P
Signal output	RJ45
Net weight	19.1Kg
camera	2.0MP, 20X optical zoom color min 1.5lux; B&W 0.1Lux focal length: 4.45-89mm
Infrared light	80-100m distance
