Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera Housing

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAF100A-H
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Ingress: IP68 Housing: Stainless Steel 304
Accessories: Wiper, Sunshiled Camera: Analog Camera Core, Or Network Camera
Weight: 9.5KG Max Size For Camera: 300*80*80mm
Weather Proof: IP68 Inner Size For Camera: 300*80*80mm
Net Weight: 9.5kg Optional: Wiper System, Sunshield, Heating Module, Cooling Module

Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera Housing





Main features:



Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera Housing 0

·CNEx certificated
·Explosion Proof Certification: CNEx12.0006
·Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
·Fit for gas zone 1, 2;  dust zone 20, 21,22.
·Adopts stainless steel 304 or 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68 for weather proof
* Optional: wiper system, heating module, cooling module
·2 cable glands G3/4(NPT3/4)
·Strong Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·Inner size for camera:300*80*80mm (LxWxH)
·operation temperature: -25 to 65 degree centigrade
                                           -50 to +65 degree centigrade
* Can load SAMSUNG, SONY, HIKVISION, DAHUA, PELCO, BOSCH camera





Download Data Sheet Here:



Explosion Proof CCTV Camera Housing With Wiper System-ZAF100A series data sheet.pdf





Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera

Housing Description:

ZAF100 series is large size explosion proof housing with wiper system. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP66,which means dust tight, and can protect against powerful water jets. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF 100A housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement. ZAF100A serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. ZAF100A series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance;it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A camera housing size: 420*195*194mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.



Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera Housing Applications:

With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



Data sheet:

ZAF100A-H
Crust stainless steel 304
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx12.0006
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 9.5Kg
max size  for camera 300*80*80mm
Overall dimension 471*195*194mm
accessory wiper, sunshiled




Details images:

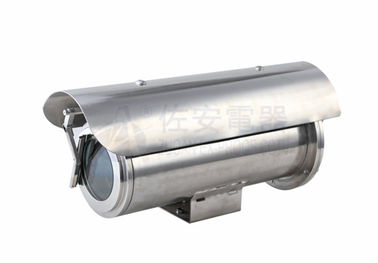

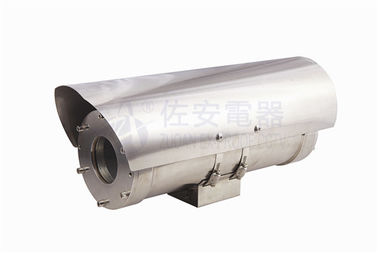

Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera Housing 1    Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera Housing 2

Other products:

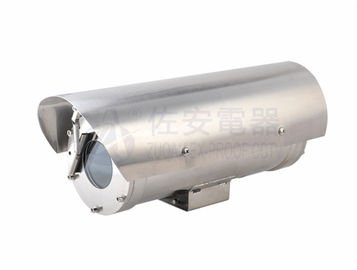

Outdoor Large Size Stainless Steel304 Flameproof Explosion Proof Camera Housing 3
