Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

Brand Name:	ZUOAN
Model Number:	ZAJXD4
MOQ:	1 set
Price:	0-80USD
Payment Terms:	100% TT
Supply Ability:	1000 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNEX

Ingress:

IP68

Enclosure:

Stainless Steel 304/316L

Cable Hole:

4 Sets Of G3/4

Packaging Details:

firm carton

Product Description

Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

Main features:

Pressure: 80KPa~106KPa
Ambient temperature: –25°C~+60°C
Relative humidity: less than 95%(+25°C)
Ex-proof marking: ExdⅡCT6
Enclosure degree: IP68
Working voltage: AC220V(198-242V)
Wiring mouth: 4 access
Max connection cable: 7core cable
Max current: 21A
Overall dimension: 187mmX 187mmX 84mm
304 stainless steel(used in chemical industry,outdoor,acid and alkali circumstances)
NW: 3.5 Kg

Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box 0

Applications:

With stringent certifications, Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

Data sheet:

Model	ZAJXD-S
crust	stainless steel 304
explosion proof marking	Exd II CT6
explosion proof certification	CNEx11.0529
application	gas zone 1, zone 2
IP rated	IP68
terminal block	6 pairs
water seal O-ring	Yes
cable threaded hole	4 sets G3/4 (or NPT3/4)
Net weight	3.5Kg
Overall dimension	18718784mm

Details images:

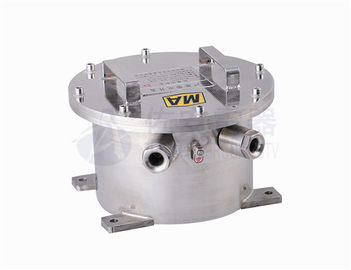

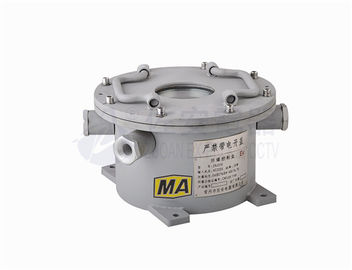

Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box 1

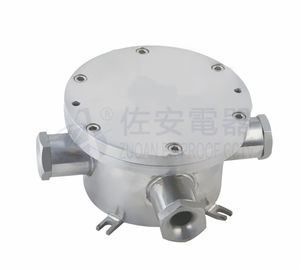

Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box 3
