| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEX |
| Model Number: | ZAJ350 |
| Minimum Order Quantity: | 1 set |
| Price: | 0-300USD |
| Packaging Details: | firm carton |
| Delivery Time: | in stock |
| Payment Terms: | 100% TT |
| Supply Ability: | 1000 set per month |
| Ingress: | IP66 | Enclosure: | Stainless Steel 304/316L |
|---|---|---|---|
| Cable Hole: | 6 Sets Of G3/4 (NPT3/4) | Explosion Proof Enclosure: | DVR, NVR Enclosure |

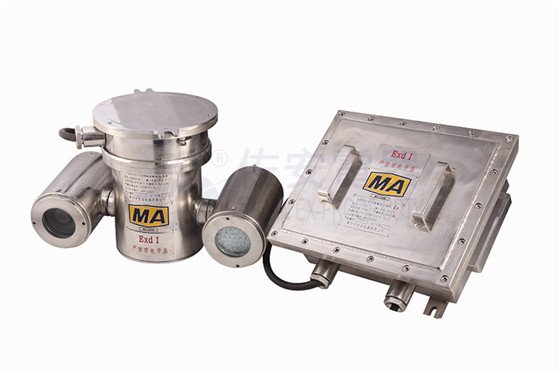

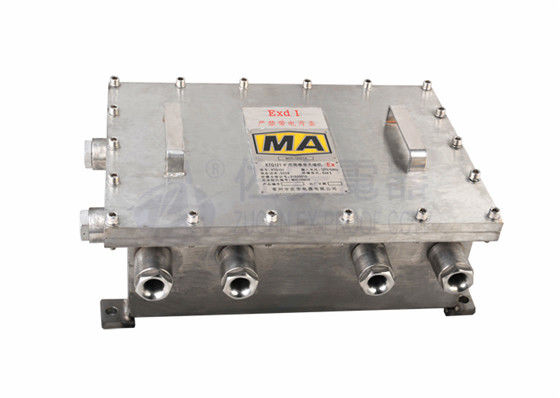

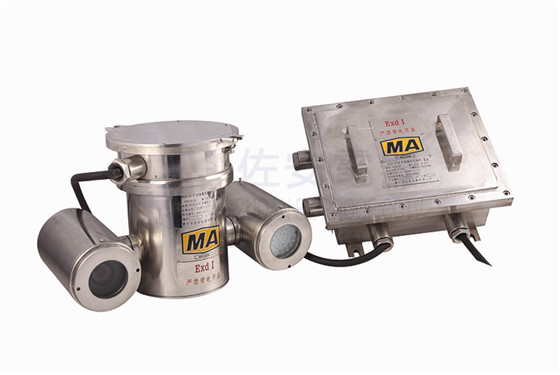

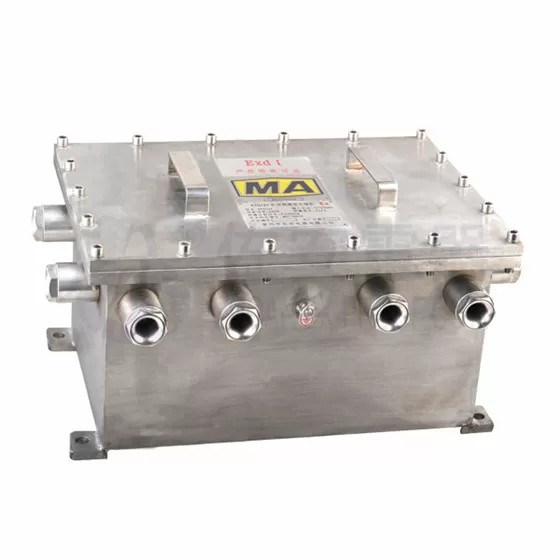

IP68 Stainless Steel Flame proof Explosion Proof Box For Fiber Converter, Power Converter
Main features:
Pressure: 80KPa~106KPa
Ambient temperature: –40°C~+65°C
Relative humidity: less than 95%(+25°C)
Ex-proof marking: ExdⅡBT(H2) T6 &DIP A20 TA,T6
Enclosure degree: IP66
Working voltage: AC85~265V, AC220V
Wiring mouth: 6 sets *G3/4 (or NPT3/4)
Descirption:
The ZAJ350 Explosion Proof enclosure for DVR, NVR, Decoder can controll explosion proof camera and pan/tilt according to the demand of the main engine. The explosion proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the circumstances of volatile gas, such as hydrogen(H2)and hydrocarbon gas in the plants(expect C2H2). The exterior is concise.
Flame proof Explosion Proof Box For Fiber Converter, Power Converter Applications:
With stringent certifications, explosion proof enclosure is fit for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Data sheet:
| Model | ZAJ350 |
| crust | carbon steel, stainless steel 304/316L |
| explosion proof marking | Exd II B(H2) T6 Gb &DIP A20, TA, T6 |
| explosion proof certification | CNEx13.4245 |
| application | gas zone 1,2; dust zone 20, 21, 22 |
| IP rated | IP66 |
| can load | 4/8/16 channel DVR, power adaptor |
| water seal O-ring | Yes |
| cable threaded hole | 6 sets G3/4 (or NPT3/4) |
| Net weight | 14Kg |
| Overall dimension | 382*308*144mm |
| Inner installation dimension | 240*210*101mm |
Technical Drawings:
Other products:
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
