Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

    • Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box
    • Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box
    • Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box
    • Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box
    • Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAJXD4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-80USD
    Packaging Details: firm carton
    Delivery Time: in stock
    Payment Terms: 100% TT
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Ingress: IP68 Enclosure: Stainless Steel 304/316L
    Cable Hole: 4 Sets Of G3/4

    Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box





    Main features:

    Pressure: 80KPa~106KPa
    Ambient temperature: –25°C~+60°C
    Relative humidity: less than 95%(+25°C)
    Ex-proof marking: ExdⅡCT6
    Enclosure degree: IP68
    Working voltage: AC220V(198-242V)
    Wiring mouth: 4 access
    Max connection cable: 7core cable
    Max current: 21A
    Overall dimension: 187mmX 187mmX 84mm
    304 stainless steel(used in chemical industry,outdoor,acid and alkali circumstances)
    NW: 3.5 Kg


    Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box


    Applications:



    With stringent certifications, Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Data sheet:



    Model ZAJXD-S
    crust stainless steel 304
    explosion proof marking Exd II CT6
    explosion proof certification CNEx11.0529
    application gas zone 1, zone 2
    IP rated IP68
    terminal block 6 pairs
    water seal O-ring Yes
    cable threaded hole  4 sets G3/4  (or NPT3/4)
    Net weight 3.5Kg
    Overall dimension 187*187*84mm

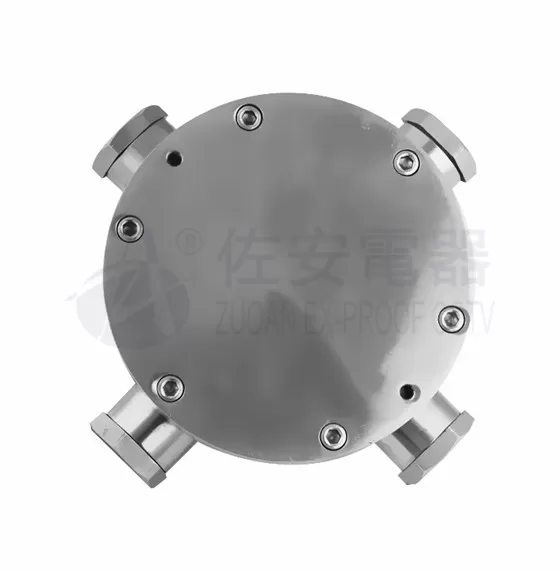

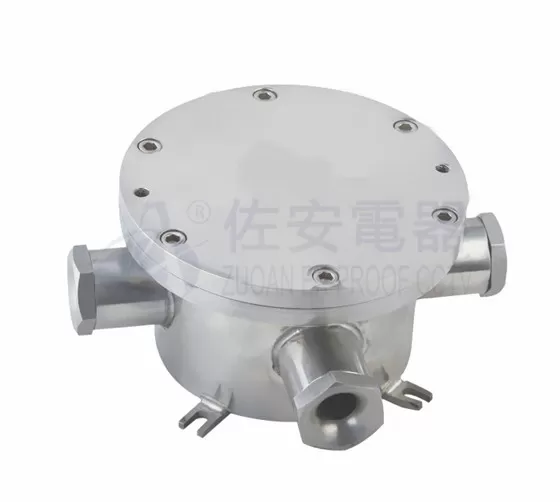

    Details images:

    Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction BoxStainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

    Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box   Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

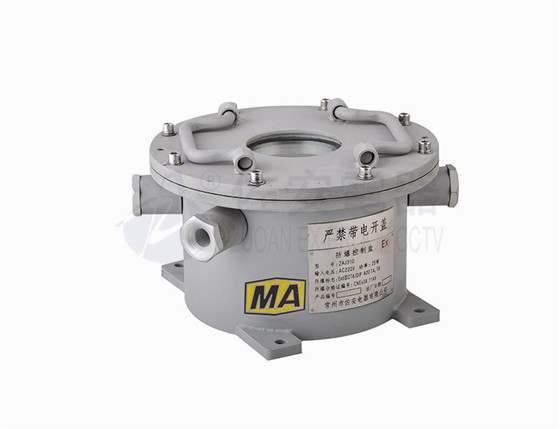

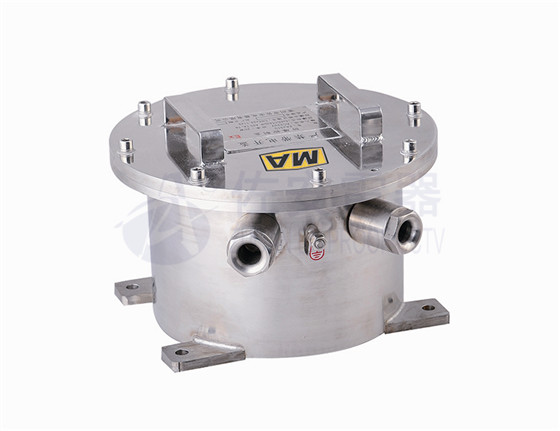

    Other products:

    Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box

    Stainless Steel Flameproof IP68 Waterproof Terminal Box Explosion Proof Junction Box



    Special order/ requirements

    Contact us for special requirements, Email: info@exproofcctv.com
