CRANE HOOK CAMERA
Created with Pixso.

CRANTSTAR 500 Tower Crane zoom camera wireless long range video monitor system hook advisor

CRANTSTAR 500 Tower Crane zoom camera wireless long range video monitor system hook advisor

Model Number: CRANE STAR500
Detail Information
Place of Origin:
CHINA
Frequency Band:
5.8G
Brand:
SAKIA
Waterproof:
IP68
Compatibility:
Universal
Material:
Aluminum Alloy
Mount Type:
Magnet
Pan Angle:
360°
Product Name:
CRANE HOOK CAMERA
Weight:
1.2kg
Dimension:
95x55x100mm
Power:
12V DC
Product Description

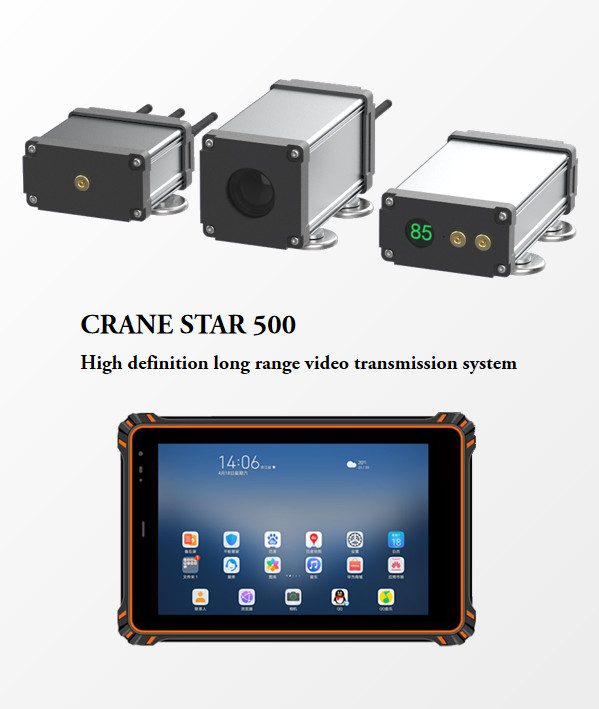

High definition long range video transmission system

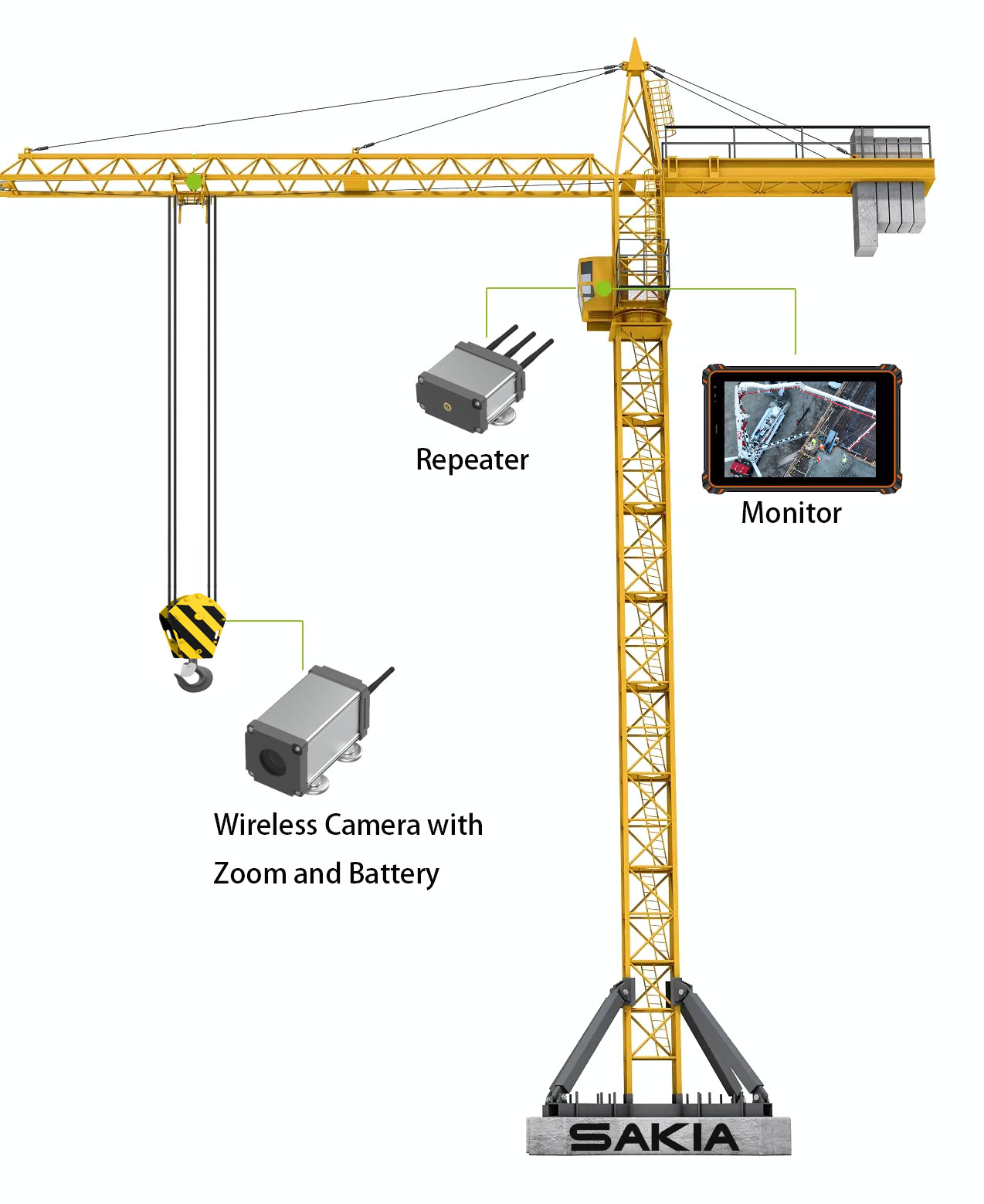

CraneSTAR 500 provides various options for tower crane camera opertaion systems. CraneSTAR is very easy to install, A CraneSTAR camera can be installed on the hook block of a tower crane or be located anywhere on the construction site. CraneSTAR is stored in a suitcase size transport case that makes it easy to move between tower cranes or to be relocated when a tower crane is taken down.eliminate blind spots, increase safety, and improve productivity.

CRANTSTAR 500 Tower Crane zoom camera wireless long range video monitor system hook advisor 0

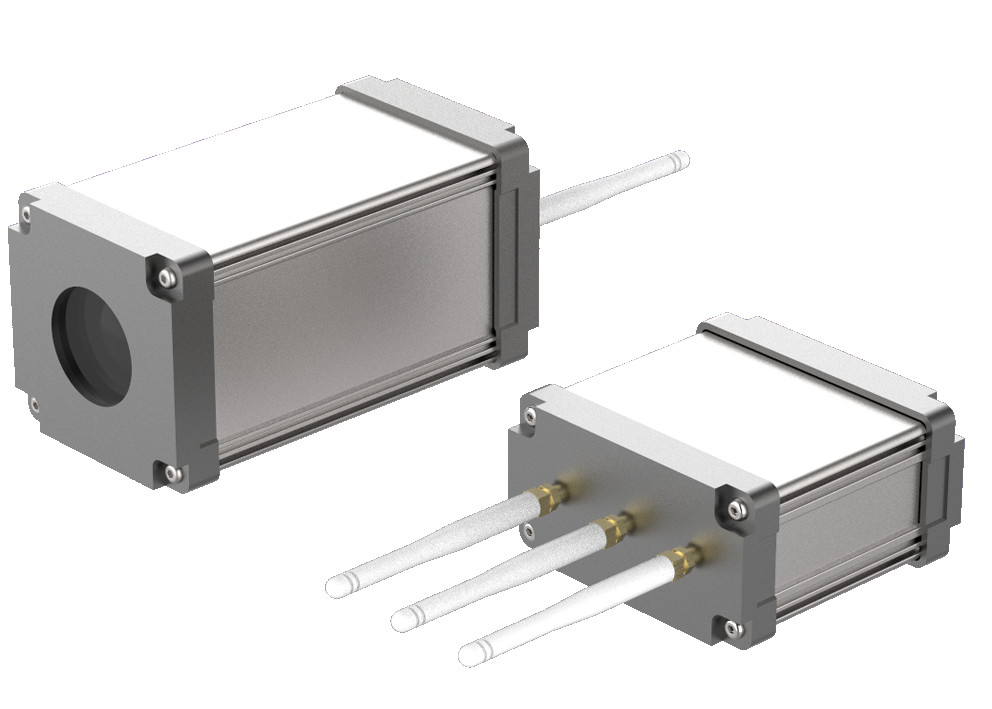

Camera:

Resolution: 1920x1080 / 2MP 20x zoom
Power Supply: 12V DC
Waterproof: IP67
Dimension: 65x65x100mm/ 85x85x140mm
Weight: 0.8kgs/ 1.1kgs

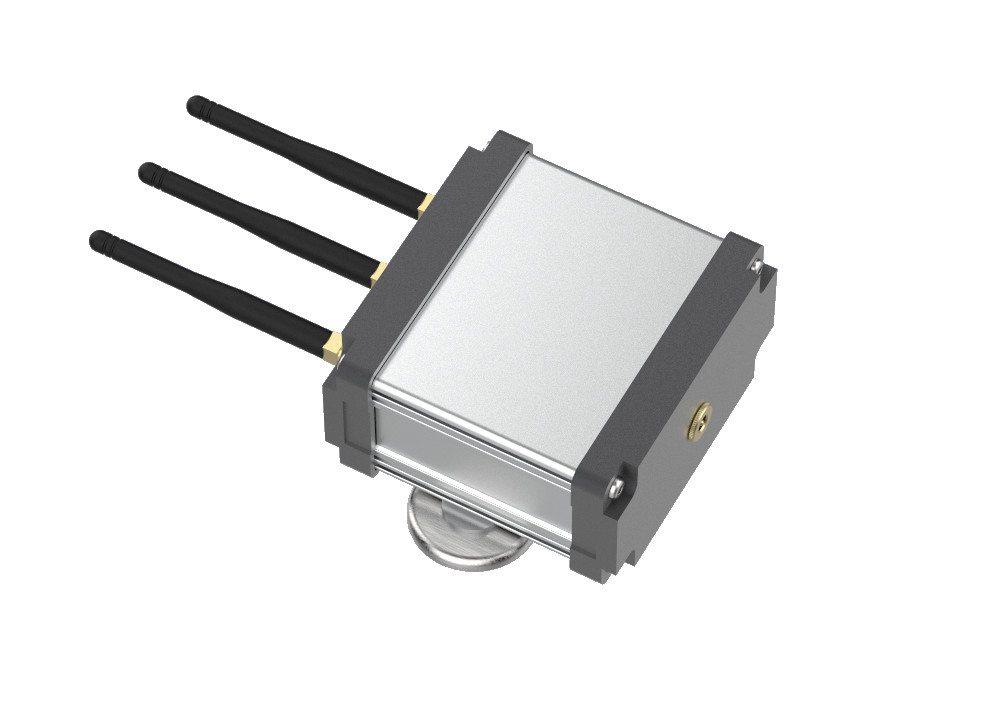

Repeater:

Effective distance: 500 meters
Frequency band: 2.4G
Power Supply: 5-12V DC
Waterproof: IP67
Dimension: 95x55x100mm
Weight: 0.7kgs



Battery:

Capacity: 5000mah
Power Out: 12V DC
Power In: 5-12V DC
Waterproof: IP67
Supply Time: 30 hours/20 hours
Dimension: 100x55x160mm
Weight: 1.2kgs
