Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEX
Model Number: ZAF102-SHC
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Ingress: IP68 Housing: Stainless Steel 304
Accessories: Heater, Cooling Module Camera: Analog Camera Core, Or Network Camera
Weight: 7.8KG Weather Proof: IP68
Optional: Heater, Cooling Module Inner Size For Camera: 300*70*75mm

Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing


Main features:

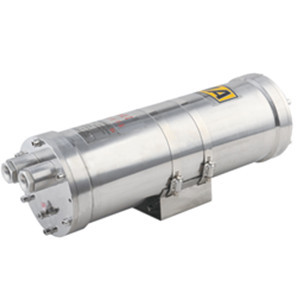

Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing 0

* CNEx certificated
* Explosion Proof Certification: CNEx12.0004
* Explosion Proof Marking: Exd II CT6 & DIP A20, TA, T6
* Fit for gas zone 1, 2;  dust zone 20, 21,22.
* Adopts stainless steel 304 or 316L
* Surface finish: electropolished or corrosion resistant paint finish
* IP68 for weather proof
* Equipped with auto wiper system and sunshiled for heavy polluted area
* 2 cable glands G3/4(NPT3/4)
* Strong Tempered glass with nanometer paint film
* Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
* Installation: mounted on ceiling, wall with pan &tilt, brackets.
* Inner size for camera:300*70*75mm (LxWxH)
* Operation temperature: -25 to 65 celsius
  -50 to +65 celsius
* can load Sony camera, SAMSUNG camera, Hikvision Camera, Dahua Camera, thermal camera



Download Data Sheet Here:


Explosion Proof CCTV Camera Housing -ZAF102 series data sheet.pdf


Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing Description:


ZAF102-SHC is featured as ultra lower temperature resistance explosion proof camera housing, which is equipped wtih cooling and heating module circulate system. It is more fit for more cold winter area. Its operation temeprature ranges from -25 to 65 degree centigrade.

it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF102 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 300*70*75mm, net weight: 7.8KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.

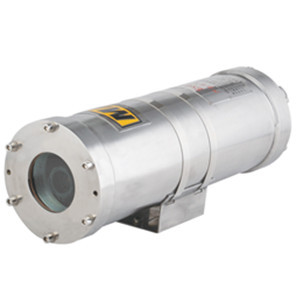

  Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing 1


Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing Applications:


With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.


Data sheet:


Crust stainless steel 304/ 316L
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx12.0004
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature



Netweight 7.8Kg
max size  for camera 300L*70W*75H mm
Overall dimension 421*132*155

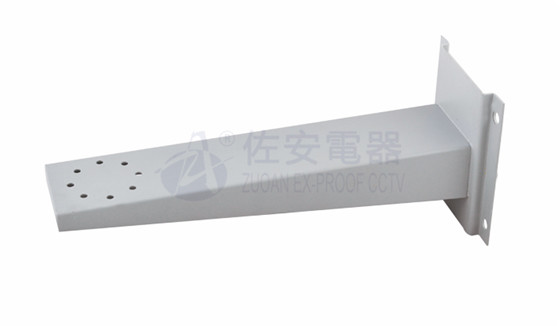

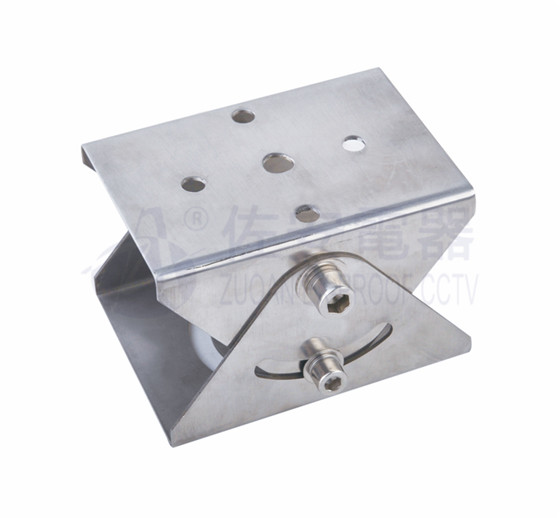

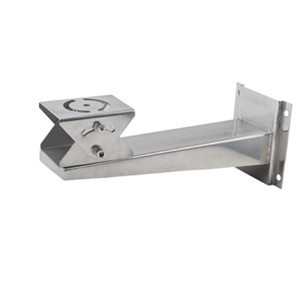

wall bracket ZAZ100B

explosion proof Flexible tube D16*1000mm


Other products:

Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing 2

Ultra Lower Temperature Resistance IP68 Explosion Proof Camera Housing 3

ATEX large size explosion proof CCTV camera with wiper
Flameproof stainless steel explosion proof camera housing
Air cooling explosion proof heat resistant camera housing for furnace
Infrared light flame proof explosion proof camera housing
700TVL night vision flame proof mini explosion protected camera with infrared lights
360 degree auto tracking ATEX explosion proof ptz camera
2MP 20X long range night vision explosion proof ptz camera with laser lights
2MP 20X explosion proof dome camera with infrared light
