Coal Mine CCTV Camera
Created with Pixso.

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera

Brand Name: ZUOAN
Model Number: KBA115-S
MOQ: 1 set
Price: 0-600 USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
MA, CNEX
Type:
Analog Camera
Style:
Box Camera
Sensor:
CCD
Technology:
Optical Fiber
Special Features:
Explosion Proof
Housing:
Carbon Steel, Stainless Steel 304
Camera:
570TVL, 0.0003Lux F1.4 Black White Camera
Weight:
10KG
Overall Dimension:
430*155*133mm
Packaging Details:
firm carton or wooden box
Product Description

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera



Coal Mine CCTV Camera Main features:

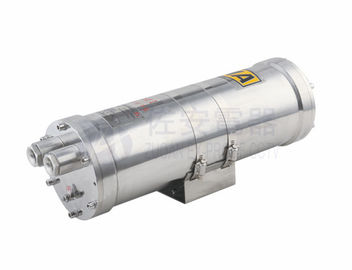

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera 0


* MA,CNEx certificated
* Explosion Proof Certification: 21020400
* Coal mine safety certification: MAK070015
* Explosion Proof Marking: Exd I
* Fit for under coal mine surveillance system
* Adopts stainless steel 304
* Camera: 570TVL , Black & white Camera
  0.0003 Lux F1.4 (AGC high)
* Lens: 3.5-8mm
* AC127V , 50Hz
* working wave length: 1310nm
* (DBM) Optical singal power:-12 to -1
* Transmit distance:  20km
* Optical output: ST port
* Video output: 1channel optical port, 1 channel network port
* Overall dimension:430*155*133mm
* Operation temperature: 0 to 40 degree centigrade



Coal Mine CCTV Camera  Description:

KBA115 series is ZUOAN developed lower illuminate explosion proof  coal mine cctv camera, which can apply for underground coal mining surveillance system.  It has get the coal mine safety certification, and explosion proof certification. It is marked as Exd I , which loads 570TVL,  0.0003Lux camera, and 3.5-8mm lens inside.

KBA115 is also equipped with single mode optical transmitter and receiver. Its output is by optical fiber, which can transmit 20km long.



Coal Mine CCTV Camera Applications:

With stringent certifications, KBA115 can apply for underground coal mine industry surveillance system.



Coal Mine CCTV Camera Data sheet:

KBA115-S
Crust stainless steel 304
Explosion proof marking Exd I
Explosion proof certification 21020400
Mine safety  assurance certification MAK070015
Power supply AC127V, 50Hz
Video Power less than 30VA
Working temperature 0-40 °C
air pressure 80-106KPA
relative humidity ≤95%  (+25°C)
Netweight 10kg
overall dimension 430*155*133mm
Camera

1/2-type CCD

570TVL,

3.5-8mm Lens,

0.0003 Lux (F1.4 AGC high)

Optical Output ST port
Video output 1 channel optical port, 1 channel network port
Transmit distance 20km
working wave length 1310nm
Optical singal power -12 to -1 DBM



Coal Mine CCTV Camera Details images:

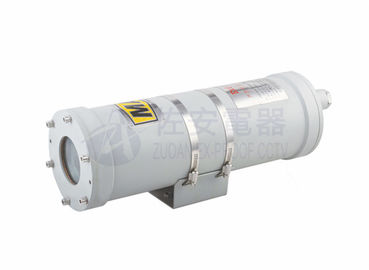

    570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera 1

Mounted hole size:

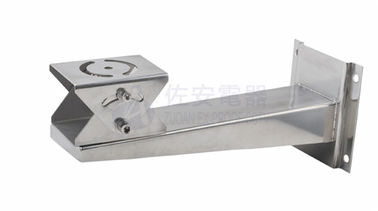

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera 2



Other products:

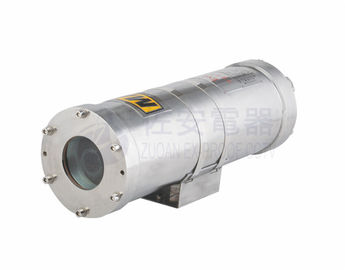

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera 3

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera 4



Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
