550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

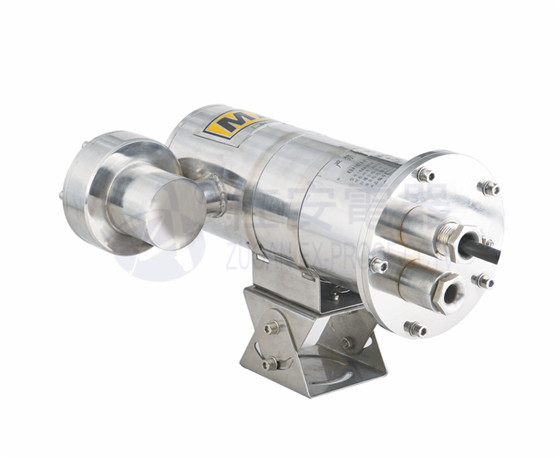

    • 550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

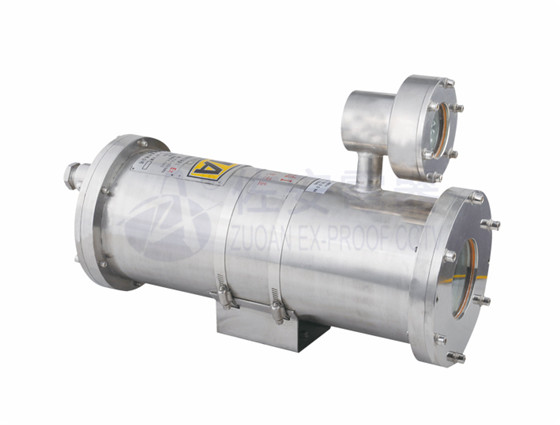

    • 550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

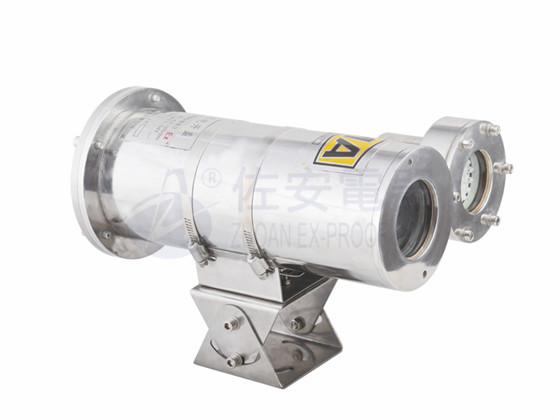

    • 550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

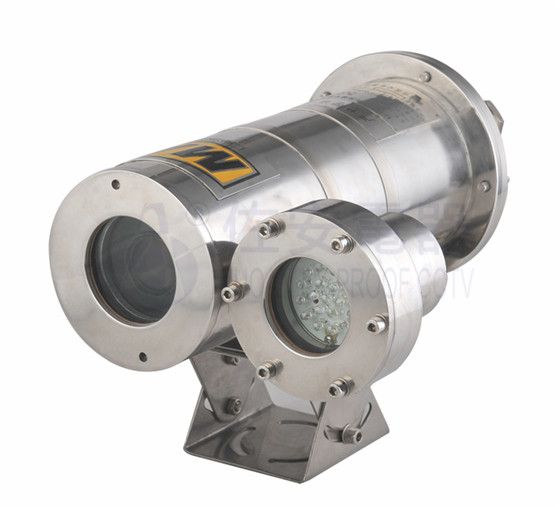

    • 550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

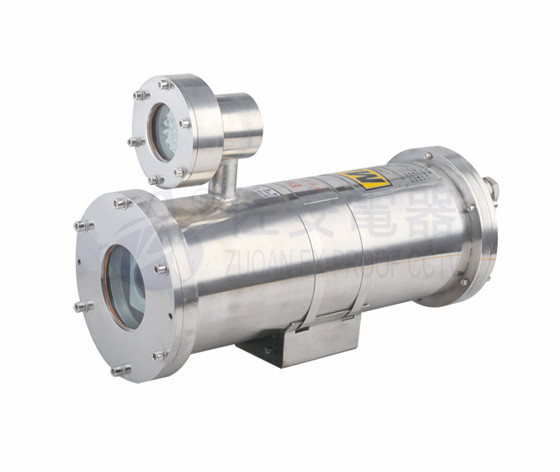

    • 550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output
  • 550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: MA, CNEX
    Model Number: KBA167A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-600 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Box Camera
    Sensor: CCD Technology: Cold Lights
    Special Features: Explosion Proof Housing: Stainless Steel 304
    Camera: 550TVL, 1218X Zoom Camera Weight: 12KG
    Overall Dimension: 430*165*266mm

    550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output



    Coal Mine CCTV Camera Main features:

    550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output


    * MA,CNEx certificated
    * Explosion Proof Certification: 21020008
    * Coal mine safety certification: MAK100017
    * Explosion Proof Marking: Exd I
    * Fit for under coal mine surveillance system
    * Adopts stainless steel 304
    *Cold Lights: 30m distance
    * Camera: 550TVL, 18X zoom Camera
    * AC127V , 50Hz
    * working wave length: 1310nm
    * (DBM) Optical singal power:-12 to -4
    * Transmit distance:  20km
    * Optical output: FC port
    * Video output: 1channel optical, 1 channel network
    * Overall dimension:430*165*266mm
    * Operation temperature: 0 to 40 degree centigrade



    Coal Mine CCTV Camera  Description:

    KBA167A series is ZUOAN developed explosion proof  coal mine cctv camera, which can apply for underground coal mining surveillance system. Equipped with cold lights, it has 30m distance at dark area.   It has get the coal mine safety certification, and explosion proof certification. It is marked as Exd I , which loads 550TVL, 18X  zoom camera inside.

    KBA167A is also equipped with single mode signal channel optical transmitter and receiver. Its output is by optical fiber, which can transmit 20km long.



    Coal Mine CCTV Camera Applications:

    With stringent certifications, KBA24 can apply for underground coal mine industry surveillance system.



    Coal Mine CCTV Camera Data sheet:

    KBA167A
    Crust stainless steel 304
    Explosion proof marking Exd I
    Explosion proof certification 21020008
    Mine safety  assurance certification MAK100017
    Power supply AC127V, 50Hz
    Video Power less than 30VA
    Working temperature 0-40 °C
    air pressure 80-106KPA
    relative humidity ≤95%  (+25°C)
    Netweight 12kg
    overall dimension 430*165*266mm
    Camera

    1/4-type EXview HAD CCD (PS)

    550TVL, 18X optical, 12X digital

    4.1-73.8mm Lens, 0.7 Lux

    48.0° (wide end) to 2.8° (tele end)

    Optical Output FC port
    Video output 1 channel optical port, 1 channel network port
    Transmit distance 20km
    working wave length 1310nm
    Optical singal power -12 to -4 DBM



    Coal Mine CCTV Camera Details images:

        550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output

    Mounted hole size:



    550TVL 18X Explosion Proof Coal Mine CCTV Camera With Optical Fiber Output
