550TVL 12X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

550TVL 12X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

Brand Name: ZUOAN
Model Number: KBA24
MOQ: 1 set
Price: 0-600 USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
MA, CNEX
Type:
Analog Camera
Style:
Box Camera
Sensor:
CCD
Technology:
Anti-explosion
Special Features:
Explosion Proof
Housing:
Stainless Steel 304
Camera:
550TVL, 12X Zoom Camera
Weight:
5KG
Overall Dimension:
300*112*130mm
Packaging Details:
firm carton or wooden box
Product Description

550TVL 12X  Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera



Coal Mine CCTV Camera Main features:

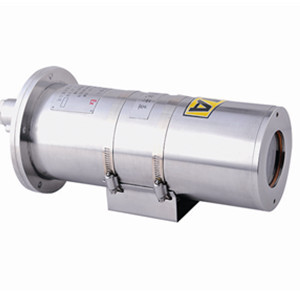

550TVL 12X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera 0


* MA,CNEx certificated
* Explosion Proof Certification: CCCMT11.0082
* Coal mine safety certification: MAK120006
* Explosion Proof Marking: Exd I
* Fit for under coal mine surveillance, or mine vehicle-mounted cctv camera
* Adopts stainless steel 304 or 316L
* Camera: 550TVL, 12X zoom Camera
* AC24V
* AV output
* Communication: RS485, 2400bps Baud rate
* Overall dimension:300*112*130mm
* Operation temperature: 0 to 40 degree centigrade



Coal Mine CCTV Camera  Description:

KBA24 series is ZUOAN developed explosion proof  coal mine cctv camera, which can apply for mine vehicle mounted cctv camera.  It has get the coal mine safety certification, and explosion proof certification. It is marked as Exd I , which loads 55TVL, 12X  zoom camera inside.





Coal Mine CCTV Camera Applications:

With stringent certifications, KBA24 can apply for coal mine industry surveillance system.

With cute size, KBA24 can also mounted on mine vehicles.



Coal Mine CCTV Camera Data sheet:

KBA24-IP
Crust stainless steel 304/316L
Explosion proof marking Exd I
Explosion proof certification CNEx12.0006
Mine safety  assurance certification MAK120006
Power supply AC24V
Video Power less than 50VA
Working temperature 0-40 °C
air pressure 80-106KPA
relative humidity ≤95%  (+25°C)
Netweight 5Kg
overall dimension 300*112*130mm
Camera

1/4-type EXview HAD CCD (PS)

550TVL, 12X optical, 12X digital

3.7-44.4mm Lens, 1.0Lux



Coal Mine CCTV Camera Details images:

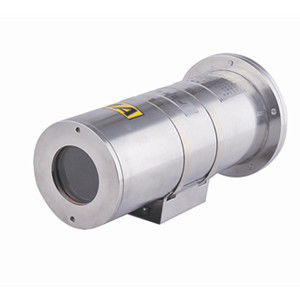

    550TVL 12X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera 1

Mounted hole size:

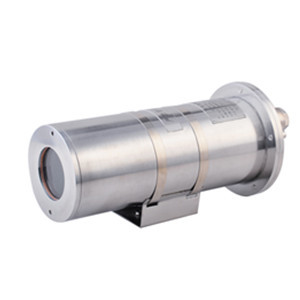

550TVL 12X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera 2



Other products:

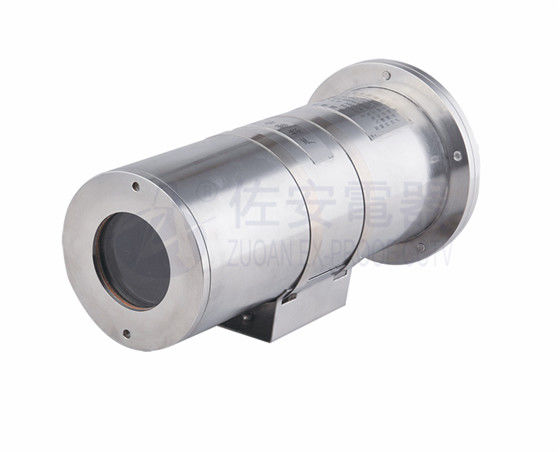

550TVL 12X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera 3
