1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

    • 1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera
    • 1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera
    • 1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera
    • 1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera
    • 1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera
  • 1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: MA, CNEX
    Model Number: KBA24-IP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-600 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Digital Camera Style: Box Camera
    Sensor: CMOS Technology: NetWork
    Special Features: Explosion Proof Housing: Stainless Steel 304
    Camera: 1.3MP 20X HD Camera Weight: 5KG
    Overall Dimension: 300*112*130mm

    1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera



    Coal Mine CCTV Camera Main features:

    1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera


    * MA,CNEx certificated
    * Explosion Proof Certification: CCCMT11.0082
    * Coal mine safety certification: MAK120006
    * Explosion Proof Marking: Exd I
    * Fit for under coal mine surveillance, or mine vehicle-mounted cctv camera
    * Adopts stainless steel 304 or 316L
    * Camera: 1.3MP 20X HD Camera
    * POE power supply
    *RJ45 output
    * Communication: RS485, 2400bps Baud rate
    * Overall dimension:300*112*130mm
    * Operation temperature: 0 to 40 degree centigrade



    Coal Mine CCTV Camera  Description:

    KBA24-IP series is ZUOAN developed explosion proof  coal mine cctv camera, which can apply for mine vehicle mounted cctv camera.  It has get the coal mine safety certification, and explosion proof certification. It is marked as Exd I , which loads 2MP 20X zoom camera inside.





    Coal Mine CCTV Camera Applications:

    With stringent certifications, KBA24 can apply for coal mine industry surveillance system.

    With cute size, KBA24 can also mounted on mine vehicles.



    Coal Mine CCTV Camera Data sheet:

    KBA24-IP
    Crust stainless steel 304/316L
    Explosion proof marking Exd I
    Explosion proof certification CNEx12.0006
    Mine safety  assurance certification MAK120006
    Power supply POE power supply
    Video Power less than 50VA
    Working temperature 0-40 °C
    air pressure 80-106KPA
    relative humidity ≤95%  (+25°C)
    Netweight 5Kg
    overall dimension 300*112*130mm
    Camera

    1/2.8 CMOS,

    1.3MP, 20X, 4.7-94mm lens,

    auto ICR, 0.0.5Lux

    RJ45 output

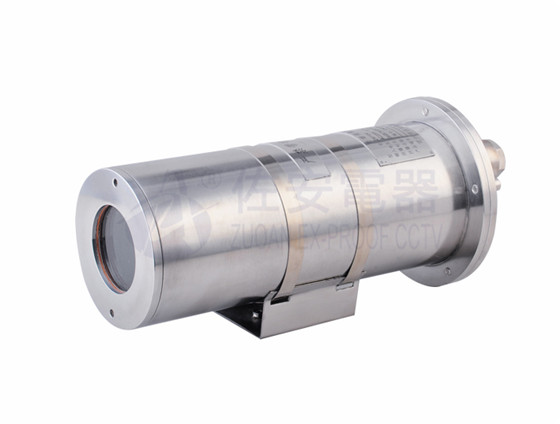

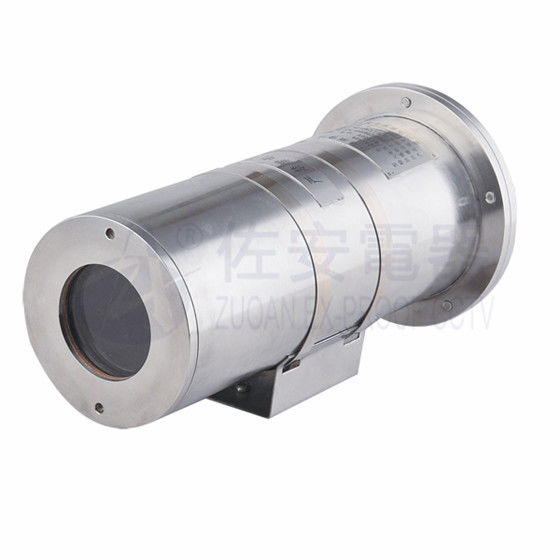

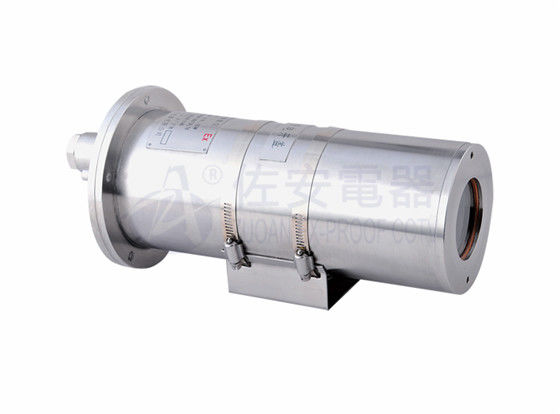

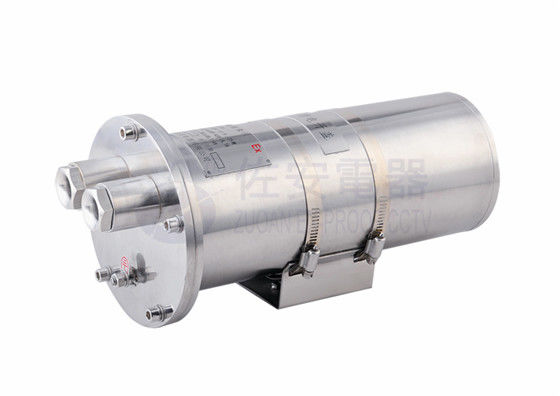

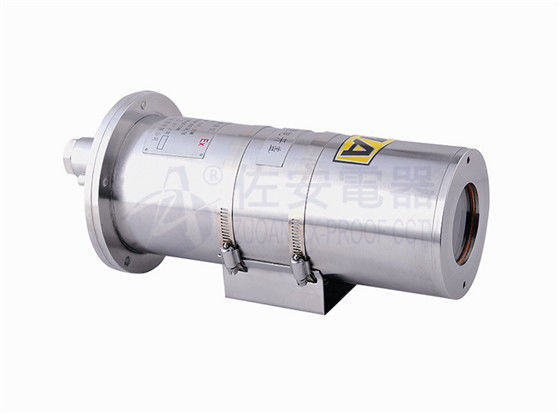

    Coal Mine CCTV Camera Details images:

        1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

    Mounted hole size:

    1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera



    Other products:

    1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

    1.3MP 20X Mine Vehicle-mounted Explosion Proof Coal Mine CCTV Camera

    * ATEX large size explosion proof CCTV camera with wiper
    * Flameproof stainless steel explosion proof camera housing
    * Air cooling explosion proof heat resistant camera housing for furnace
    * Infrared light flame proof explosion proof camera housing
    * 700TVL night vision flame proof mini explosion protected camera with infrared lights
    * 360 degree auto tracking ATEX explosion proof ptz camera
    * 2MP 20X long range night vision explosion proof ptz camera with laser lights
    * 2MP 20X explosion proof dome camera with infrared light
