Home ProductsCoal Mine CCTV Camera

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera

570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera

    • 570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera
    • 570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera
    • 570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera
    • 570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera
    • 570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera
  • 570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: MA, CNEX
    Model Number: KBA115-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-600 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Box Camera
    Sensor: CCD Technology: Optical Fiber
    Special Features: Explosion Proof Housing: Carbon Steel, Stainless Steel 304
    Camera: 570TVL, 0.0003Lux F1.4 Black White Camera Weight: 10KG
    Overall Dimension: 430*155*133mm

    570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera



    Coal Mine CCTV Camera Main features:

    570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera


    * MA,CNEx certificated
    * Explosion Proof Certification: 21020400
    * Coal mine safety certification: MAK070015
    * Explosion Proof Marking: Exd I
    * Fit for under coal mine surveillance system
    * Adopts stainless steel 304
    * Camera: 570TVL , Black & white Camera
      0.0003 Lux F1.4 (AGC high)
    * Lens: 3.5-8mm
    * AC127V , 50Hz
    * working wave length: 1310nm
    * (DBM) Optical singal power:-12 to -1
    * Transmit distance:  20km
    * Optical output: ST port
    * Video output: 1channel optical port, 1 channel network port
    * Overall dimension:430*155*133mm
    * Operation temperature: 0 to 40 degree centigrade



    Coal Mine CCTV Camera  Description:

    KBA115 series is ZUOAN developed lower illuminate explosion proof  coal mine cctv camera, which can apply for underground coal mining surveillance system.  It has get the coal mine safety certification, and explosion proof certification. It is marked as Exd I , which loads 570TVL,  0.0003Lux camera, and 3.5-8mm lens inside.

    KBA115 is also equipped with single mode optical transmitter and receiver. Its output is by optical fiber, which can transmit 20km long.



    Coal Mine CCTV Camera Applications:

    With stringent certifications, KBA115 can apply for underground coal mine industry surveillance system.



    Coal Mine CCTV Camera Data sheet:

    KBA115-S
    Crust stainless steel 304
    Explosion proof marking Exd I
    Explosion proof certification 21020400
    Mine safety  assurance certification MAK070015
    Power supply AC127V, 50Hz
    Video Power less than 30VA
    Working temperature 0-40 °C
    air pressure 80-106KPA
    relative humidity ≤95%  (+25°C)
    Netweight 10kg
    overall dimension 430*155*133mm
    Camera

    1/2-type CCD

    570TVL,

    3.5-8mm Lens,

    0.0003 Lux (F1.4 AGC high)

    Optical Output ST port
    Video output 1 channel optical port, 1 channel network port
    Transmit distance 20km
    working wave length 1310nm
    Optical singal power -12 to -1 DBM

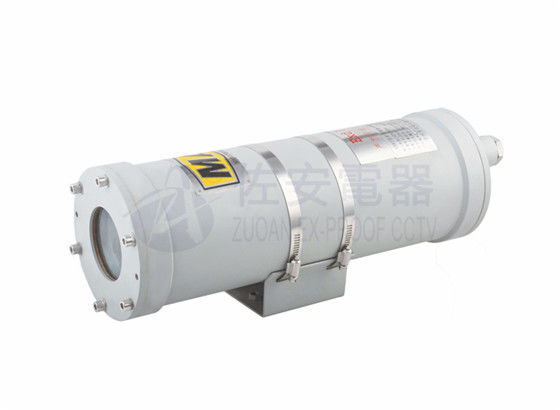

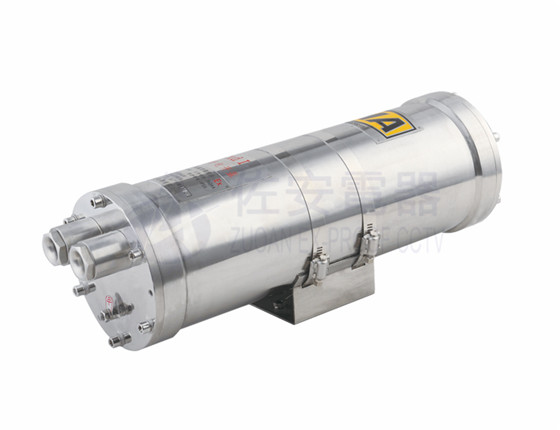

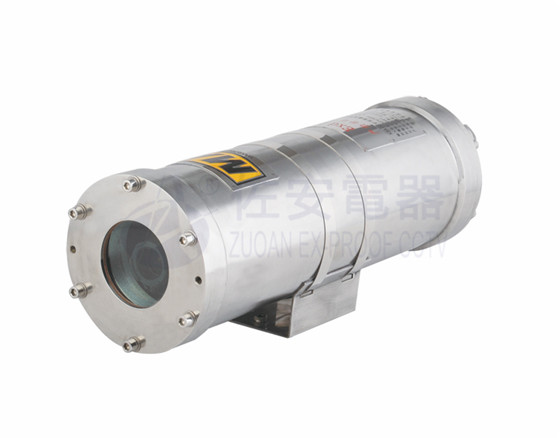

    Coal Mine CCTV Camera Details images:

        570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera

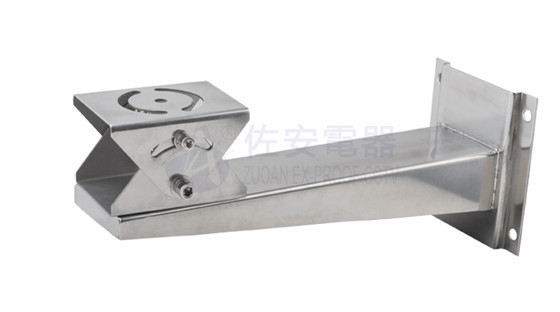

    Mounted hole size:

    570TVL Lower Illumination Black White Explosion Proof Coal Mine CCTV Camera
