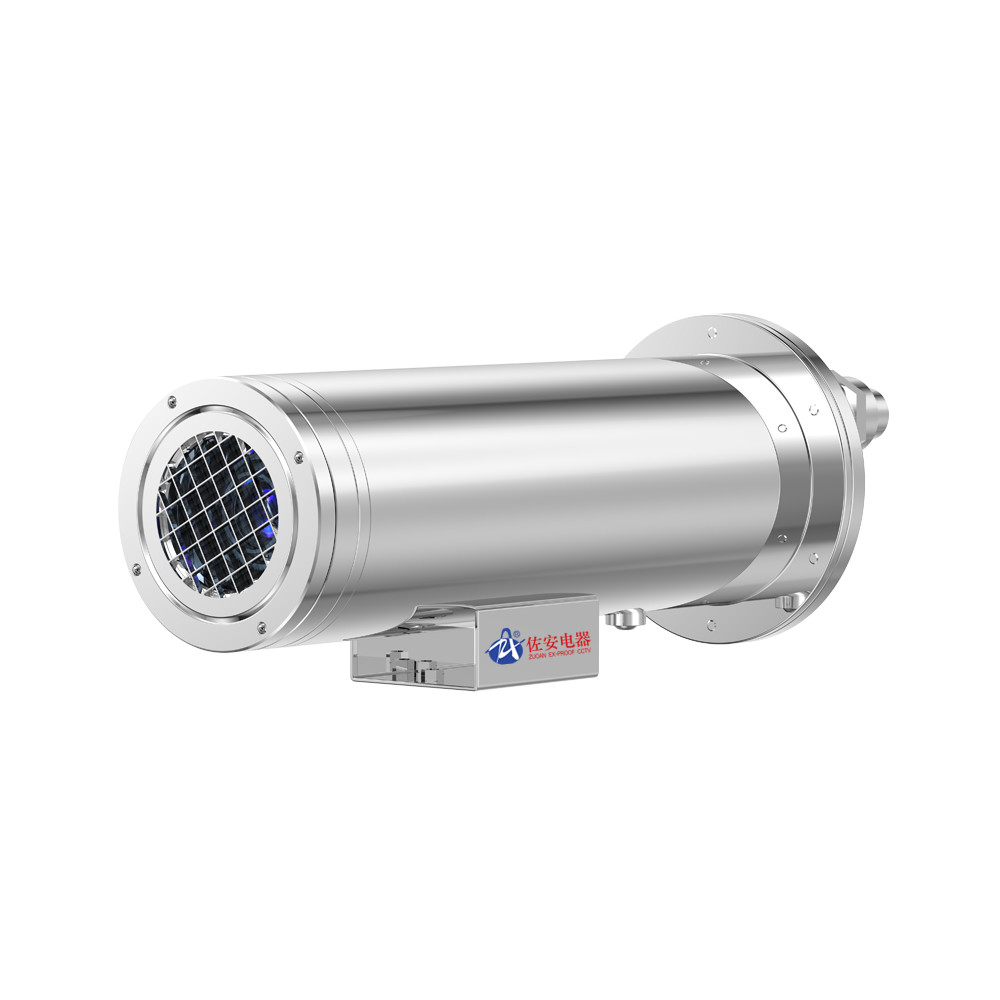

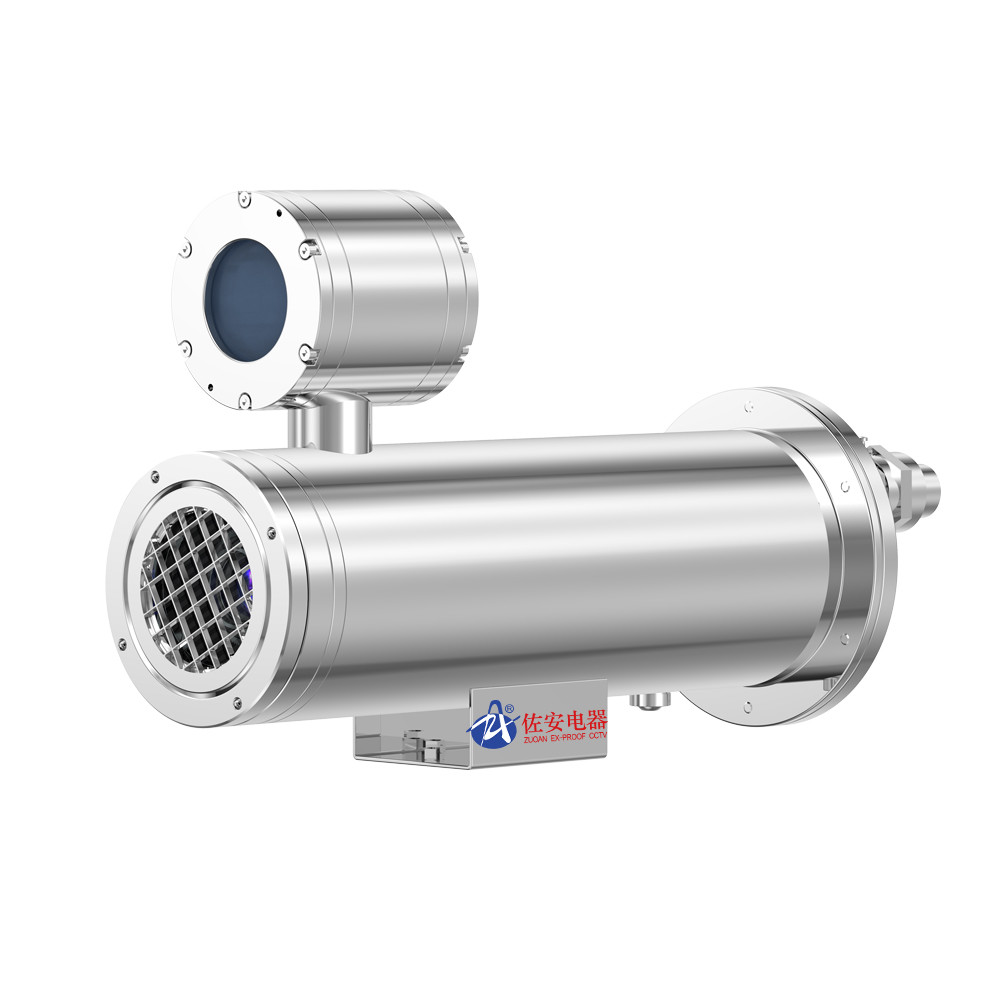

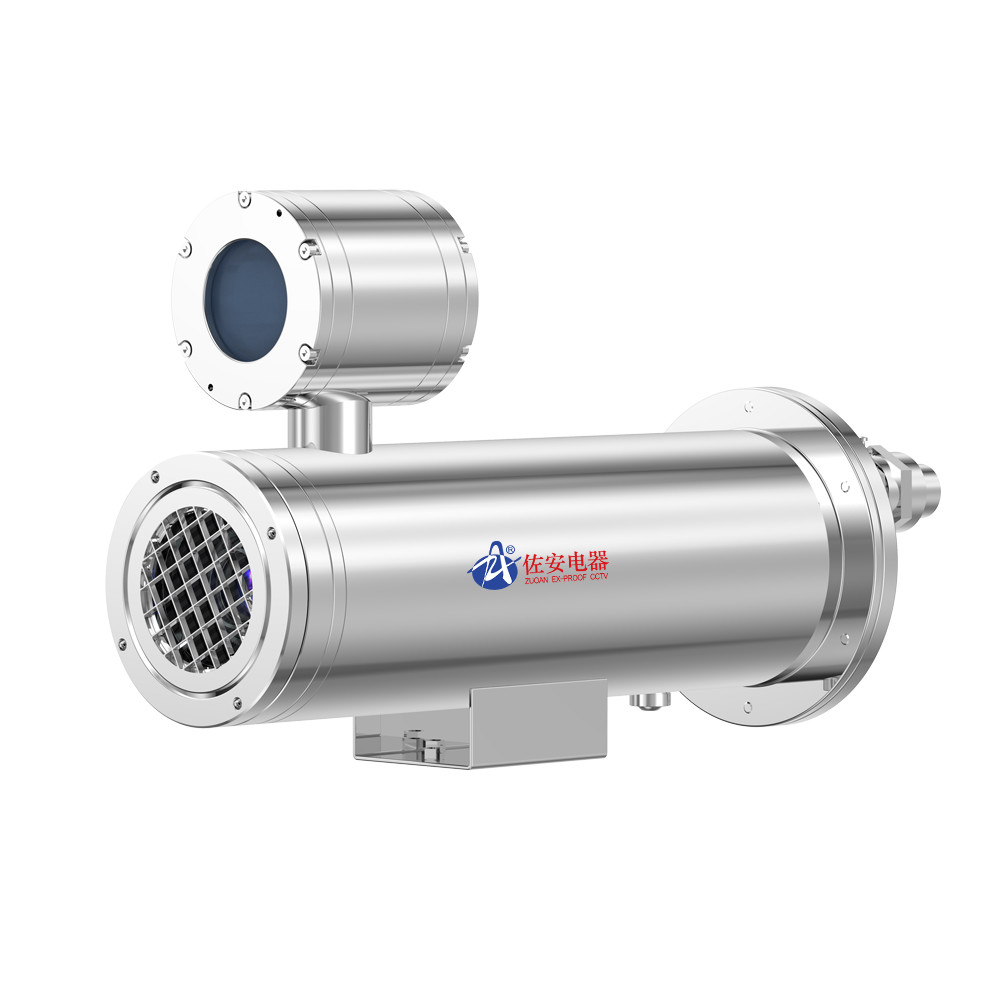

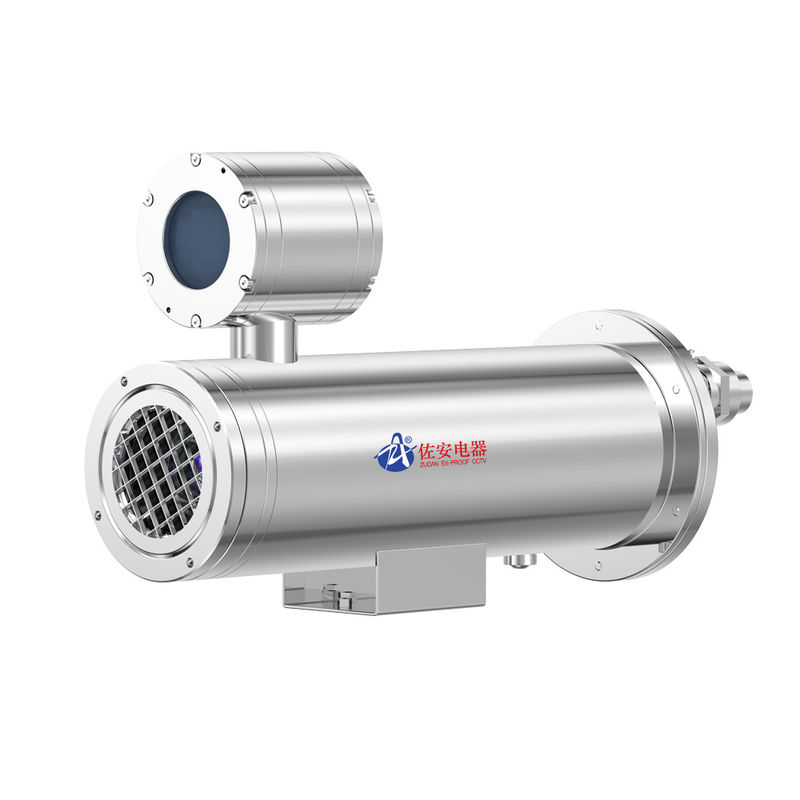

ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area

ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area

    • ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area
    • ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area
    • ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area
    • ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area
  • ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAFR125

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 1500- 3500 per set
    Packaging Details: carton box
    Delivery Time: 25 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304, 316L Type: Thermal Camera
    Special Features: Explosion-proof Sensor: Uncooled Vanadium Oxide Infrared Focal Plane Detector
    Resolution: 640*480 Lens: Fixed 9mm, 25mm, 35mm, 50mm,
    Usage: Industrial Pixel Pitch: 12μm
    Response Band: 8~14μm Video Output: Ethernet

    ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area



    Explosion proof thermal imaging camera summary:



    ZAFR125 series is ZUOAN 20121 year new developed explosion proof thermal imaging camera, which featured as power plant abnormal temperature test purpose . Its enclosure is made of stainless steel 304 or 316L material. This product get the explosion proof certificate, which weather proof is IP68 rated. ZAFR125 can apply for industry hazardous area, with explosive gas, oil, chemcials and powders. Its thermal imgaing camera is 640*480 resolution. Its lens can be manual and auto control. various lens optional, such as 9mm, 15mm, 25mm, 35mm, 50mm.



    Explosion proof thermal imaging camera features:



    • get CNEx explosion proof certficate
    • weather proof is IP68
    • adopts stainless steel 304 or 316L enclosure
    • IR glass to protect thermal imaging cameras

    • thermal imaging camera
    • 640*480 resolution
    • 17μm pixel pitch
    • frame up to 50 Hz
    • lens focus is manual or auto
    • Min focus distance is 0.3m
    • Verious lens: 9mm, 15mm, 25mm, 35mm, 50mm

    Explosion proof thermal imaging camera Specifications:



    Certificate

    Certificate Mark Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃
    Certificate No CNEx20.0939X
    Standards Q/320412 ZAF141-2020

    Mechanical

    Housing Stainless steel 304 or 316L
    IP IP68(2m/2h)
    Cable thread hole 2pcs M27×1.25或M25×1.5
    Glass GE glass

    Electrical

    Voltage 100~240V a.c. or 24V a.c./d.c. or 12V d.c. or PoE+(48V d.c.)
    Power ≤36W;≤25W(PoE)
    Optional surge protector TVS 6000V
    Optional within fiber optical cable Multimode, or signal mode

    Ambient

    Ambient temperature -40 to +60℃
    Air pressure 80KPa~110KPa
    Relative Humidity ≦95% (no condensation)

    Thermal Camera

    Detector Type Uncooled Vanadium Oxide Infrared Focal Plane Detector
    Resolution 640×512
    Lens 4.1mm/5.8mm/9.1mm/13mm/19mm/25mm/35mm/55mm
    Pixel pitch 12μm
    Response Band

    8~14μm

    Pseudo Chromatic Black /white
    Black hot/white hot
    Black hot/white hot
    Pseudo Color Support 18 palettes
    Support 18 kinds
    Temperature measurement range

    -20℃~+150℃, 0℃~+550℃

    High and low gain mode High gain, low gain, high and low gain automatic switching
    Temperature measurement accuracy ±2℃ or ±2% of reading (whichever is greater) @ ambienttemperature -20℃~60℃
    Network protocol

    Ethernet/IP, TCP, UDP, SNTP, RTSP, HTTP, ICMP, SMTP, DHCP,

    UPnP, PPPOE

    Video compression standard H.264/H.265
    Video format

    mp4, mov



    General

    Cable integrated cable
    Size 464*166*171mm
    Weight 8.6kg
    Mounted wall, pole
    Wall bracket ZAZ100B





    ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area

    ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area



    xplosion proof thermal imaging camera accessories:

    ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous AreaZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area
                            ZANXG Exe flexible tube                                  ZAZ100B wall bracket
