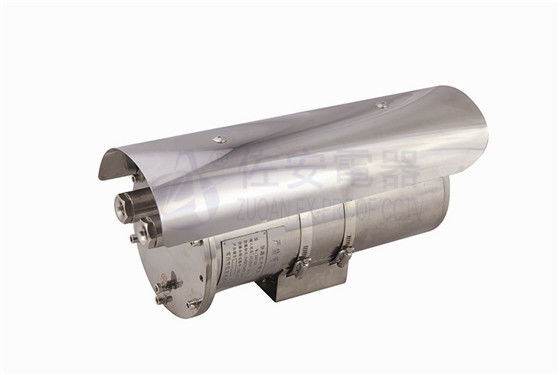

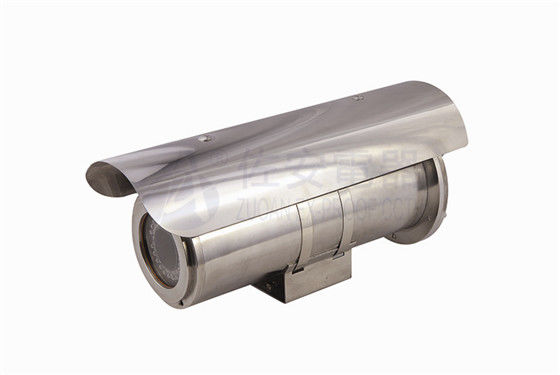

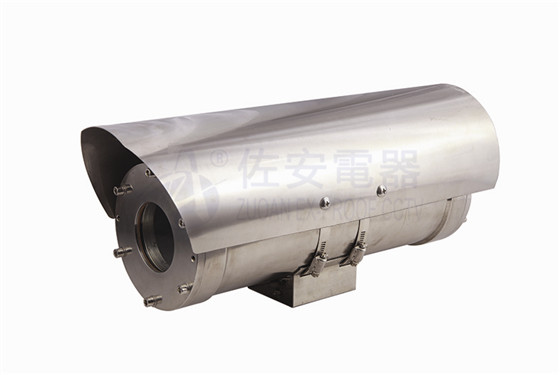

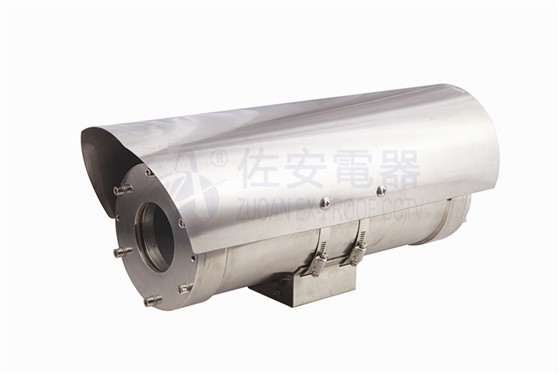

Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera

Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera

    • Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera
    • Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera
    • Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera
    • Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera
    • Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera
  • Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAF105-IR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-25000 USD
    Packaging Details: wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Box Camera
    Sensor: VOx FPA Technology: Infrared
    Special Features: Waterproof / Weatherproof Ingress: IP68
    Housing: Stainless Steel316L Optional: Heater, Cooling Module
    Camera: Thermal Imaging Camera Weight: 7.8KG

    Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera



    Marine grade Corrosion Proof Explosion Proof Thermal Imaging Camera

    Main features:

    ·CNEx certificated
    ·Adopts stainless steel316L explosion proof housing
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP68
    ·2 cable glands
    ·Ge window glass for thermal imaging camera
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·optional accessories: lens decoder, auto-heating, auto-cooling modular.
    ·Communication and : Pelco-D/ Pelco-P
    ·Output: AV/optical fiber/twisted pair/H.264



     Description:

    ZAF105-IR series is a middle size of explosion proof thermal camera housing. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF102 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68 . the explosion proof camera housing adopts Stainless steel 304 or 316L material, features as corrosion proof housing, flame proof housing, anti-salty housing. ZAF102 thermal camera housing surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. for one point surveillance; its window glass is Gemanium glass, especiall for infrared light  come in. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF102 camera housing inner Size: 260*70*70mm, net weight: 7.8KG. thermal camera core with 100mm lens can be installed in our explosion proof camera housing. Customers can offer thermal camera core and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.



    Applications:

    With stringent certifications, explosion proof thermal camera housing, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Data sheet:

    ZAF105-IR
    Crust stainless steel 304/ 316L
    Explosion proof marking Exd II BT6 & DIP A20, TA, T6
    Explosion proof certification CNEx13.2138
    apply area

    industry hazardous area, gas zone 1, zone2, dust zone 20,21,22

    marine, offshore platform, oil filed, chemical factory

    IP rated IP68
    Power input AC85-265V, AC24V
    cable output  2 sets G3/4 or NPT3/4
    Window glass Ge glass for thermal camera
    working temperature

    -25~65°C

    optional:-50~65°C

    Netweight 7Kg
    max size  for camera 260*80*80 mm
    Overall dimension 329*169*173mm
    accessory

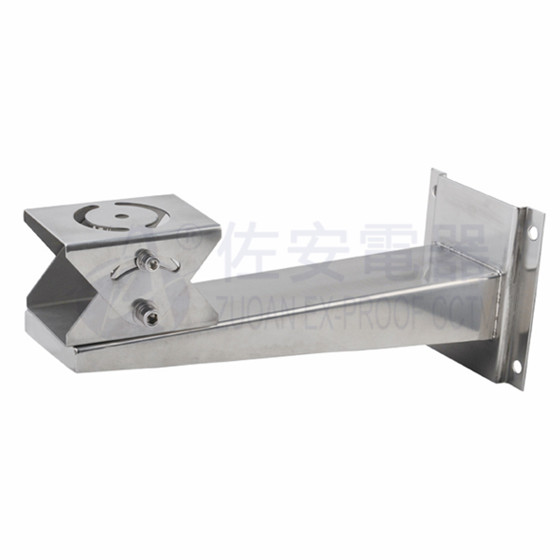

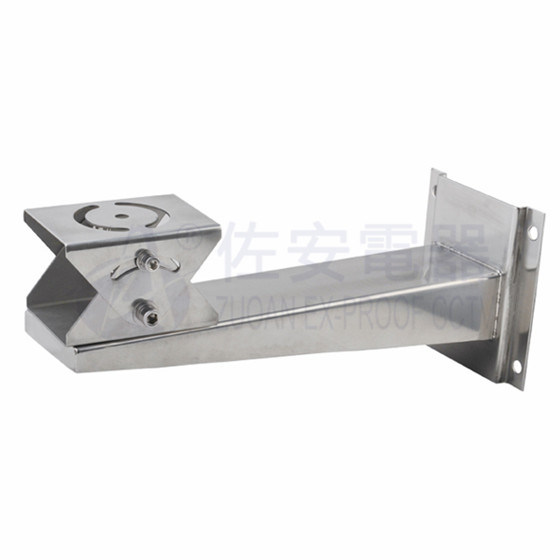

    wall bracket ZAZ100B

    explosion proof Flexible tube D16*1000mm

    thermal camera

    640*512pixel; 17μm,

    336*256pixel; 17μm,

    324*256pixel; 25μm,

    lens  7.5mm, 9mm,13mm, 19mm, 25mm,35mm,50mm,60mm



    Thermal imaging camera:

    1. 160x120 pixels, 384x288,640x480 pixels , 17μm, 25um pixel pitch
    2. NETD<65mk
    3. Compact and lightweight
    4. Analog/Digital video output
    5. RS232/RS485 interface

    Made in China! thermal camera coreMade in China! thermal camera coreMade in China! thermal camera core
