    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAT610-S-IR

    Payment & Shipping Terms:

    Price: 0-9000 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    Minimum Order Quantity: 1 set
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Box Camera
    Sensor: VOx FPA Technology: Thermal Imaging
    Special Features: Explosion Proof Ingress: IP68
    Housing: Stainless Steel 304/316L Infrared Light: Germany Made Array Light For 0-100m Night Vision
    Camera: Thermal Camera Weight: 22KG
    Pan And Tilt: 360 Degree Auto Tracking Preset Patrol: 128 Points

    Explosion Proof Pan and Tilt Thermal Imaging Camera For Marine

    Explosion Proof Pan and Tilt Thermal Imaging Camera For Marine

    Main features:

    ·CNEx certificated
    ·stepping motor drive
    ·Adopts stainless steel 304, 316L
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP68
    · cable gland
    ·Tempered glass with nanometer paint film for visiable light camera
    Germanium front window for thermal imaging camera
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
    ·Communication : Pelco-D/ Pelco-P/TCP/IP
    ·Communication rate: 2400~19200bps
    ··Output: AV/H.264/RJ45
    ·Control: RS-232/RS485
    ·Camera: SONY, SAMSUNG, thermal camera
    ·Telephoto limited speed: yes
    ·Variable angle: horizontal 360°, vertical ±90°
    ·Preset patrol: 256/ 128 points



    Explosion Proof Pan and Tilt Thermal Imaging Camera For Marine Description:

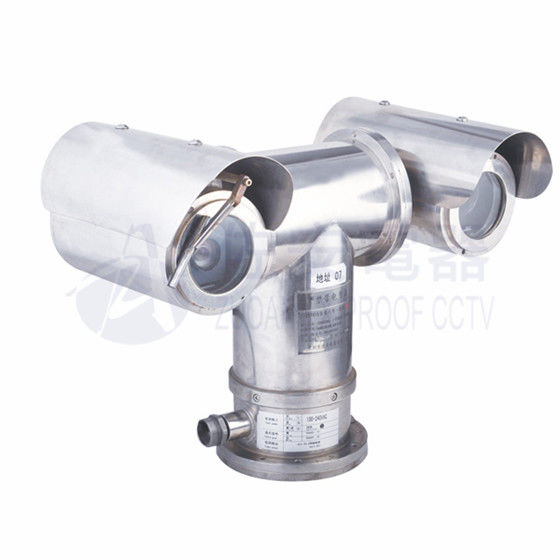

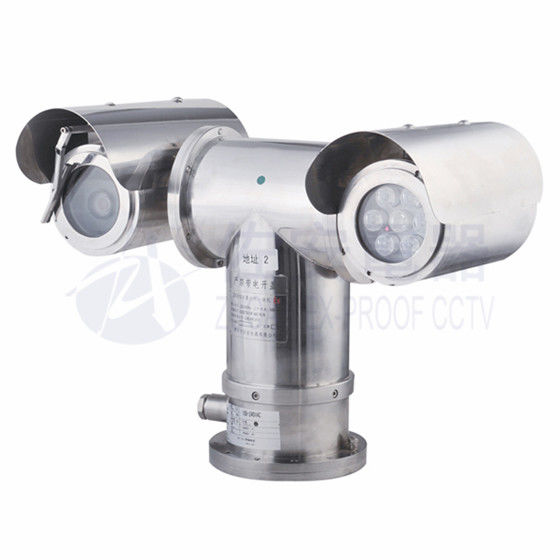

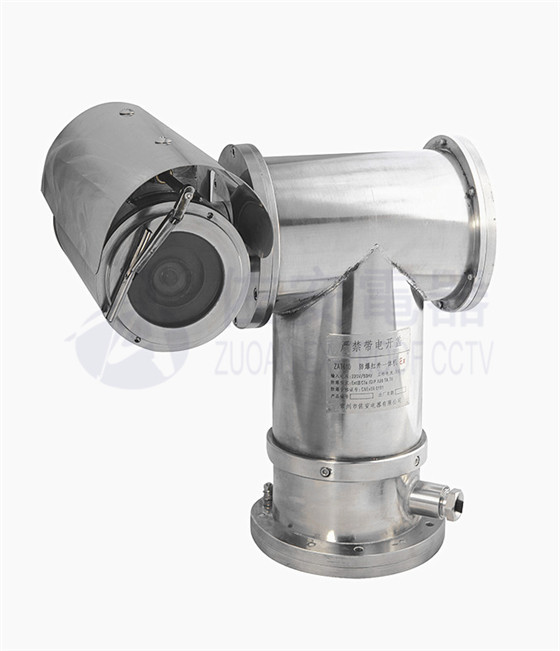

    ZAT610 is featured as explosion proof pan and tilt thermal imaging camera, which can load CCD camera and thermal camera. It is widely applied for marine, chemical factory, rig floor, oil field.

    If your security and surveillance needs include monitoring extreme, flammable, and explosive environments, marine corrosion environment, the ZUOAN ZAT610 is built for your environment. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAT610 explosion proof ptz camera regards as an integrated explosion proof video supervising system, which consists of explosion proof enclosure. infrared thermal imaging camera,germanium front window,wiper system, heater module, pan/tilt and decoder. The 316L, stainless steel housing is IP68 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.

    Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with infrared array light for night vision.



    Applications:

    With stringent certifications, explosion proof ptz camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



     Data sheet:

    Model ZAT610-IR
    Crust stainless steel 316L
    Camera type

    2.0MP, 20X optical zoom

    color min 1.5lux; B&W 0.1Lux

     focal length: 4.45-89mm

    Explosion proof certified Exd II CT6 & DIP A20, TA, T6
    certification No. CNEx13.3111
    Weather proof IP68
    Running speed 0.1-45°/S
    Running angle horizontal 360 °, vertical ± 90°
    preset point 128 points
    function auto scanning, auto cruise, keep watch
    equipped wiper system, sunshield,
    power input AC24V, AC220V, AC85-265V
    operate temperature

    -25~65°C

    lower temperature type: -50~65°C

    Control  RS485, Pelco-D / Pleco-P
    Signal output RJ45
    Netweight 27Kg
    CCD camera 36X 550TVL analog camera
    thermal camera

    640*512pixel; 17μm,

    336*256pixel; 17μm,

    324*256pixel; 25μm,

    Lens 7.5mm, 9mm,13mm, 19mm, 25mm,35mm,50mm

    Details images:

    Explosion Proof Pan and Tilt Thermal Imaging Camera For Marine

    Thermal imaging camera:

    1. 160x120 pixels, 384x288,640x480 pixels , 17μm, 25um pixel pitch
    2. NETD<65mk
    3. Compact and lightweight
    4. Analog/Digital video output
    5. RS232/RS485 interface

    Made in China! thermal camera coreMade in China! thermal camera coreMade in China! thermal camera core
