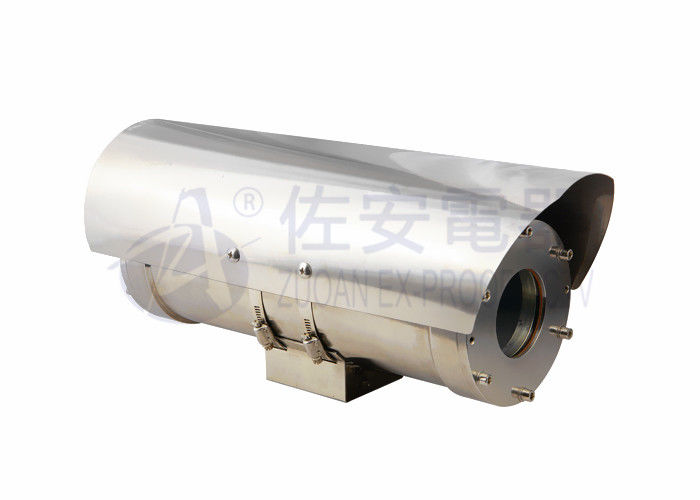

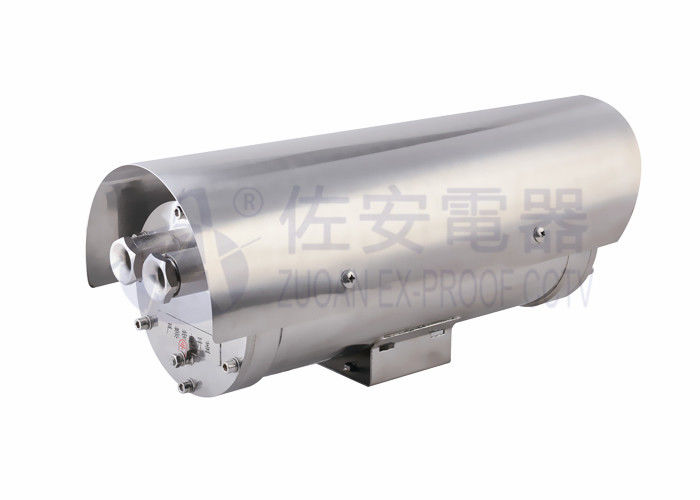

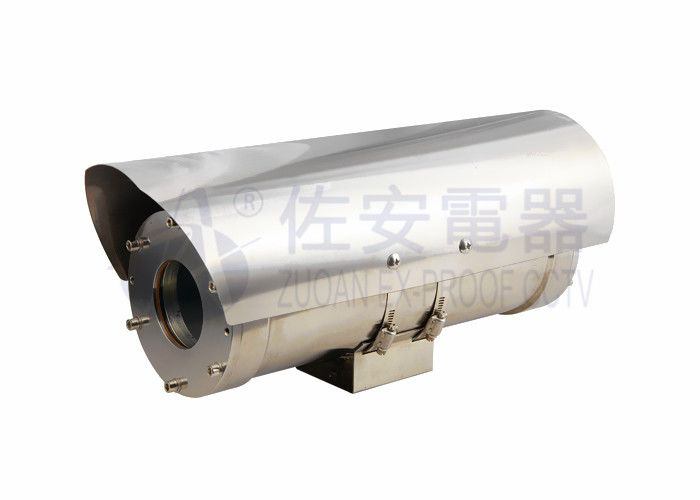

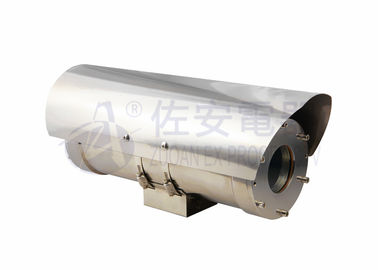

Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement

Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement

    • Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement
    • Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement
    • Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement
  • Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement

    Product Details:

    Place of Origin: Changzhou China
    Brand Name: ZUOAN
    Certification: CNEx
    Model Number: ZAF100C-IR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 5500-8500USD
    Packaging Details: firm carton
    Delivery Time: 15 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Or 316L Enclosure: Explosion Proof
    Certificate: ExdⅡC T6 Gb / Ext D A21 IP68 T80℃ Certificate No.: CNEx17.1573
    Camera: Thermal Camera Function: Online Temperature Measurement
    Cable Thread Hole: 2pcs G3/4 Or NPT3/4 Sunshield: Yes
    Resolution: 384*288 Pixel Pitch: 17μm
    Spectral Band: 7.5~14μm Focus: Manual Or Auto
    Power: DC12V Or AC85-265V

    Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement



    Explosion proof thermal imaging camera summary:



    ZAF100C is ZUOAN 2017 year new developed explosion proof thermal imaging camera, which featured as online temperature measurement. Its enclosure is made of stainless steel 304 or 316L material. This product get the explosion proof certificate, which weather proof is IP68 rated. ZAF100C can apply for industry hazardous area, with explosive gas, oil, chemcials and powders. Its thermal imgaing camera is 384*288 resolution. Its lens can be manual and auto control. various lens optional, such as 6.5mm, 10mm, 15mm, 25mm, 40mm. Online temperature measurement range is multiple,  the max temperature can reach to 1600℃. this thermal imaging camera also has professional online analysis software to meet client requirement.



    Explosion proof thermal imaging camera features:



    • get CNEx explosion proof certficate
    • weather proof is IP68
    • adopts stainless steel 304 or 316L enclosure
    • IR glass for thermal imaging cameras

    • thermal imaging camera
    • 384*288 resolution
    • 17μm pixel pitch
    • frame up to 50 Hz
    • lens focus is manual or auto
    • Min focus distance is 0.3m
    • Verious lens: 6.5mm, 10mm, 15mm, 25mm, 40mm
    • online temperature can be -20 to 150℃, -20 to 300℃, 20-500℃, 150-1000℃, 250-1600℃.

    Explosion Proof Thermal Imgaing Camera for Online Temperature MeasurementExplosion Proof Thermal Imgaing Camera for Online Temperature Measurement



    Explosion proof thermal imaging camera specifications:



    Certificate

    Certificate Mark ExdⅡC T6 Gb / Ext D A21 IP68 T80℃
    Certificate No CNEx17.1573
    Standards Q/320412ZAF001-2017



    Mechanical

    Housing Stainless steel 304 or 316L
    IP IP68
    Cable thread hole 2pcs G3/4 or NPT3/4
    Sun-shield Yes
    Wiper Yes



    Electrical

    Voltage AC85V~AC265V or DC24Vor AC24V, DC12V
    Power 2.0W



    Ambient

    Ambient temperature -25 to +60℃ / -45 to +80℃
    Air pressure 80Kpa to 106Kpa
    Relative Humidity ≦95% (no condensation)



    Communication

    VIdeo output support analog video output
    Temperature data output RJ45
    Series port RS485
    I/O

    Input: FFC trigger, capture trigger, detection trigger Output: alarm signal

    Protocol

    RTSP, ONVIF, HTTP, FTP, TCP, UDP, IP, DHCP, ARP, ICMP

    IP assignment



    Dynamic IP / static IP selectable. DHCP server integrated at control terminal

    Networking mode

    Direct connection / connection through LAN



    Camera

    Image Sensor

    Focal plane array, uncooled microbolometer

    Resolution 384*288
    pixel pitch

    17μm

    Max frame rate 50Hz



    Lens

    Lens 6.5mm, 10mm, 15mm, 25mm, 40mm
    Focus

    Manual /auto

    Minimum focus distance

    0.3m

    Radiance correction

    adjustable range: 0.01~1.0

    Background temperature correction

    Auto correction by user background temperature input

    Temperature indication

    mouse click

    Temperature Measurement Mode

    Max/min temperature point tracking, image average temperature measurement, temperature measurement of user defined probes of interest

    Auxiliary temperature analysis



    Relative temperature analysis, temperature histogram analysis, historical temperature graphs, line temperature graphs

    Frame freeze

    Support

    Display enhancement

    Automatic/manually image stretching, detail enhancement technology, image brightness and contrast adjustment

    Palette

    10 Palettes: including grayscale, grayscale inverted, ironbow, hot metal, etc.

    Digital zoom

    2X, 4X



    General

    Cable integrated cable
    Size 472*195*194mm
    Weight 9.5kg
    Mounted wall, pole
    Wall bracket ZAZ100B



    Temperature measurement

    Model Temperature range Max frame rate Accuracy Remarks
    ZA32AT    20 to 45℃ 25Hz 0.5℃ Human temperature
    ZA32A  -20 to 150℃ 50Hz 2℃ or 2% Normal
    ZA32T  -20 to 300℃ 50Hz 2℃ or 2% Normal
    ZA32MT  20 to 500℃ 50Hz 2℃ or 2% media high temperature
    ZA32HT  150 to 1000℃ 50Hz 2% High temperature
    ZA32HHT  250 to 1600℃ 50Hz 2% High temperature



    Optional Lens

    Focus FOV D/R/I for human Detective for vehicle
    6.5mm 56.6*42.8º

    240m/60m/30m

    540m
    10mm 37.4*28º

    370m/90m/50m

    800m
    15mm 26*20º

    540m/140m/70m

    1100m
    25mm 15*11.5º

    850m/210m/110m

    1700m
    40mm 9.4*7.1º

    1300m/320m/160m

    2400 m
    60mm 6.3*4.7º

    1800m/440m/220m

    3200m





    Explosion Proof Thermal Imgaing Camera for Online Temperature Measurement



    Explosion proof thermal imaging camera accessories:

    Explosion Proof Thermal Imgaing Camera for Online Temperature MeasurementExplosion Proof Thermal Imgaing Camera for Online Temperature Measurement
                    ZANXG Exe flexible tube                                 ZAZ100B wall bracket
