Fully Sealed 17inch LED Explosion Proof Monitor for Industry Hazardous Area

Fully Sealed 17inch LED Explosion Proof Monitor for Industry Hazardous Area

Brand Name: ZUOAN
Model Number: ZAJS400
MOQ: 1 set
Price: EXW
Payment Terms: 100% TT
Supply Ability: 300 set per month
Detail Information
Place of Origin:
China
Certification:
CNEX
Features:
Explosion Proof Type
Screen:
17 Inch
Material:
Stainless Steel Enclosure
Resolution:
1280*1024 Pixel
Contrast:
1000:1
Cable Output:
VGA Or Coaxial Cable
Power Input:
AC220V, AC24V
Packaging Details:
wooden box
Product Description

Carbon Steel  LED 15 inch  Explosion Proof Monitor for Industry Hazardous Area

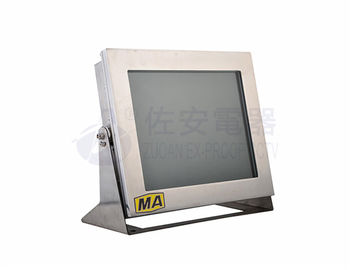

Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area 0

Product summary:



explosion proof monitor is the specialized equipment which is designed for the explosion proof industry TV supervision. It changed the situation that the monitor only can put the control room. It also can provide the clear and direct supervision visual, and greatly increase the flexibility of the system configuration. It has VAG interface and standard video interface, support PAL and NTSC standard.
Display window takes the special steel flat glass, it is tough and durable, as well as make sure the visual quality. The installation of the explosion proof camera mainly is the direct display on the table and platform also can use the special bracket.



Product Parameter:

Explosion Proof Marking: ExdⅡBT6/DIP A21 TA, T6
Material: stainless steel 304 crust
Enclosure protection: IP66
Weight: 13kg
Outer dimension: 348*200*441mm
Installation method: vertical display or lifting by a special bracket
Input voltage: from DC24V
Screen dimension: 15 inch
Resolving rate: 1280X1024
View angle: 170°



Download Data Sheet Here:



17inch Explosion Proof Monitor-ZAJS400 series data sheet.pdf



Data sheet:



Model ZAJS400-15
crust carbon steel, stainless steel 304/316L
explosion proof marking Exd II BT6 &DIP A20, TA, T6
explosion proof certification CNEx13.4246
application gas zone 2, dust zone 20, 21, 22
Working temperature -40~65°C
IP rated IP66
Screen size 15inch LED
Max resolution 1280*1024
brightness 250cd/m2
Ratio 4:3
visible angle (H/V) 170°/160°
display color 16.7M
filter 3D filter
life time 30000 hours
compatible Samsung UI, VESATM DPM
power input AC85-265V, (AC220V)
working current ≤500ml
power <50W
video input AV or VGA
cable 2 core power cable, 1 coaxial cable
cable threaded hole  2 sets G3/4  (or NPT3/4)
Net weight 13Kg
Overall dimension 441(L) mm×200(W) mm×384mm (H)



Applications:



With stringent certifications, 15inch explosion proof cctv monitor is widely applying  for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.





Technical Drawings:

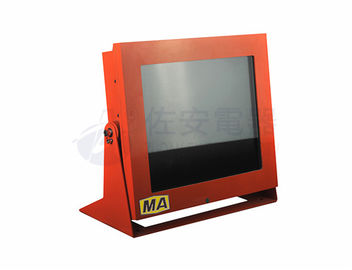

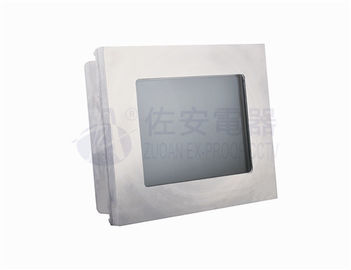

Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area 1           Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area 2



Other products:

Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area 3

Fully Sealed  17inch LED  Explosion Proof Monitor for Industry Hazardous Area 4





Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
