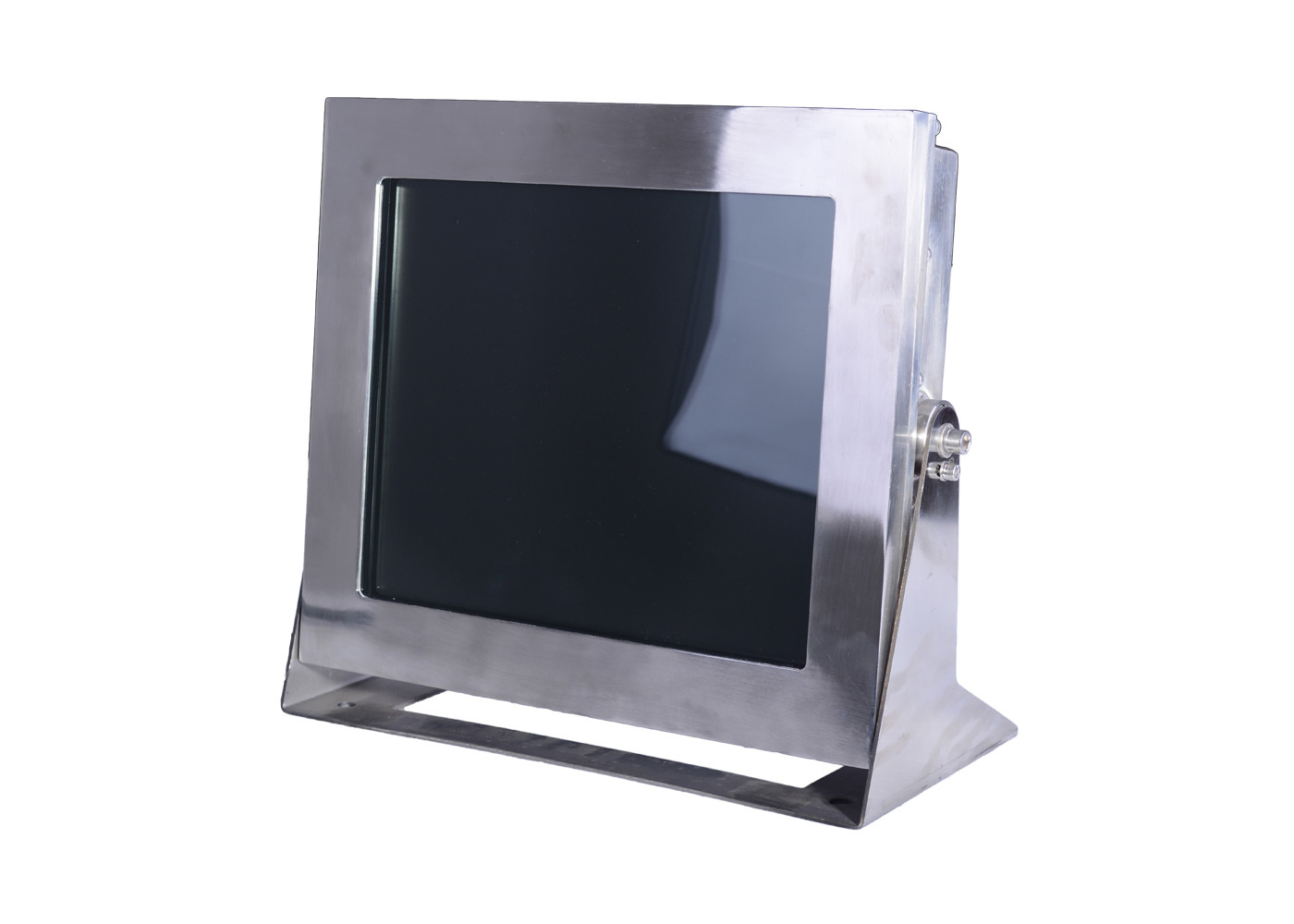

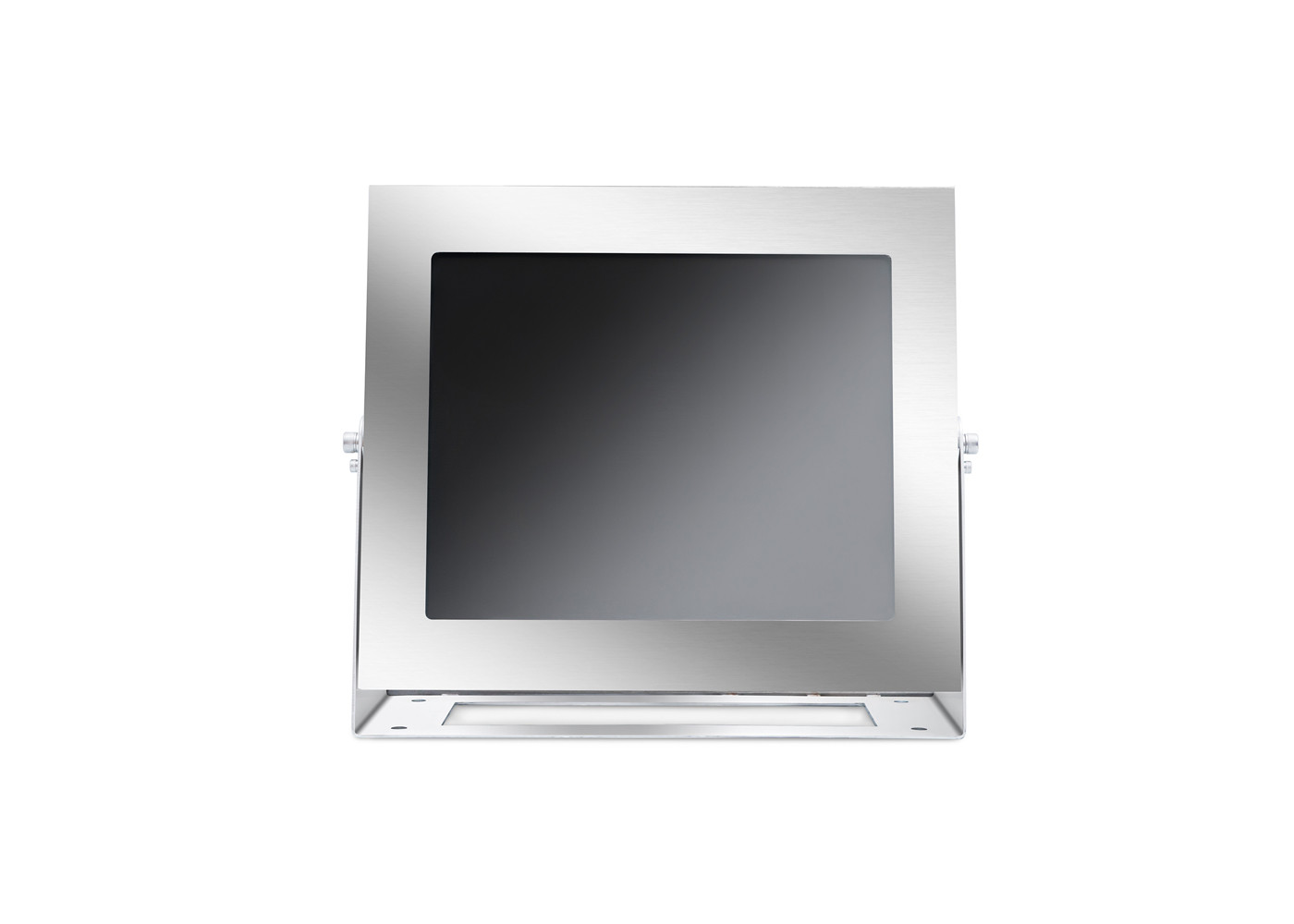

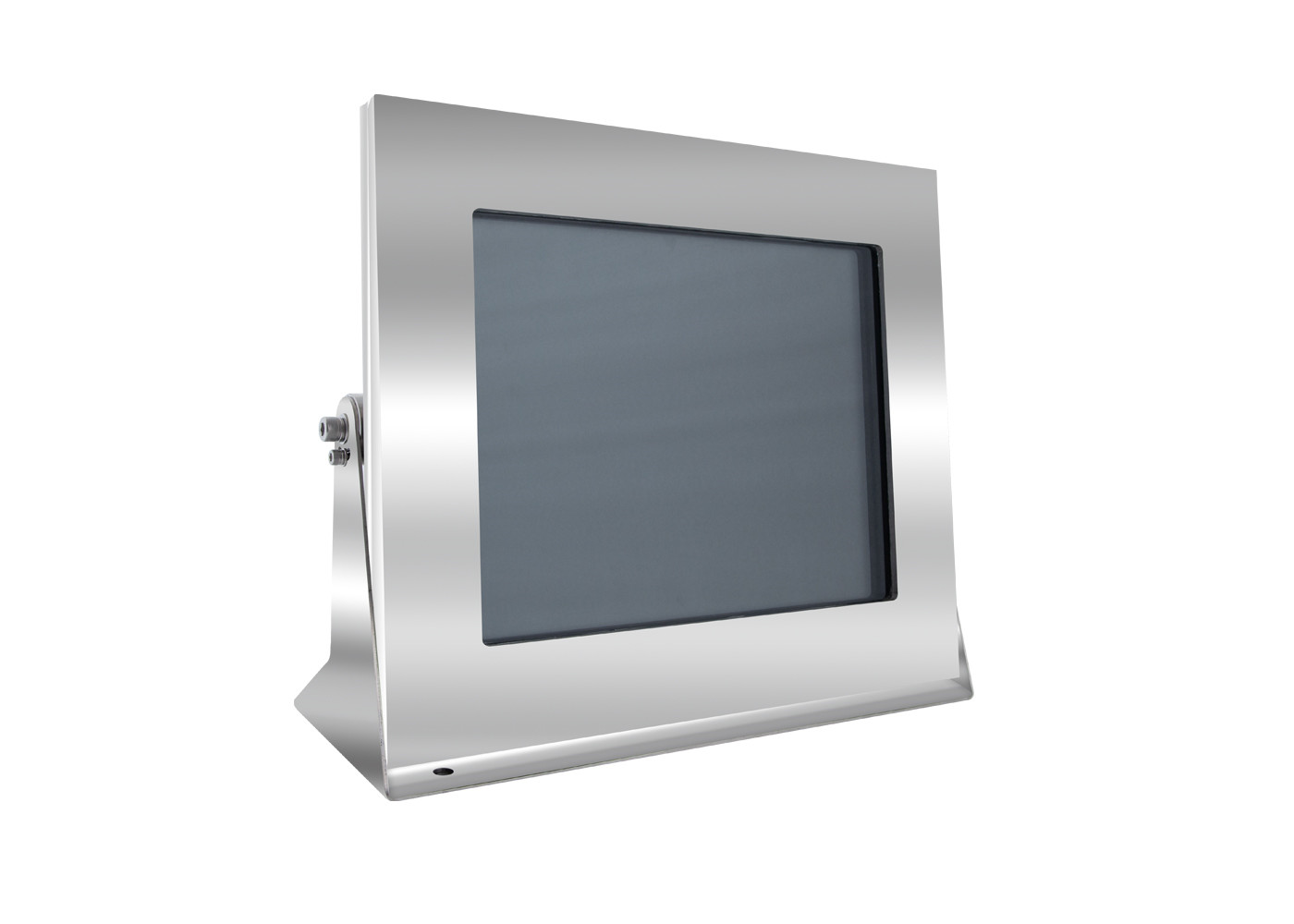

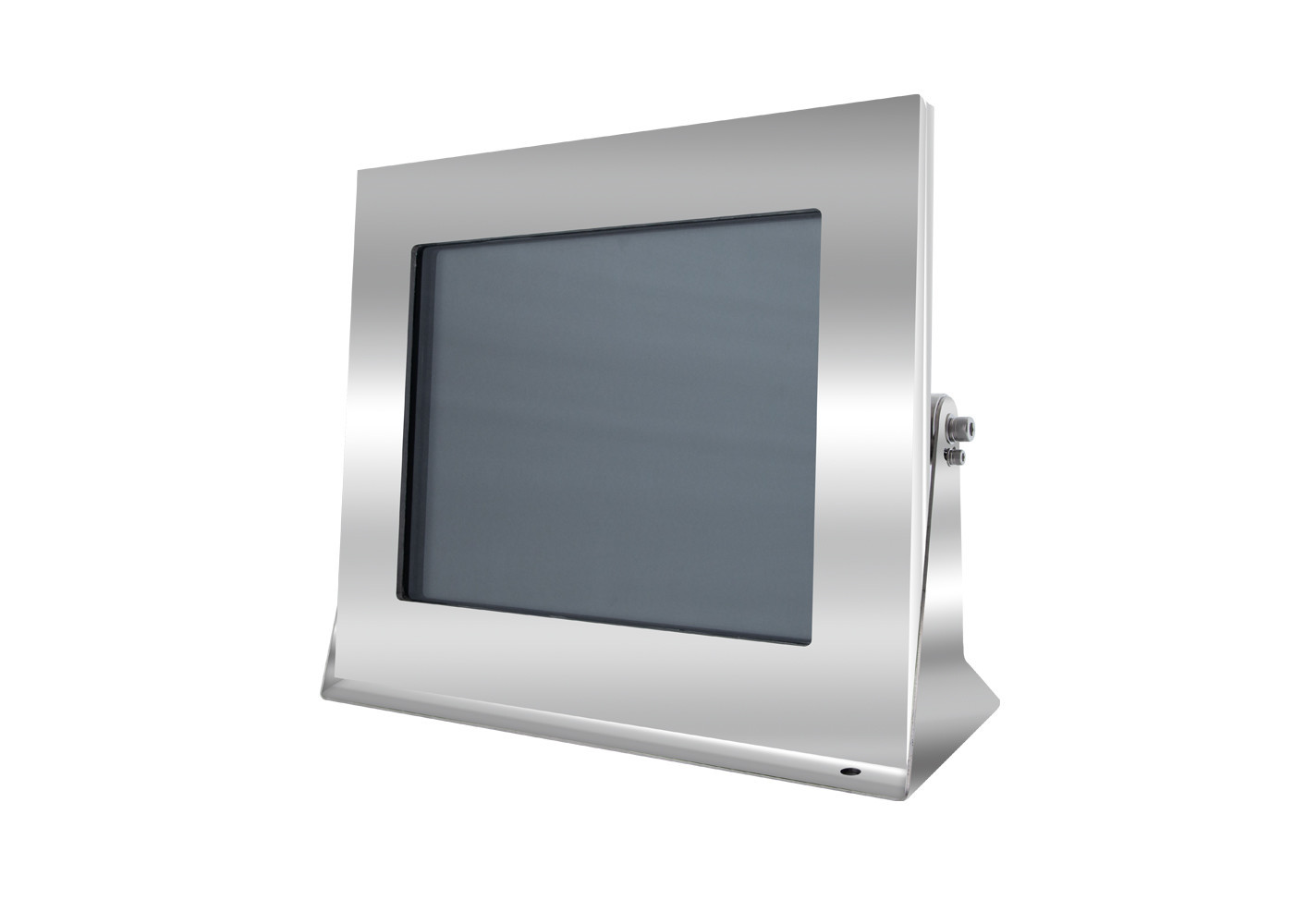

ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof Monitor With Optical Fiber Ouput

ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof Monitor With Optical Fiber Ouput

    • ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor With Optical Fiber Ouput
    • ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor With Optical Fiber Ouput
    • ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor With Optical Fiber Ouput
    • ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor With Optical Fiber Ouput
  • ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor With Optical Fiber Ouput

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: ATEX, IECEx
    Model Number: CZ400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 5000USD to 7000USD per set
    Packaging Details: wooden box
    Delivery Time: 15 days
    Payment Terms: 100% TT, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 set per month
    Contact Now
    Detailed Product Description
    Screen: 17 Inch Monitor Material: Stainless Steel 304 Or Carbon Steel
    Certificate: ATEX, IECEx IP: IP68
    Resolution: 1280*1024 Cable Thread Hole: 1pcs Or 2pcs M25*1.5
    Voltage: AC100-240V, DC24V, AC24V Power : 50W
    Brightness: 300cd/m2 Contrast: 1000:01:00
    Color: 16.7M Connector Port: VGA Or BNC
    Size: 473*200*396mm Weight: 38kg

    ATEX IECEx Certified Stainless Steel  LED 17 inch  Explosion Proof  Monitor With Optical Fiber Output



    ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor With Optical Fiber Ouput

    Product summary:



    CZ400 series is ZUOAN developed ATEX and IECEx certified explosion proof monitor, which is apply for gas zone 1, 2, and dust zone 21, 22.

    If client would like to have fiber optical cable transmit, CZ400-F can fit your requirement.

    Explosion proof monitor is the specialized equipment which is designed for the explosion proof industry TV supervision. It changed the situation that the monitor only can put the control room. It also can provide the clear and direct supervision visual, and greatly increase the flexibility of the system configuration. It has VAG or HDMI interface and standard video interface, support PAL and NTSC standard.
    Display window takes the special steel flat glass, it is tough and durable, as well as make sure the visual quality. The installation of the explosion proof camera mainly is the direct display on the table and platform also can use the special bracket.





    Product Parameter:



    Explosion Proof Certified: ATEX, IECEx
    Material: stainless steel 304 crust, optional stainless steel 316L
    Enclosure protection: IP68
    Weight: 38kg
    Outer dimension: 473*396*200mm
    Installation method: vertical display or lifting by a special bracket
    Input voltage:AC100-240V, or AC24V, or DC24V
    Screen dimension: 17 inch
    Resolving rate: 1280X1024
    View angle: 170°

    Video output interface: HDMI VGA, BNC,









    Data sheet:

    Model CZ400
    crust carbon steel, stainless steel 304
    explosion proof certification ATEX, IECEx certified
    application gas zone 2, dust zone 21, 22
    Working temperature -40~60°C
    IP rated IP68
    Screen size 17inch LED
    Max resolution 1280*1024
    brightness 250cd/m2
    Ratio 4:3
    visible angle (H/V) 170°/160°
    display color 16.7M
    filter 3D filter
    life time 30000 hours
    compatible Samsung UI, VESATM DPM
    power input AC100-240V, or AC24V, or DC24V
    working current ≤500ml
    power <50W
    video input interface BNC or VGA or HDMI
    cable

    2 core power cable, 1 coaxial cable

    Optical fiber output (optional)

    cable threaded hole 1 or 2 sets M25*1.5
    Net weight 38Kg
    Overall dimension 473(L) mm×396(W) mm×200mm (H)



    Applications:



    With stringent ATEX, IECEx certifications, 17nch explosion proof cctv monitor is widely applying  for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments(gas zone 1, gas zone 2, dust zone 21, dust zone 22),  such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
