Explosion Proof Turret Camera
Created with Pixso.

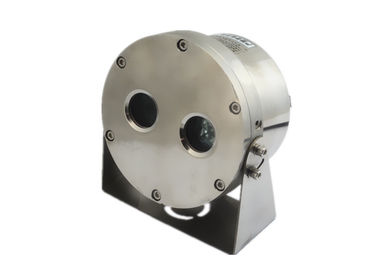

Explosion Proof environmental extremes Turret Camera of Marine Stainless Steel 316L

Explosion Proof environmental extremes Turret Camera of Marine Stainless Steel 316L

Brand Name: ZUOAN
Model Number: ZAF109
MOQ: 1pcs
Price: USD200-USD500 per set
Payment Terms: Western Union, MoneyGram, L/C, D/A, D/P, T/T,PAYPAL
Supply Ability: 50pcs per week
Detail Information
Place of Origin:
China, Changzhou
Certification:
CNEX
Resolution:
HD-720p
Camera:
AHD Camera
VIdeo Output:
1 Analog HD Output
Video Model:
HDTVI
Material:
Stainless Steel 316L
Certificate:
Explosion Proof
Apply:
Marine, Hazardous Area
Power Supply:
DC12V
Power Consumption:
Max 5W
Infrared Lights:
0-30m
Weather Proof:
IP68
Lens:
3.6mm
Min. Illumination:
0.001 Lux @(F1.2,AGC ON), 0 Lux With IR
Angle Of View:
74.6°(3.6mm)
Day& Night:
IR Cut Filter With Auto Switch
S/N Ratio:
More Than 62 DB
Horizontal Resolution:
950TVL
Wide Balance:
More Than 120dB
CVBS Output:
1Vp-p Composite Output(75Ω/BNC)
Packaging Details:
Firm carton whitin 1pcs ZAF109, 4.5kg
Product Description

HD-1080p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L





Explosion proof turret camera summary:



ZAF109 model is HD-1080p TVI explosion proof turret camera. Its horizontal resolution reach to 1100TVL. This Explosion proof turret camera video mode is 1channel analog HD output, which follows the HD-TVI standards. This explosion proof turret camera adopts marine corrosion proof stainless steel 316L material, so as to fit for high aggressive area. With explosion proof certificate, this turret camera can also apply for industry hazaroud area, such as oil tank truck, dangerous vehicle, refinery processing line or petroleum factory.





Explosion proof turret camrea features:

  • get explosion proof certficate
  • weather proof is IP68
  • adopts marine stainless steel 316 crust
  • Analog HD output, up to1080P resolution
  • true day and night
  • low illumination reach to 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
  • OSD menu, 3D DNR, Smart IR
  • EXIR technology, 20/40m IR distance
  • Up the Coax(HIKVISION-C, Pelco-C Protocol)
  • 2.0 Mega Progressive Scan CMOS



Explosion proof turret camera application:



Our HD-1080P TVI explosion proof turret camera is fit for industry area with explosive gas, oil, chemical and powders. With Ex d & Ex tD marking, it can apply for gas zone 1, zone 2; dust zone 21, and zone 22.  With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area.



Explosion proof turret camera data sheet down load:



ZAF109 TVI Explosion proof turret camera data sheet.pdf

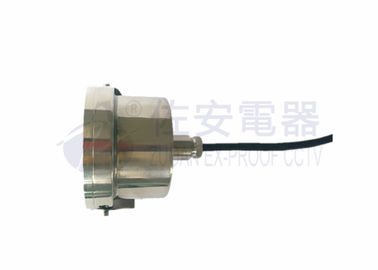

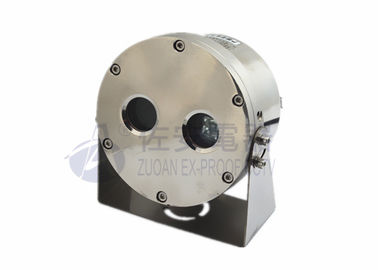

Explosion Proof environmental extremes Turret Camera of Marine Stainless Steel 316L 0Explosion Proof environmental extremes Turret Camera of Marine Stainless Steel 316L 1



Explosion proof turret camera specifications:



Certificate


Certificate Mark ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃
Certificate No CNEx16.2526
Standards Q/320412 ZAF033-2016



Mechanical

Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 1pcs G3/4 or NPT3/4



Electrical

Voltage DC12V
Power 5W



Ambient

Ambient temperature -25 to +60℃
Air pressure 80Kpa to 106Kpa
Relative Humidity ≦95% (no condensation)



Lights

Light distance 0-30m



Camera

Image Sensor 1.3  Mega Progressive Scan CMOS
Effective pixel 1312*993
Horizontal resolution 950TVL
Min. Illumination 0.01Lux @(F1.2, AGC ON) B/W: 0Lux with IR
Lens 3.6mm @ F2.0, view angle:75° (6mm, 8mm, 12mm)
Day& Night Auto ICR
Signal PAL
Synchronization Internal Synchronization
HD Video Output 1 Analog HD output (HD-TVI standard)
Video output 1 Vp-p composite output (75Ω/BNC)
SN rate More than 62 dB
Auto gain Lower/ middle/ high /off
Color Color/ B&W/ IR
White balance ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
Private protect On/off, 8 zones
Move detection On/off, 4 zones
BLC On/off
AGC Support
Exposure Totally exposure/ wide balance
Anti-flicker On/ Off
Function  Slow shutter, Mirror, Contrast radio, SMART D-ZOOM



General

Cable integrated cable
Size 158*144*167mm
Weight 4kg
Mounted wall, pole
Wall bracket ZAZ109B





Explosion proof turret camera drawings:

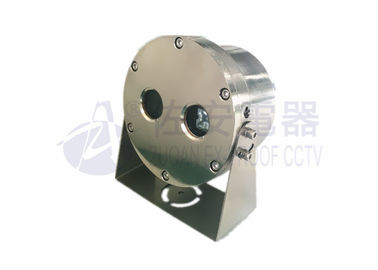

Explosion Proof environmental extremes Turret Camera of Marine Stainless Steel 316L 2



Explosion proof turret camera accessories:



  Explosion Proof environmental extremes Turret Camera of Marine Stainless Steel 316L 3 Explosion Proof environmental extremes Turret Camera of Marine Stainless Steel 316L 4

ZA-JXD4 Explosion Proof JB           ZANXG Exe Flexible Tube
