| Place of Origin: | China, Changzhou |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEx |
| Model Number: | ZAF109-AHD |
| Minimum Order Quantity: | 1set |
| Price: | USD300-USD500 per set |
| Packaging Details: | Firm carton whitin 1pcs ZAF109, 4.5kg |
| Delivery Time: | 7 days |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 50pcs per week |
| Material: | Stainless Steel 304 | Certificate: | Explosion Proof |
|---|---|---|---|
| Marking: | ExdⅡC T6 Gb/ Ex TD A21 IP68 T80℃ | Resolution: | HD720P |
| Type: | AHD Turret Camera | Feature: | Low-light |
| Min Illumination: | 0.001 Lux @(F1.2,AGC ON), 0 Lux With IR | VIdeo Output: | 1 Analog HD Output |
| Video Model: | HDTVI | Apply: | Fuel Tank Truck |
| Power Supply: | DC12V | Power Consumption: | 4.5W |
| Infrared Lights: | 0-30m | Weather Proof: | IP68 |
| Lens: | 3.6mm, Or 6mm | Angle Of View: | 74.6°(3.6mm), 49°(6mm) |
| Day& Night: | IR Cut Filter With Auto Switch | S/N Ratio: | More Than 62 DB |
| Wide Balance: | Auto / Manual | CVBS Output: | 1Vp-p Composite Output(75Ω/BNC) |

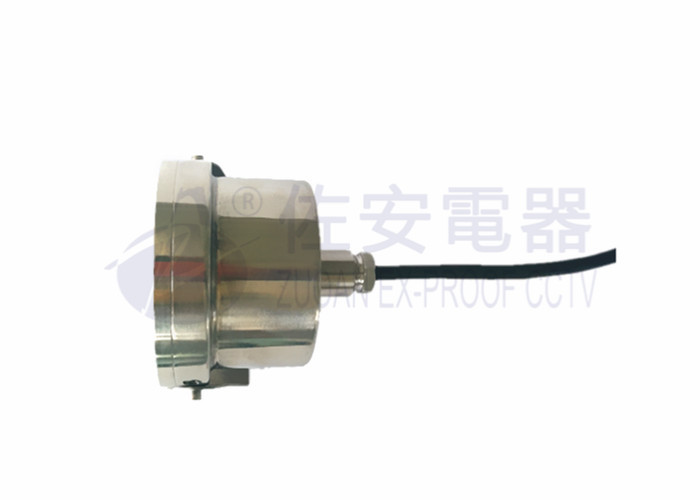

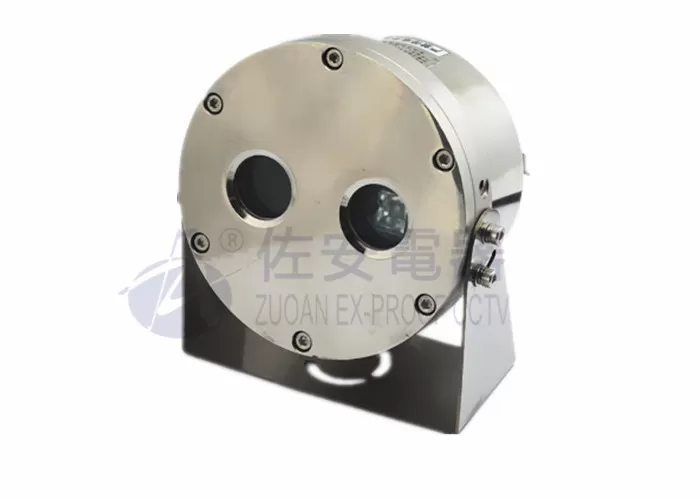

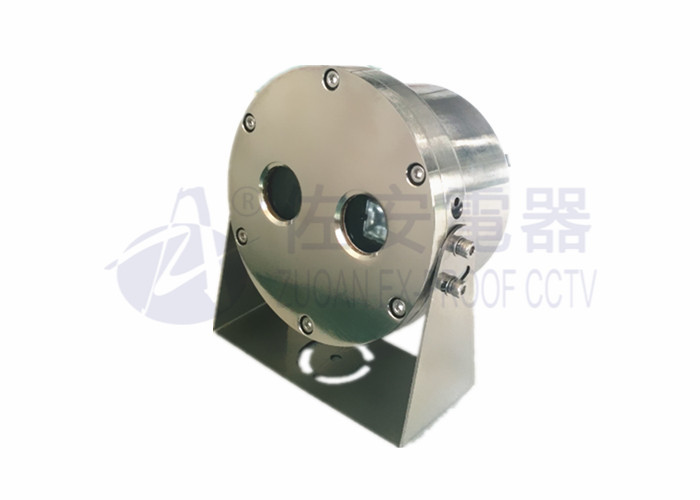

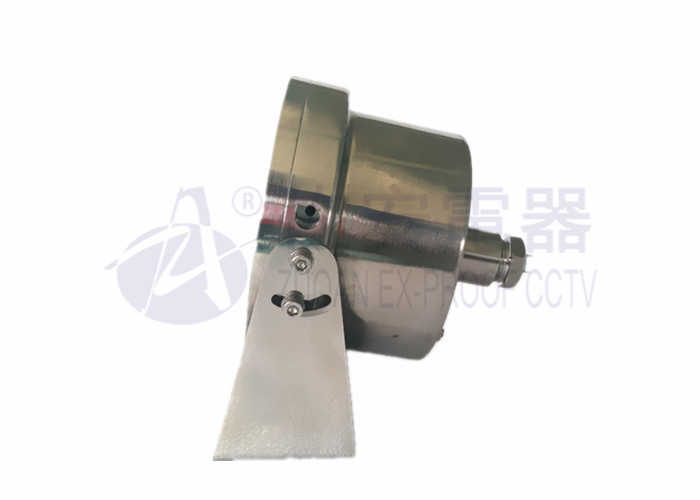

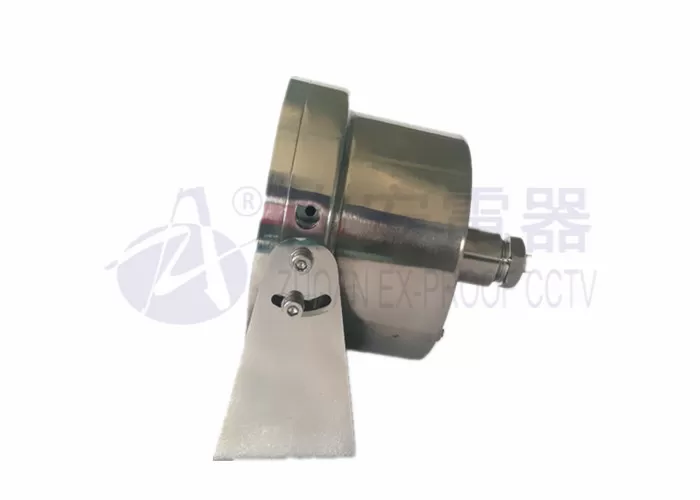

HD720P Low-light Explosion Proof Turret Camera For Fuel Tank Truck Mounted
Explosion proof turret camera summary
ZAF109-AHD is featured as low-light AHD explosion proof turret camera. Its min illumination can reach to 0.001 Lux @(F1.2,AGC ON). It is developed for dangerous goods truck surveillance, like fuel tank truck, chemical truck, oil or gas truck. It has high resolution of HD720P. Explosion proof turret camera supports analog HD output. It adopts EXIR technolog, and its infrared lights has 30m night vision distance. This turret camera has explosion proof enclosure, which is made of stainless steel material. Its front window glass is also the strong temperated glass. Its weather proof rate reaches to IP68, which fit for all kinds of weather condition.
Explosion proof turret camera features:
• 1.27 Megapixel high-performance CMOS
• Explosion proof type enclosure
• Analog HD output, up to 720P resolution
• True Day/Night
• OSD menu, 3D DNR, Smart IR
• EXIR technology, 20/40m IR distance
• IP68 weatherproof
• Low illumination
• Up the Coax(HIKVISION-C, Pelco-C Protocol)
• Fit for fuel tank truck mounted
Explsoion proof turret camera application:
Our ZAF109-AHD camera is developed for fuel tank truck mounted. The petrochemical factory, medicine processing line or oil storage filed is neccessary to choose the explosion proof turret camera. These place is called hazardous area, with explosive gas, oil, or chemicals. With marine stainless steel 316L crust, this explsoion proof turrrt camera can also apply for marine vessel.
Explosion proof turret camera data sheet down load:
ZAF109 TVI Explosion proof turret camera data sheet.pdf
Explosion proof turret camera specifications:
Certificate
| Certificate Mark | ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃ |
| Certificate No | CNEx16.2526 |
| Standards | Q/320412 ZAF033-2016 |
Mechanical
| Housing | Stainless steel 304 or 316L |
| IP | IP68 |
| Cable thread hole | 1pcs G3/4 or NPT3/4 |
Electrical
| Voltage | DC12V |
| Power | 4.5W |
Ambient
| Ambient temperature | -25 to +60℃ |
| Air pressure | 80Kpa to 106Kpa |
| Relative Humidity | ≦95% (no condensation) |
Lights
| Light distance | 0-30m |
Camera
| Image Sensor | 1.27 Mega high-performance CMOS |
| Effective pixel | 1312*993 |
| Min. Illumination | 0.001Lux @(F1.2, AGC ON) B/W: 0Lux with IR |
| Lens | 3.6mm @ F2.0, view angle:75° (6mm, 8mm, 12mm) |
| Day& Night | Auto ICR |
| Signal | PAL/NTSC |
| Synchronization | Internal Synchronization |
| HD Video Output | 1 Analog HD output (HD-TVI standard) |
| Video output | 1 Vp-p composite output (75Ω/BNC) |
| SN rate | More than 62 dB |
| Auto gain | Lower/ middle/ high /off |
| Color | Color/ B&W/ IR |
| White balance | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private protect | On/off, 8 zones |
| Move detection | On/off, 4 zones |
| BLC | On/off |
| AGC | Support |
| Exposure | Totally exposure/ wide balance |
| Anti-flicker | On/ Off |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
General
| Cable | integrated cable |
| Size | 158*144*167mm |
| Weight | 4kg |
| Mounted | wall, pole |
| Wall bracket | ZAZ109B |
Explosion proof turret camera drawings:
Explosion proof turret camera accessories:
ZA-JXD4 Explosion Proof JB ZANXG Exe Flexible Tube
