Heat Resistant Camera
Created with Pixso.

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera

Brand Name: ZUOAN
Model Number: ZAFC106
MOQ: 1 set
Price: 0-600 USD
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
CNEX
Type:
Analog Camera
Style:
Box Camera
Sensor:
CCD
Technology:
Heat Resistant
Special Features:
Heat Resistant
Ingress:
IP68
Housing:
Dual Layer Of Stainless Steel 304/316L
Camera:
Analog Camera, Metwork Camera
Weight:
9.1 KG
Cooling Media:
Water Or Air
Air Cooling:
Bear -25-150 °C
Packaging Details:
firm carton or wooden box
Product Description

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera



Main features:

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera 0

·CNEx certificated
·Adopts two layers of stainless steel 304 or 316L for high temperature resistant
·Surface finish: electropolished or corrosion resistant paint finish
·IP67
·2 cable glands
·Tempered glass with nanometer paint film
·Cooling way: compress air or auto running water
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

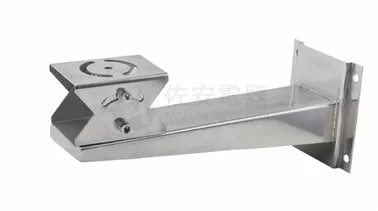

·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: lens decoder, auto-heating,
·Output: AV/optical fiber/twisted pair



Description:

ZAFC106 explosion proof heat resistant camera takes the double stainless steel, Dissection can be water, cold air and other cool media. It suits for the circumstances with high temperature, and with explosive gas and dust. The inner construction is broad, and can install any kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is high. It is widely used in steel, glass factory, furnance monitoring system.

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera 1



Data sheet:

Model ZAFC106-S-F
Explosion proof marking Exd II CT5, DIP A20, TA, T6
Explosion proof certification CNEx13.4248
Apply area

Gas zone 1, 2; Dust Zone 20, 21,22

furnace, steel mills factory, power factory

IP rated IP68
power input AC85-265V, AC24V
Material doubel layer of Stainless steel 304
Cooling type compressed air
air hole 1 set G1/2 or NPT1/2
cable hole 2 sets G3/4 (or NPT3/4)
Heat resist -25~150°C
Netweight 9.1Kg
Inner size for camera 260*80*80mm
overall dimension 388*163*185mm

Details images:

Stainless Steel High Temperature Furnace Applied 150 °C Heat Resistant Camera 2
