Commercial type Water Cooling Heat Resistant Camera Housing For Furnace

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CQST
Model Number: ZASC-001
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Weather Proof: IP68 Housing: Dual Layer Of Stainless Steel 304/316L
Weight: 3.5KG Cooling Media: Circulate Water
Temperature Resist Range: Bear 0-250 Degree Centigrade Housing Inner Size: 270*133*155mm

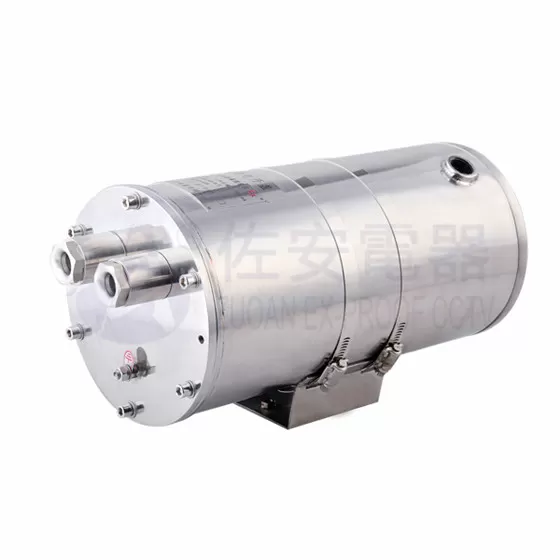

Commercial type Water Cooling Heat Resistant Camera Housing For Furnace



Main features:

Commercial type Water Cooling Heat Resistant Camera Housing For Furnace 0

*Adopts two layers of stainless steel 304 or 316L for high temperature resistant
*Surface finish: electropolished or corrosion resistant paint finish
*IP68
*2 cable glands
*Tempered glass with nanometer paint film
*Cooling way: compress air
* temperature resist: -15 to 150 degree centigrade
* inner size for camera:270*133*155mm
* net weight:3.5Kg
*applicable for the extreme circumstances with explosive gas or dust, like oven, furnace, steel mills, glass processing line.
*installation: mounted on ceiling, wall with pan &tilt, brackets.
* can load various cameras, like SONY, SAMSUNG, HIKVISION, DAHUA, PELCO, BOSCH





Download Data Sheet Here:



High Temperature Resist CCTV Camera Housing -ZAFC001,ZASC001 data sheet.pdf



Commercial type Water Cooling Heat Resistant Camera Housing For Furnace Description:

ZASC-001 coomercial type water cooling cctv camera housing takes the double stainless steel, Dissection can be circulate cooling water . It suits for the circumstances with high temperature, like steel factory, Coking plant, Power plant. The inner construction is 270*133*155mm,  and can install any kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is high. It is widely used in steel, glass factory, furnance monitoring system.







Details images:

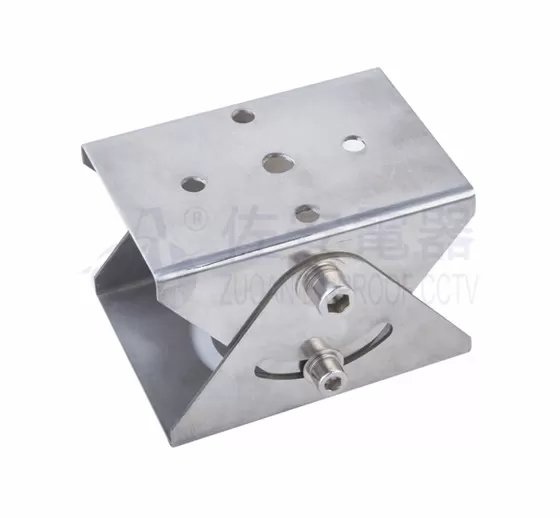

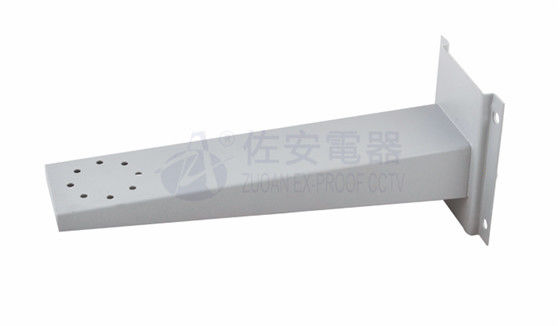

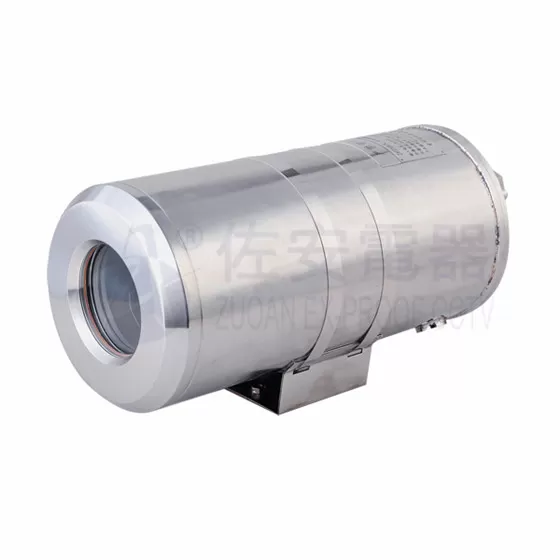

Commercial type Water Cooling Heat Resistant Camera Housing For Furnace 1



Data sheet:

Model ZASC001
Apply area

furnace, steel mills factory, power factory

IP rated IP68
power input AC85-265V, AC24V
Material doubel layer of Stainless steel 304
Cooling type Circulate running water
water hole 2 set G1/2 or NPT1/2
cable hole 2 sets G3/4 (or NPT3/4)
Heat resist 0~200°C
Netweight 3.5Kg
Inner size for camera 270*133*155mm
overall dimension 405*170*195mm
