Commercial Type Air Cooling Heat Resistant Camera Housing for Steel Mills Factory

Name: Commercial Type Air Cooling Heat Resistant Camera Housing for Steel Mills Factory
Brand: CHANGZHOU ZUOAN ELETRONICS CO., LTD.
SKU: ZAFC-001
Price: 600 USD
Availability: InStock

Brand Name:	ZUOAN
Model Number:	ZAFC-001
MOQ:	1 set
Price:	0-600 USD
Payment Terms:	100% TT before shipment
Supply Ability:	1000 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CQST

Weather Proof:

IP68

Housing Material:

Dual Layer Of Stainless Steel 304/316L

Weight:

3.5KG

Cooling Media:

Compressurized Air

Resist Temperature Range:

Bear -25-150 Degree Centigrade

Housing Inner Size:

270*133*155mm

Packaging Details:

firm carton or wooden box

Product Description

Commercial Type Air Cooling Heat Resistant Camera Housing for Steel Mills Factory

Main features:

Commercial Type Air Cooling Heat Resistant Camera Housing for Steel Mills Factory 0

*Adopts two layers of stainless steel 304 or 316L for high temperature resistant

*Surface finish: electropolished or corrosion resistant paint finish

*IP68

*2 cable glands

*Tempered glass with nanometer paint film

*Cooling way: compress air

* temperature resist: -25 to 150 degree centigrade

* inner size for camera:270*133*155mm

* net weight:3.5Kg

*applicable for the extreme circumstances with explosive gas or dust, like oven, furnace, steel mills, glass processing line.

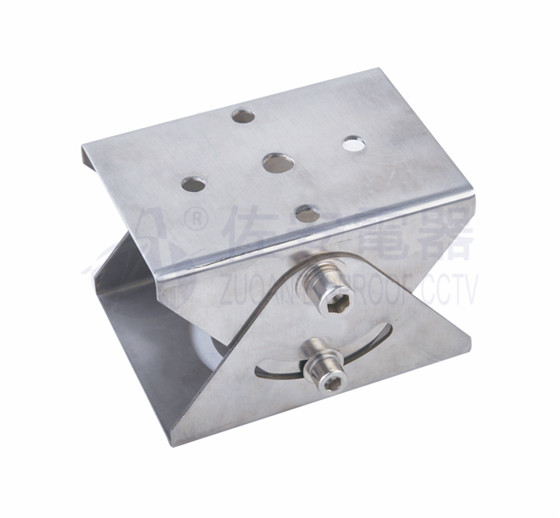

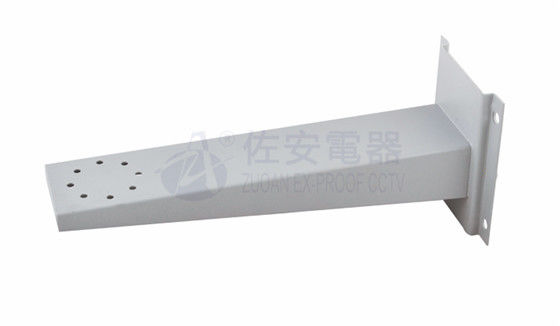

*installation: mounted on ceiling, wall with pan &tilt, brackets.

* can load various cameras, like SONY, SAMSUNG, HIKVISION, DAHUA, PELCO, BOSCH

Download Data Sheet Here:

High Temperature Resist CCTV Camera Housing -ZAFC001,ZASC001 data sheet.pdf

Commercial Type Air Cooling Heat Resistant Camera Housing for Steel Mills Factory Description:

ZAFC-001 air cooling heat resistant camera housing takes the double stainless steel, Dissection can br cold air . It suits for the circumstances with high temperature, like steel factory, Coking plant, Power plant. The inner construction is 270*133*155mm, and can install any kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is high. It is widely used in steel, glass factory, furnance monitoring system.

Commercial Type Air Cooling Heat Resistant Camera Housing for Steel Mills Factory 1

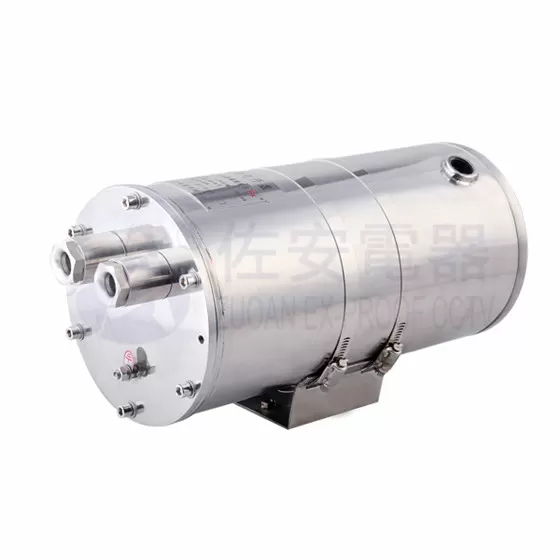

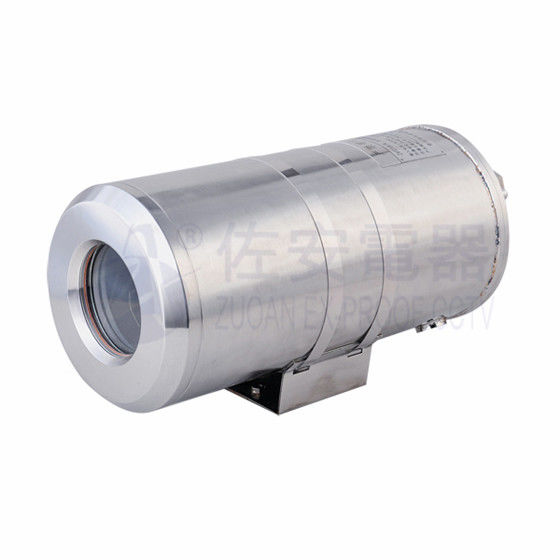

Details images:

Data sheet:

Model	ZAFC001
Apply area	furnace, steel mills factory, power factory
IP rated	IP68
power input	AC85-265V, AC24V
Material	doubel layer of Stainless steel 304
Cooling type	compressed air
air hole	1 set G1/2 or NPT1/2
cable hole	2 sets G3/4 (or NPT3/4)
Heat resist	-25~150°C
Netweight	3.5Kg
Inner size for camera	270133155mm
overall dimension	405170195mm
