| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | ISO |
| Model Number: | AXB |
| Price: | 1 |
| Packaging Details: | firm carton |
| Delivery Time: | usually in stock |
| Payment Terms: | 100% TT |
| Supply Ability: | 100 set per month |
| High Light: | pinhole lens,high temperature camera,furnace camera lens |
||
|---|---|---|---|

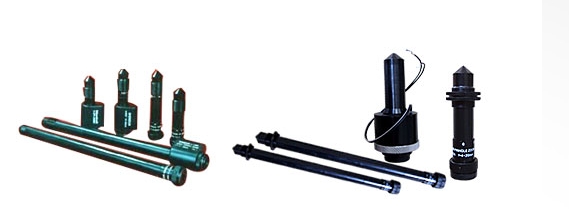

The pinhole lenses are designed for industrial process high temperature environments where observation windows area structurally recessed.lens length provides ability to position lens pinhole near or at the surface of observation window. And
the camera is 300mm distance from the higher temperature window surface area for robust longer term camera survive ability.enables ease of installation for additional camera cooling equipment.
Amazing technology, the pinhole lens series feature stainless steel housing for extreme durability in harsh environments. High temperature operation, up to 10 minutes at 1000 °C with sapphire and quartz front elements. Will withstand impact
from scatter sand at high temperature, extreme durability from gravel impact. These lenses are used in extreme harsh
industrial and hostile environments.
|
Model |
Focal length |
Aperature
|
FOV |
Image sensor format |
Mount |
Pinhole diameter |
Dimension (mm) |
Focal type |
||
|
Opposite angle |
horizontal |
vertical |
||||||||
|
AXB5A |
4.0-20.0mm |
F2.5-12.5 |
74-17° |
62-14° |
48-10° |
1/3” |
CS |
1.6 mm |
Φ20*99 |
Veri-focal |
|
AXB5B |
||||||||||
|
AXB5C |
Φ20*329 |
|||||||||
|
AXB5D |
||||||||||
|
AXB5E |
10.0-50.0mm |
33-7° |
27-5.5° |
20-4° |
4.0mm |
Φ20*120 |
||||
|
BXB5F |
||||||||||
|
EXP2.8 |
2.8mm |
1.0 |
110° |
98° |
81° |
1/2 |
2.8mm |
Φ30*100 |
Manual iris |
|
|
94° |
81° |
65° |
1/3 |
|||||||
|
EXP3.5 |
3.5mm |
1.4 |
98° |
85° |
69° |
1/2 |
2.5mm |
Φ29*110 |
||
|
81 |
69° |
54° |
1/3 |
|||||||
|
EXP4.5 |
4.5mm |
1.8 |
83° |
71° |
56° |
1/2 |
2.5mm |
Φ20*96 |
||
|
67° |
56° |
44° |
1/3 |
|||||||
|
EXP6 |
6.0mm |
1.8 |
67° |
56° |
44° |
1/2 |
3.3 |
Φ17.5*79 |
||
|
53° |
44° |
33° |
1/3 |
|||||||
|
EXZ2.8 |
2.8mm |
1.0 |
110° |
98° |
81° |
1/2 |
2.8 |
Φ30*100 |
||
|
94° |
81° |
65° |
1/3 |
|||||||
|
EXZ3.5 |
3.5mm |
1.4 |
98° |
85° |
69° |
1/2 |
2.5 |
Φ29*110 |
||
|
81° |
69° |
54° |
1/3 |
|||||||
|
EXZ4.5 |
4.5mm |
1.8 |
83° |
71° |
56° |
1/2 |
2.5 |
Φ20*96 |
||
|
67° |
56° |
44° |
1/3 |
|||||||
|
EXZ6 |
6.0mm |
1.8 |
67° |
56° |
44° |
1/2 |
3.3 |
Φ17.5*79 |
||
|
53° |
44° |
33° |
1/3 |
CS |
Manual iris |
|||||
|
SSL28Z |
2.8mm |
1.0 |
110° |
98° |
81° |
1/3 |
1.8 |
Φ20*99 |
Electric iris |
|
|
SSL04Z |
4mm |
1.4 |
74° |
62° |
48° |
1/3 |
1.8 |
Φ20*99 |
||
|
SSL06Z |
6mm |
1.8 |
53° |
44° |
32° |
1/3 |
1.8 |
Φ20*99 |
||
|
SSL08Z |
8mm |
2.0 |
36.5° |
28° |
13° |
1/3 |
1.8 |
Φ20*99 |
||
