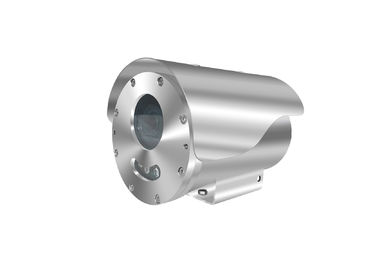

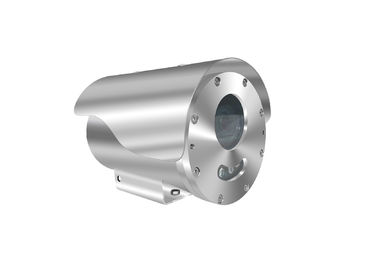

CZ109 4MP Varifocus Explosion Proof Network Infrared Bullet Camera for gas zone, dust zone
Summary:
CZ109 is ZUOAN new developed explosion proof bullet infrared camera in 2020 year, which is 4.0megapixel varifocus camera fit for gas zone 1, zone 2; dust zone 21, zone 22. This camera is motorized zoom lens from 2.8 to 12mm, and also adopts smart IR, up to 60m night vision distance.
CZ109 enclosure is made of stainless steel 304 and 316L material. Its window adopts toughened glass. At the top of enclosure, there is also a sunshade to anti sunlight and summer heat. CZ109 Explosion-proof Camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.
At the end of rear flange, there are 1 cable entry for 2m long pigtail cable thread by. This camera requires DC12V and POE.
All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The CZ109 explosion proof ATEX CCTV camera ingress protection level also reach to IP68(1.2m/45min).
Client are all welcomed to offer your brand camera tous. We also perfer assembly client camera into this ATEX CCTV camera housing.
Service Condition:
- Atmosphere pressure: 80～120kPa
- Ambient temperature: -20 ºC～+60 ºC
- Relative humidity: no more than 95% (+25ºC)；
Specifications:
| Model |
CZ109-4HD |
| Atmospheric pressure |
80KPa～110Kpa |
| Ambient Temperature |
–20°c～+60°C |
| Relative Humidity |
≤95% (+25°c) |
| Ex-proof mark |
Ⅱ2G Ex db ⅡC T6 Gb,
Ⅱ2D Ex tb ⅢC T80 ºC Db
|
| Ingress Protection |
IP68 |
| Housing Material |
Stainless Steel 304 or 316L |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max. Image Resolution |
4.0 megapixel |
| Frame Rate |
Main Stream: 4MP (2592*1520), Max 20fps;
Sub Stream: 720P (1280*720), Max 20fps;
Third Stream: D1 (704*576), Max 20fps
|
| Min. Illumination: |
0.01Lux @(F1.6,AGC ON),
0 Lux with IR
|
| Shutter |
Auto/ Manual, 1/100,000 sec |
| Lens |
2.8 - 12 mm, motorized lens |
| DORI Distance |
Lens(mm) |
Detect |
Observe |
Recognize |
Identify |
| 2.8 |
42 |
16.8 |
8.4 |
4.2 |
| 12 |
180 |
72 |
36 |
18 |
| Angle of View (H) |
112.7-28.1° |
| Angle of View (V) |
60.1-15.4° |
| Angle of View (O) |
146.5-33.2° |
| Day& Night: |
IR cut filter with auto switch |
| S/N |
>52dB |
| Image Enhancement |
2D/3D DNR |
| HLC, BLC |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 8 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| WDR |
DWDR |
| Video output |
1 RJ45 100M Base-TX Ethernet |
| Edge Storage |
MicroSD, Up to 256GB |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 type |
Baseline Profile, Main profile |
| Compatible |
ONVIF (Profile S, Profile G, Profile T), API |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatible integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Light night vision |
0-30m |
| Voltage Input |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption |
7.5w Max |
| Cable output |
Integrated cable, 2m long |
| Cable gland |
1pcs G3/4 or M25*1.5 |
| Overall dimension |
319*144*168mm (LxWxH) |
| Net weight |
7.5 kg |
Drawings:
CZ109 ATEX CCTV Camera Accessories:
wall bracket mount adapter Ex flexible tube
