|Type:||Digital Camera||Style:||Box Camera|
|Sensor:||CMOS||Technology:||Pan / Tilt / Zoom|
|Housing:||Stainless Steel 304||Laser Light:||300m Night Vision Distance|
|Camera:||2.2MP, 20X Optical Zoom Camera||Weight:||27KG|
|Pan And Tilt:||360 Degree Auto Tracking||Preset Patrol:||128 Points|

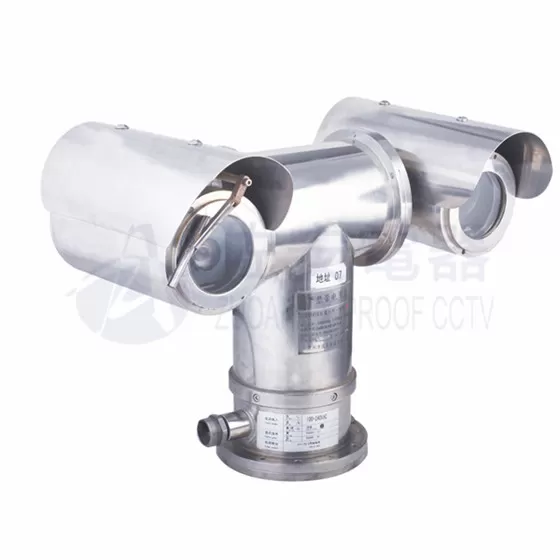

2.0MP 20X Long Range Night Vision Explosion Proof PTZ Camera With Laser Lights
·Stepping motor drive
·Adopts stainless steel 304
·Surface finish: electropolished or corrosion resistant paint finish
· cable gland
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

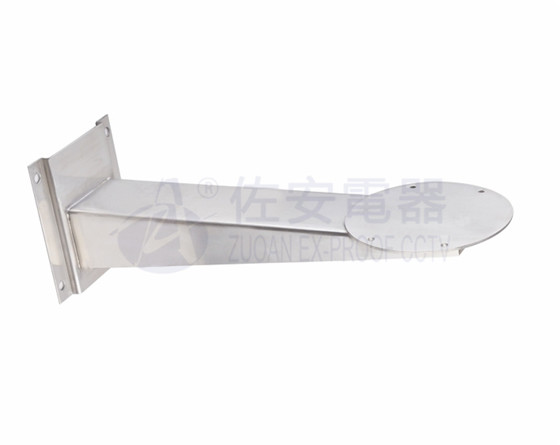

·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication : Pelco-D/ Pelco-P/TCP/IP
·Communication rate: 2400~19200bps
·Camera: 2.0MP 20X optical, zoom camera
·Telephoto limited speed: yes
·Variable angle: horizontal 360°, vertical ±90°
·Preset patrol: 256/ 128 points
·laser light: 300m night vision distance
Download Data Sheet Here:
2.0MP 20X Long Range Night Vision Explosion Proof PTZ Camera With Laser Lights Description:
our ZAT610-5 series 2MP 20X long range night vision explosion proof ptz camera with laser lights is developed for more extreme, flammable, and explosive environments, marine corrosion environment. It is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAT610-5 consists of explosion proof enclosure , laser lights, wiper system, heater module, pan/tilt and decoder. It is IP68 rated for all weather use and is corrosion/explosion resistant. Its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.
Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with laser light for night vision.
2.0MP 20X Long Range Night Vision Explosion Proof PTZ Camera With Laser Lights Applications:
With stringent certifications, explosion proof ptz camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
2.0MP 20X Long Range Night Vision Explosion Proof PTZ Camera With Laser Lights Data sheet:
|Crust||stainless steel 316L|
2.0MP, 20X optical zoom
color min 1.5lux; B&W 0.1Lux
focal length: 4.45-89mm
|Explosion proof certified||Exd II CT6 & DIP A20, TA, T6|
|Running angle||horizontal 360 °, vertical ± 90°|
|preset point||128 points|
|function||auto scanning, auto cruise, keep watch|
|equipped||wiper system, sunshield,|
|power input||AC24V, AC220V, AC85-265V|
lower temperature type: -50~65°C
|Control||RS485, Pelco-D / Pleco-P|
