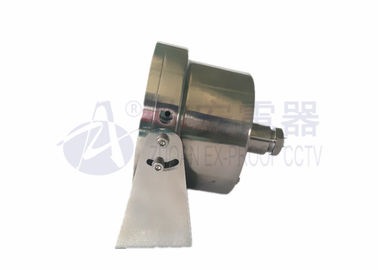

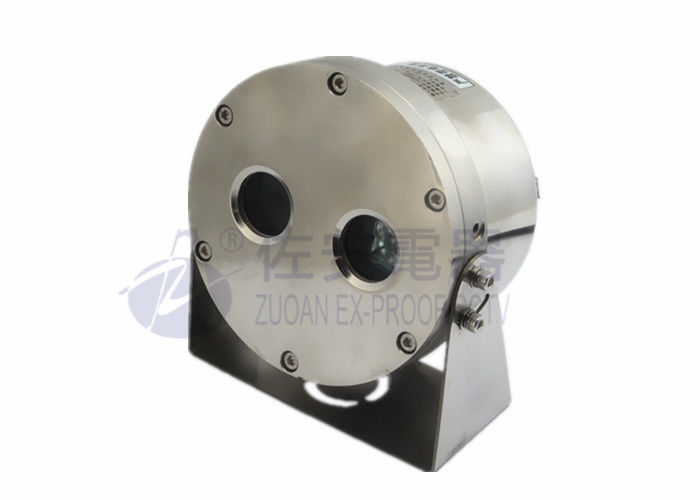

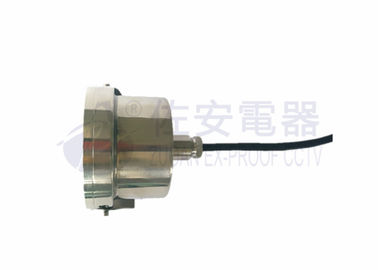

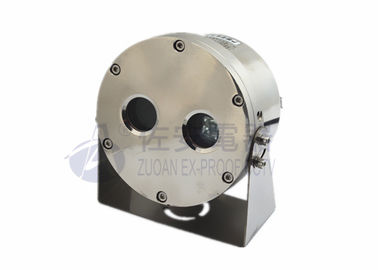

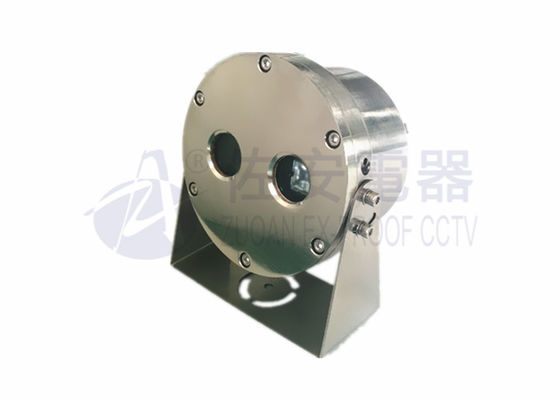

HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L

HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L

    • HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L
    • HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L
    • HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L
    • HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L
    • HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L
  • HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L

    Product Details:

    Place of Origin: China, Changzhou
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAF109

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD200-USD500 per set
    Packaging Details: Firm carton whitin 1pcs ZAF109, 4.5kg
    Delivery Time: 5-8 work days
    Payment Terms: Western Union, MoneyGram, L/C, D/A, D/P, T/T,PAYPAL
    Supply Ability: 50pcs per week
    Contact Now
    Detailed Product Description
    Resolution: HD-720p Camera: AHD Camera
    VIdeo Output: 1 Analog HD Output Video Model: HDTVI
    Material: Stainless Steel 316L Certificate: Explosion Proof
    Apply: Marine, Hazardous Area Power Supply: DC12V
    Power Consumption: Max 5W Infrared Lights: 0-30m
    Weather Proof: IP68 Lens: 3.6mm
    Min. Illumination: 0.001 Lux @(F1.2,AGC ON), 0 Lux With IR Angle Of View: 74.6°(3.6mm)
    Day& Night: IR Cut Filter With Auto Switch S/N Ratio: More Than 62 DB
    Horizontal Resolution: 950TVL Wide Balance: More Than 120dB
    CVBS Output: 1Vp-p Composite Output(75Ω/BNC)

    HD-1080p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L





    Explosion proof turret camera summary:



    ZAF109 model is HD-1080p TVI explosion proof turret camera. Its horizontal resolution reach to 1100TVL. This Explosion proof turret camera video mode is 1channel analog HD output, which follows the HD-TVI standards. This explosion proof turret camera adopts marine corrosion proof stainless steel 316L material, so as to fit for high aggressive area. With explosion proof certificate, this turret camera can also apply for industry hazaroud area, such as oil tank truck, dangerous vehicle, refinery processing line or petroleum factory.





    Explosion proof turret camrea features:

    • get explosion proof certficate
    • weather proof is IP68
    • adopts marine stainless steel 316 crust
    • Analog HD output, up to1080P resolution
    • true day and night
    • low illumination reach to 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
    • OSD menu, 3D DNR, Smart IR
    • EXIR technology, 20/40m IR distance
    • Up the Coax(HIKVISION-C, Pelco-C Protocol)
    • 2.0 Mega Progressive Scan CMOS



    Explosion proof turret camera application:



    Our HD-1080P TVI explosion proof turret camera is fit for industry area with explosive gas, oil, chemical and powders. With Ex d & Ex tD marking, it can apply for gas zone 1, zone 2; dust zone 21, and zone 22.  With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area.



    Explosion proof turret camera data sheet down load:



    ZAF109 TVI Explosion proof turret camera data sheet.pdf





    HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316LHD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L



    Explosion proof turret camera specifications:



    Certificate


    Certificate Mark ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃
    Certificate No CNEx16.2526
    Standards Q/320412 ZAF033-2016



    Mechanical

    Housing Stainless steel 304 or 316L
    IP IP68
    Cable thread hole 1pcs G3/4 or NPT3/4



    Electrical

    Voltage DC12V
    Power 5W



    Ambient

    Ambient temperature -25 to +60℃
    Air pressure 80Kpa to 106Kpa
    Relative Humidity ≦95% (no condensation)



    Lights

    Light distance 0-30m



    Camera

    Image Sensor 1.3  Mega Progressive Scan CMOS
    Effective pixel 1312*993
    Horizontal resolution 950TVL
    Min. Illumination 0.01Lux @(F1.2, AGC ON) B/W: 0Lux with IR
    Lens 3.6mm @ F2.0, view angle:75° (6mm, 8mm, 12mm)
    Day& Night Auto ICR
    Signal PAL
    Synchronization Internal Synchronization
    HD Video Output 1 Analog HD output (HD-TVI standard)
    Video output 1 Vp-p composite output (75Ω/BNC)
    SN rate More than 62 dB
    Auto gain Lower/ middle/ high /off
    Color Color/ B&W/ IR
    White balance ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
    Private protect On/off, 8 zones
    Move detection On/off, 4 zones
    BLC On/off
    AGC Support
    Exposure Totally exposure/ wide balance
    Anti-flicker On/ Off
    Function  Slow shutter, Mirror, Contrast radio, SMART D-ZOOM



    General

    Cable integrated cable
    Size 158*144*167mm
    Weight 4kg
    Mounted wall, pole
    Wall bracket ZAZ109B





    Explosion proof turret camera drawings:

    HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L



    Explosion proof turret camera accessories:



      HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L HD-720p TVI Explosion Proof Turret Camera of Marine Stainless Steel 316L

    ZA-JXD4 Explosion Proof JB           ZANXG Exe Flexible Tube
