Explosion Proof Monitor
Created with Pixso.

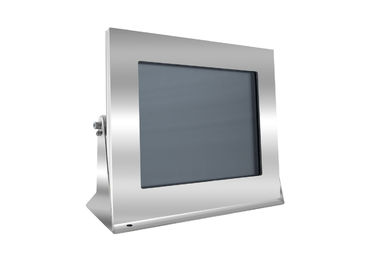

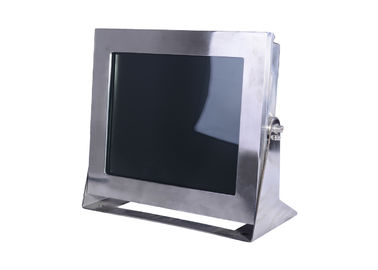

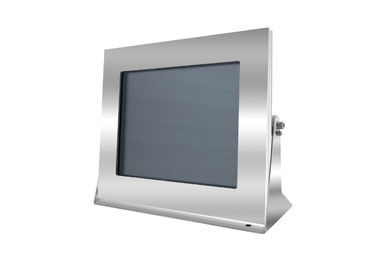

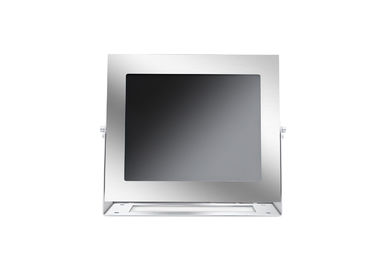

ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof Monitor for Gas Zone, Dust Zone

ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof Monitor for Gas Zone, Dust Zone

Brand Name: ZUOAN
Model Number: CZ400
MOQ: 1 set
Price: 5000USD to 7000USD per set
Payment Terms: 100% TT, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 set per month
Detail Information
Place of Origin:
China
Certification:
ATEX, IECEx
Screen:
17 Inch Monitor
Material:
Stainless Steel 304 Or Carbon Steel
Certificate:
ATEX, IECEx
IP:
IP68
Resolution:
1280*1024
Cable Thread Hole:
1pcs Or 2pcs M25*1.5
Voltage:
AC100-240V
Power :
50W
Brightness:
300cd/m2
Contrast:
1000:01:00
Color:
16.7M
Connector Port:
VGA Or BNC
Size:
473*200*396mm
Weight:
38kg
Packaging Details:
wooden box
Product Description

ATEX IECEx Certified Stainless Steel  LED 17 inch  Explosion Proof  Monitor for Gas Zone, Dust Zone



ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor for Gas Zone, Dust Zone 0

Product summary:



CZ400 series is ZUOAN developed ATEX and IECEx certified explosion proof monitor, which is apply for gas zone 1, 2, and dust zone 21, 22.

Explosion proof monitor is the specialized equipment which is designed for the explosion proof industry TV supervision. It changed the situation that the monitor only can put the control room. It also can provide the clear and direct supervision visual, and greatly increase the flexibility of the system configuration. It has VAG or HDMI interface and standard video interface, support PAL and NTSC standard.
Display window takes the special steel flat glass, it is tough and durable, as well as make sure the visual quality. The installation of the explosion proof camera mainly is the direct display on the table and platform also can use the special bracket.

If client would like to have fiber optical cable transmit,  CZ400-F can fit your requirement.



Product Parameter:



Explosion Proof Certified: ATEX, IECEx
Material: stainless steel 304 crust, optional stainless steel 316L
Enclosure protection: IP68
Weight: 38kg
Outer dimension: 473*396*200mm
Installation method: vertical display or lifting by a special bracket
Input voltage:AC100-240V, or AC24V, or DC24V
Screen dimension: 17 inch
Resolving rate: 1280X1024
View angle: 170°









Data sheet:

Model CZ400
crust carbon steel, stainless steel 304
explosion proof certification ATEX, IECEx certified
application gas zone 2, dust zone 21, 22
Working temperature -40~60°C
IP rated IP68
Screen size 17inch LED
Max resolution 1280*1024
brightness 250cd/m2
Ratio 4:3
visible angle (H/V) 170°/160°
display color 16.7M
filter 3D filter
life time 30000 hours
compatible Samsung UI, VESATM DPM
power input AC100-240V, or AC24V, or DC24V
working current ≤500ml
power <50W
video input interface BNC or VGA or HDMI
cable 2 core power cable, 1 coaxial cable
cable threaded hole 1 or 2 sets M25*1.5
Net weight 38Kg
Overall dimension 473(L) mm×396(W) mm×200mm (H)



Applications:



With stringent ATEX, IECEx certifications, 17nch explosion proof cctv monitor is widely applying  for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments(gas zone 1, gas zone 2, dust zone 21, dust zone 22),  such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



Technical Drawings:





ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor for Gas Zone, Dust Zone 1



Related Products:



ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor for Gas Zone, Dust Zone 2  ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor for Gas Zone, Dust Zone 3

               ZAJ320 Exd Controller                                     ZAJS400-Q Carbon steel type Monitor





Other products:

ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor for Gas Zone, Dust Zone 4

ATEX IECEx Certified Stainless Steel LED 17inch Explosion Proof  Monitor for Gas Zone, Dust Zone 5



Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
