ATEX CCTV Camera
Created with Pixso.

Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel

Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel

Brand Name: ZUOAN
Model Number: CZ100
MOQ: 1 unit
Price: USD 600-850 per set
Payment Terms: D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability: 50set per week
Detail Information
Place of Origin:
China, Changzhou
Certification:
ATEX, IECEx, CNEx
Type:
ATEX CCTV Camera
Certificate:
Explosion Proof
Material:
Stainless Steel 304, 316L
Resolution:
2 Megapixel HD
Camera:
Bullet Camera
Lens:
Auto Iris Manual Focusing
Power:
AC24V, DC12V, POE
Min Illumination:
Color 0.01lux, BW 0.001lux
Image Sensor:
1/2.8" Progressive Scan CMOS
Day& Night:
Auto IR Cut Filter
WDR:
120dB
Digital Noise Reduction:
3D DNR
Backlight Compensation:
Yes, Zone Optional
Connector:
RJ45
Temperature:
-40 To 60 ℃
Packaging Details:
firm carton box for 1 unit
Product Description

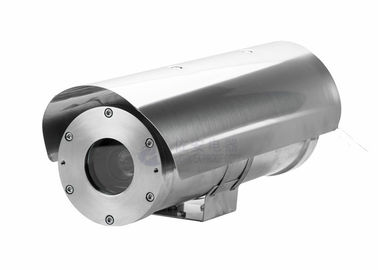

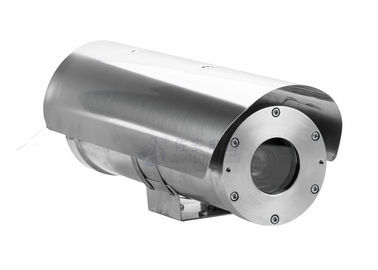

Explosion proof ATEX CCTV Camera in Stainless Steel Megapixel-HD Bullet Enclosure





ATEX CCTV camera summary:



CZ100 is Zuoan 2017 year new developed ATEX CCTV camera. It has get the ATEX, IECEx explosion proof certificate, which is fit for gas zone 1, zone 2, and dust zone 21,22. ATEX CCTV camera has reach to 2 megapixel-HD resolution, and its lens is manual focus type. It is ready to use bullet camera into the stainless steel enclosure. ATEX CCTV camera can support different voltage input, such as 220V, 110V, 85-265V, AC24V, DC12V or POE power supply. ATEX CCTV camera can also equipped with sunshiled and wiper system for heavy polluted area.





ATEX CCTV camera features:



  • get ATEX, IECEx, CNEx explosion proof certficate
  • weather proof is IP68
  • adopts stainless steel 304 or 316L enclosure
  • HD output, up to2 megapixel resolution
  • true day and night
  • low illumination reach to color 0.01Lux , BW 0.001Lux
  • Support POE power supply
  • 120dB wide dynamic range
  • 3D DNR & DWDR
  • other function: reset, hearbeat, mirror, PTZ control



ATEX CCTV camera application:



ATEX CCTV camera  is fit for hazardous area, hazardous location or explosive atmospheres, such as rig floor, gas station, oil refining, chemical factory, printing, papermaking, textile industry and coating industry. With stainless steel 316L crust, this explosion proof turret camera can also apply for marine area.







Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel 0Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel 1



ATEX CCTV camera specifications:



Explosion Proof CCTV Camera Data sheet:



CZ100
Crust stainless steel 304/ 316L
Explosion proof marking

Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel 2 Ⅱ2G Ex dⅡC T6 Gb, Ex t b ⅢC T80℃ Db

CNEx: Exd II CT6 & DIP A20, TA, T6

IP rated IP68
Power input AC85-265V, AC24V, DC12V, POE power supply
cable output 2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-40~60°C

Netweight 9.5Kg
Overall dimension 524*176*208mm
Optional wiper, sunshiled
Camera 2MP, 2.8-12mm varifocus lens
Min illumination color 0.01lux, BW 0.001lux
Feature

120 dB WDR,  3D DNR & DWDR,

Backlight compensation, reset, hearbeat, mirror, PTZ control

Connector RJ45





ATEX CCTV Camera Accessories:



Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel 3Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel 4Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel 5

       ZAZ100B wall bracket                        Ex connector                              Ex DVR, NVR box



ATEX CCTV Camera Solution:



Explosion proof Bullet Enclosure ATEX CCTV Camera in SUS304/316L Stainless Steel 6
