ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area

ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area

Brand Name: ZUOAN
Model Number: ZAFR125
MOQ: 1 set
Price: USD 1500- 3500 per set
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per month
Detail Information
Place of Origin:
China
Certification:
CNEX
Material:
Stainless Steel 304, 316L
Type:
Thermal Camera
Special Features:
Explosion-proof
Sensor:
Uncooled Vanadium Oxide Infrared Focal Plane Detector
Resolution:
640*480
Lens:
Fixed 9mm, 25mm, 35mm, 50mm,
Usage:
Industrial
Pixel Pitch:
12μm
Response Band:
8~14μm
Video Output:
Ethernet
Packaging Details:
carton box
Product Description

ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area



Explosion proof thermal imaging camera summary:



ZAFR125 series is ZUOAN 20121 year new developed explosion proof thermal imaging camera, which featured as power plant abnormal temperature test purpose . Its enclosure is made of stainless steel 304 or 316L material. This product get the explosion proof certificate, which weather proof is IP68 rated. ZAFR125 can apply for industry hazardous area, with explosive gas, oil, chemcials and powders. Its thermal imgaing camera is 640*480 resolution. Its lens can be manual and auto control. various lens optional, such as 9mm, 15mm, 25mm, 35mm, 50mm.



Explosion proof thermal imaging camera features:



  • get CNEx explosion proof certficate
  • weather proof is IP68
  • adopts stainless steel 304 or 316L enclosure
  • IR glass to protect thermal imaging cameras

  • thermal imaging camera
  • 640*480 resolution
  • 17μm pixel pitch
  • frame up to 50 Hz
  • lens focus is manual or auto
  • Min focus distance is 0.3m
  • Verious lens: 9mm, 15mm, 25mm, 35mm, 50mm

Explosion proof thermal imaging camera Specifications:



Certificate

Certificate Mark Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃
Certificate No CNEx20.0939X
Standards Q/320412 ZAF141-2020

Mechanical

Housing Stainless steel 304 or 316L
IP IP68(2m/2h)
Cable thread hole 2pcs M27×1.25或M25×1.5
Glass GE glass

Electrical

Voltage 100~240V a.c. or 24V a.c./d.c. or 12V d.c. or PoE+(48V d.c.)
Power ≤36W;≤25W(PoE)
Optional surge protector TVS 6000V
Optional within fiber optical cable Multimode, or signal mode

Ambient

Ambient temperature -40 to +60℃
Air pressure 80KPa~110KPa
Relative Humidity ≦95% (no condensation)

Thermal Camera

Detector Type Uncooled Vanadium Oxide Infrared Focal Plane Detector
Resolution 640×512
Lens 4.1mm/5.8mm/9.1mm/13mm/19mm/25mm/35mm/55mm
Pixel pitch 12μm
Response Band

8~14μm

Pseudo Chromatic Black /white
Black hot/white hot
Black hot/white hot
Pseudo Color Support 18 palettes
Support 18 kinds
Temperature measurement range

-20℃~+150℃, 0℃~+550℃

High and low gain mode High gain, low gain, high and low gain automatic switching
Temperature measurement accuracy ±2℃ or ±2% of reading (whichever is greater) @ ambienttemperature -20℃~60℃
Network protocol

Ethernet/IP, TCP, UDP, SNTP, RTSP, HTTP, ICMP, SMTP, DHCP,

UPnP, PPPOE

Video compression standard H.264/H.265
Video format

mp4, mov



General

Cable integrated cable
Size 464*166*171mm
Weight 8.6kg
Mounted wall, pole
Wall bracket ZAZ100B

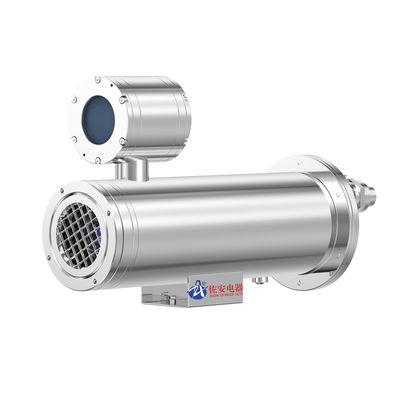

ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area 0

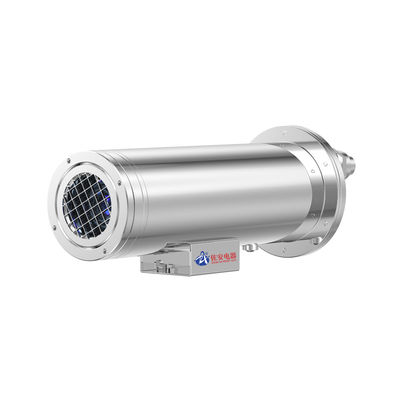

ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area 1



xplosion proof thermal imaging camera accessories:

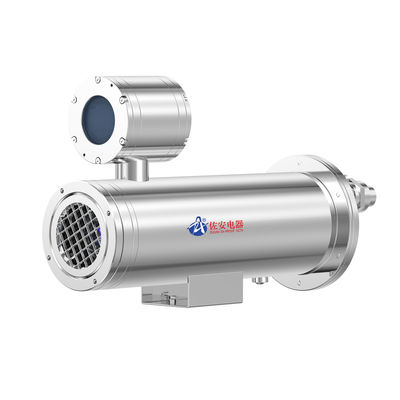

ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area 2ZAFR125 series Explosion-proof Thermal Imaging Camera for Power Plant Hazardous Area 3
                        ZANXG Exe flexible tube                                  ZAZ100B wall bracket
