ATEX, IECEx certified DARK FIGHTER TYPE 2MP 33X AI Network Explosion Proof PTZ Speed Dome Camera

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: ATEX, IECEx
Model Number: CZ637
Minimum Order Quantity: 1 set
Price: USD 2000-3000 per set
Packaging Details: carton box
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 100 sets per week
Material: Stainless Steel 304, 316L Certificate: ATEX, IECEx
Camera: 2MP Optical: 33X Zoom
Mount: Wall Mount, Ceiling Mount

ATEX, IECEx certified DARK FIGHTER TYPE 2MP 33X AI Network Explosion Proof PTZ Speed Dome Camera



ATEX, IECEx certified DARK FIGHTER TYPE 2MP 33X AI Network Explosion Proof PTZ Speed Dome Camera 0



CZ637 System Overiew

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, CZ637 explosion proof PTZ speed dome camera can provide large monitoring range and great detail. CZ637 explosion proof PTZ speed dome camera has very excellent low light performance due to adopting the latest starlight technology. The camera is equipped with smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.



Starlight Technology

For challenging low-light applications, starlight Ultra-low Light technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005lux. This explosion proof speed dome camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.



Wide Dynamic Range

CZ637 explosion proof PTZ speed dome camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.



Auto-tracking

This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, CZ637 explosion proof PTZ speed dome camera can zoom in and track the defined target automatically.



Application

CZ637 explosion proof PTZ speed dome camera is certified ATEX/IECEx Hazardous Location. Zuoan can respond respond to all of these challenging demands with a wide range of equipment with the most advanced technical features for CCTV systems that operate in Marine(with high corrosive salt), offshore, Oil & Gas and industrial locations (IIB and IIC).



Data sheet

CZ637 ATEX AI PTZ Dome 2MP 33X data sheet.pdf

Certificate

Certificate Mark

CZ637-C:Ex Ⅱ 2 G Ex db op pr ⅡC T6 Gb

Ex Ⅱ 2 D Ex tb op pr ⅢC T80 ºC Db

Other model:Ex Ⅱ 2 G Ex db ⅡC T6 Gb

Ex Ⅱ 2 D Ex tb ⅢC T80 ºC Db

Series definition

CZ637-C (optical fiber cable output, Single mode single fiber).

CZ637 (None: high configuration, A (Basic), B (Lower configuration), D (Starlight).

Standards

EN IEC60079-0:2018, EN60079-1:2014, EN60079-28:2015,

EN60079-31:2014 , IEC60079-0:2017, IEC60079-1:2014,

IEC60079-28:2015, IEC60079-31:2013

Certificates CNEX 19 ATEX 0038X, IECEx CNEX 19.0028X

Mechanical

Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 1pcs M27×1.25 or M25×1.5
Wiper No
sunshade Support

Electrical

Voltage AC24V ± 25% or POE+ (802.3at) or 100240V AC
Power Less than 75W

Ambient

Ambient temperature -40ºC+60ºC
Air pressure 80110kPa
Relative Humidity ≦95% (no condensation) @25

Pan & Tilt

Pan 360° endless
Tilt -20 to 90°
Speed Horizontal 0.1-300°/s, Vertical 0.1-150°/s
Cruise Scan Support
Keep watch Support
Preset 64/128/255/300
Tour 8 (up to 32 presets per tour)
Resume function Support
Auto Cruise Support
Auto Scan Support

Camera

Image Sensor 1/1.8" progressive scan, 2.0 megapixel, CMOS
Frame rate

Main stream: 2MP (1920x1080), Max. 30fps

Sub stream: 2MP (1920x1080), Max 30fps

Third Stream: D1 (720X576), max 30fps

Min. Illumination Color 0.001Lux/F1.5 B/W: 0.0001Lux/F1.5
Shutter Time Auto/ Manual, 1sec~ 1/3,0000 sec
Iris Auto/Manual F1.5~F4.8
Day&Night Auto ICR
Digital noise reduction 2D/3D DNR
S/N Ratio More than 52dB
Defog Digital Defog
WDR 120dB
Support White balance, auto gain control
Privacy Masking Up to 24 areas

Lens

Focal Length 5.8-191.4mm, 33X optical
Aperture Range F1.5-F4.8
Angle of View H: 60.1-3.2°; V:35.3-1.8°; D:67.9-3.7°
DORI distance Detect Observe Recognize Identify

1655m

(5429.80ft)

622m

(2040.68ft)

331m

(1085.96ft)

165m

(541.34ft)

Artifical Intelligence

Video Meta data

Support human, motor Vehicle and non-motor Vehicle

image capture

Perimeter Protection Tripwire and intrusion, Support alarm triggering by target types(human and vehicle), Support filtering false alarms caused by animals, rustling leaves, bright lights, ect
SMD Plus Support
Auto tracking Support
Face Detection Support

General Intelligence

Event Trigger

Motion detection, video tampering, Scene changing,

Network disconnection, IP address conflict, illegal access,

and storage anomaly.

General IVS Object Abandoned/ Missing

Network

Network Interface 1pcs of RJ45, support 10M/100M
Video Compression Ultra 265, H.265, H.264, MJPEG
Audio Compression G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Voice Intercom Support
Stream Support three streams
Internet Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Time Display Support
Compatible Integration ONVIF( profile S, profile s&G), CGI
Security Password protection, Multiple access control
Optional Audio in 1(LINE IN; bare wire)
Optional Aduio out 1(LINE OUT; bare wire)
Optional 7/2

Control

Camera address on/off (0-254)
Focus Mode Auto/Manual/One touch
Gain off/ lower/ higher
Slow shutter X256 MAX
White Balance Auto white balance 1/auto white balance 2/Manual/auto
Private Off/ Mode 1/ Mode 2
Video 3D DNR, mirror, brightness, Contrast, Sharpness adjustable
Digital zoom X16
Zoom display on/off
ZCF control mode mode 1, mode 2

General

Cable integrated cable
Size 282.5*282.5*408.1mm
Weight 18kg

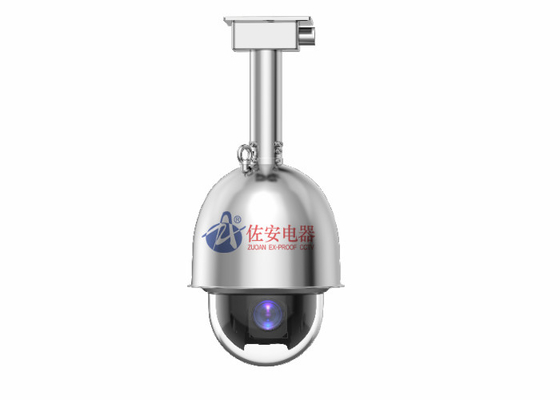

Mounted wall, ceilling

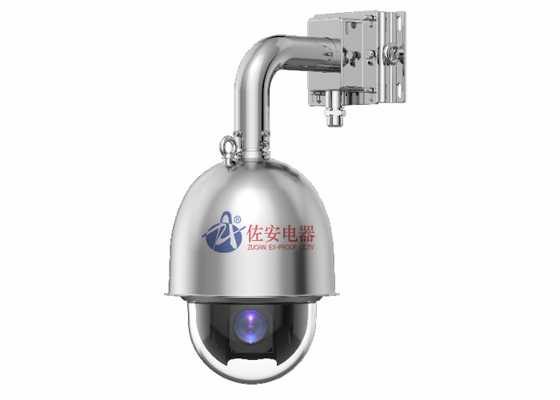

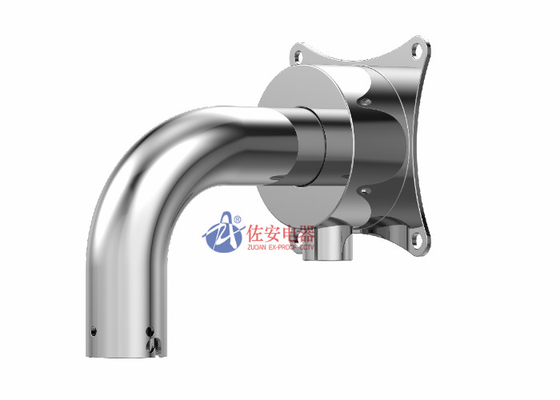

Wall bracket ZAZ637-B

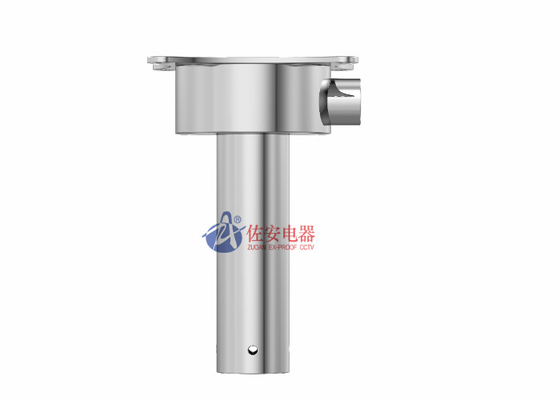

Ceiling mounted bracket ZAZ637-D
Sunshield optional
Safety hook supported



Dimension:

ATEX, IECEx certified DARK FIGHTER TYPE 2MP 33X AI Network Explosion Proof PTZ Speed Dome Camera 1



Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
