|Place of Origin:||Changzhou, China|
|Certification:||ATEX, IECEx, CNEx|
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Firm carton|
|Delivery Time:||5-8 work days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||1000 set per month|
|Material:||Stainless Steel 304, 316L||Certification:||ATEX, IECEx, CE|
|IP:||IP68||Input Voltage:||100～240V AC Or 24V AC|
|Temperature:||-40 ºC～+60 ºC||Window Glass:||Toughened Glass|

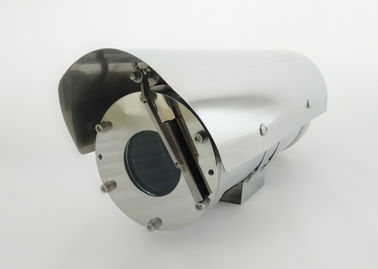

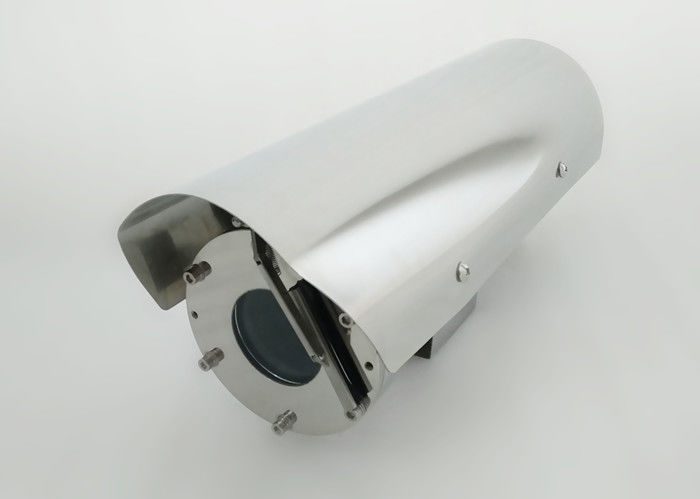

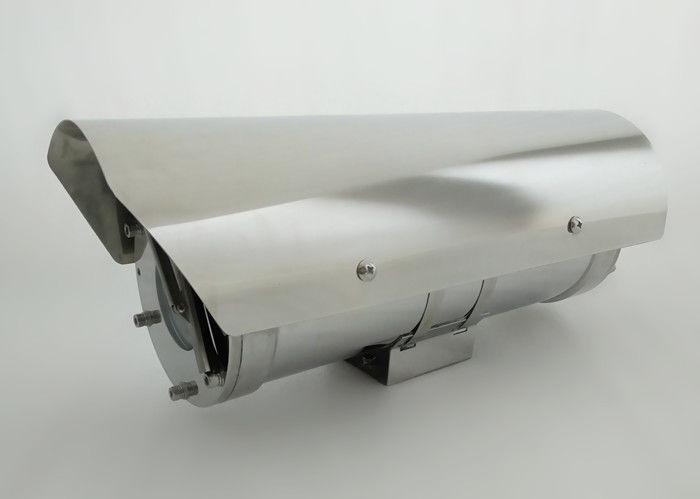

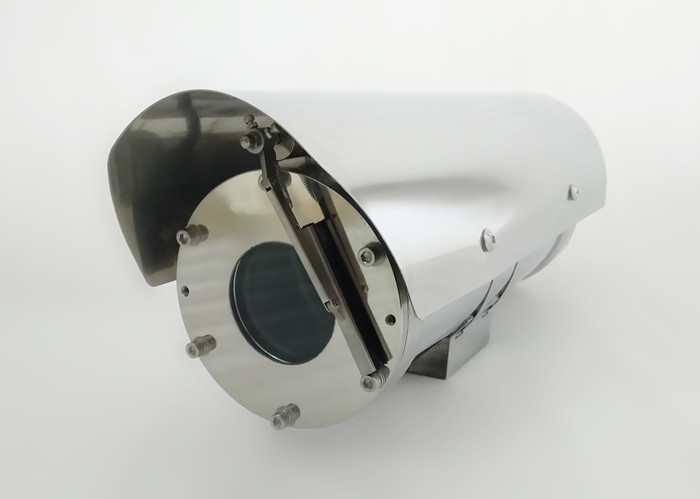

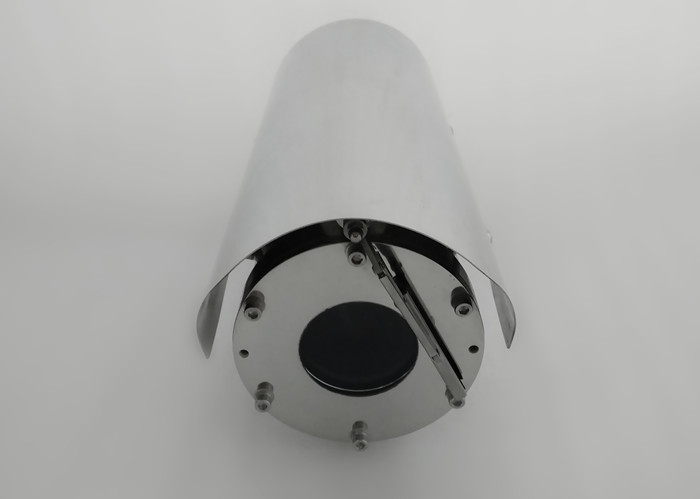

CZ100-A Explosion proof ATEX CCTV Camera For Hazardous Zone 1, 2, 21, 22
CZ100-A is Zuoan developted explosion proof ATEX CCTV camera. Explosion-proof Camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.

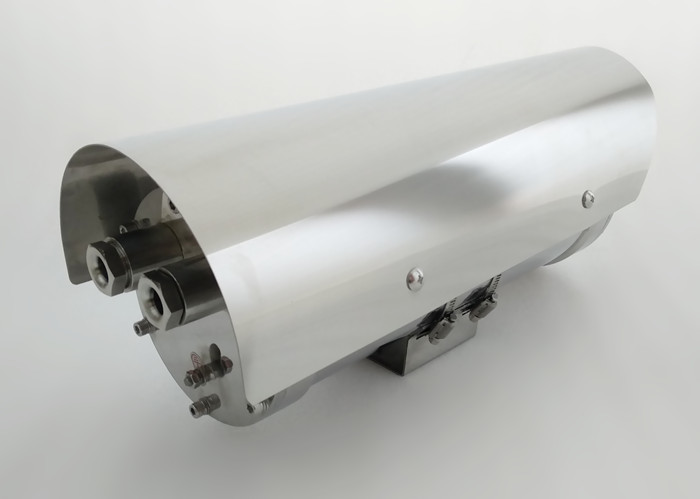

The ATEX CCTV camera enclosure, front flange and rear flange are all made of stainless steel 304 or 316L material. At the end of rear flange, there are 2* cable entries for camera and power cable thread by.
All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The CZ100-A explosion proof ATEX CCTV camera ingress protection level also reach to IP68(1.2m/45min).
This ATEX CCTV Camera can catch clear images in low illuminance, the image signals of this camera can be converted to video signals or network signals. It will zoom in/out the lens and start/stop the wiper according to the command from the server.
The CZ100-A has bigger inner size for various camera, such as box camera, zoom camera, bullet camera with fixed lens. Client are all welcomed to offer your brand camera tous. We also perfer assembly client camera into this ATEX CCTV camera housing.
|Crust||stainless steel 304/ 316L|
|Explosion proof marking||
Ⅱ2G Ex db ⅡC T6 Gb,
Ⅱ2D Ex tb ⅢC T80 ºC Db
|Explosion proof certification||ATEX, IECEx, CE|
EN60079-0: 2012+A11: 2013,
EN60079-1: 2014, EN60079-31: 2014
IEC60079-0: 2011, IEC60079-1: 2014,
zone 1, 2
(IIA, IIB, IIC, T1~T6 gases, vapors and air may exist)
zone 20, 21
(explosive dust may exist)
|IP rated||IP68 (1.2m/45min)|
no more than 95% (+25ºC)
|Power input||AC100-240V, or AC24V|
|cable output||2 cable entries|
|Window glass||Strong temperared glass|
|camera||all brand analogue and network camera|
CZ100-A ATEX CCTV Camera Drawings:
CZ100 ATEX CCTV Camera Accessories:
