2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light

2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light

    • 2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light
    • 2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light
    • 2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light
    • 2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light
    • 2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light
  • 2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: ATEX, IECEx, CNEx
    Model Number: CZ610-HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-3999 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Digital Camera Style: Box Camera
    Sensor: CMOS Technology: Pan / Tilt / Zoom
    Certificate: ATEX, CNEX Ingress: IP67
    Housing: Stainless Steel 316L Infrared Light: Germany Made Array Light For 0-100m Night Vision
    Network Camera: 2MP. 32X Optical Zoom Weight: 27KG
    Pan And Tilt: 360 Degree Auto Tracking Preset Patrol: 128 Points

    2Megapixel Full HD 32x  Explosion-proof ATEX CCTV Camera With  Pan Tilt Infrared Light



    Main features: 2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light



    ·ATEX certificated
    ·stepping motor drive
    ·Adopts stainless steel 316L
    ·Surface finish: electropolished or corrosion resistant paint finish
    ·IP68
    · cable gland
    ·Tempered glass with nanometer paint film for visiable light camera
    Germanium front window for thermal imaging camera
    ·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
    ·installation: mounted on ceiling, wall with pan &tilt, brackets.
    ·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
    ·Communication : Pelco-D/ Pelco-P/TCP/IP
    ·Communication rate: 2400~19200bps
    ··Output: AV/H.264/RJ45
    ·Control: RS-232/RS485
    ·Camera: 2MP 32x zoom camera
    ·Telephoto limited speed: yes
    ·Variable angle: horizontal 360°, vertical ±90°
    ·Preset patrol: 256/ 128 points



     2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light



    Description:

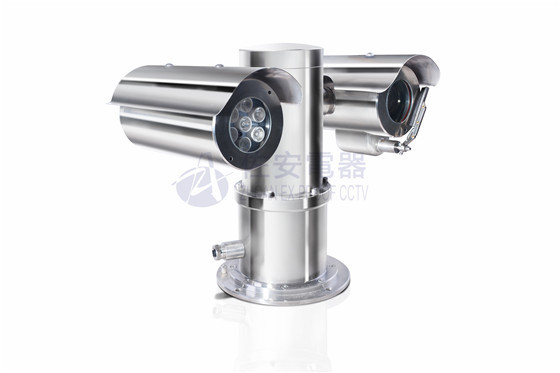

    CZ610-HD is full HD ATEX CCTV camera, which is integrared with pan tilt, infrared lights and wiper system. It is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 21, 22. Its IP67 rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.

    Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The optional camera and the decoder are integrated within the housing, which permits multiple communication response protocols, depending on orders. It offers 256/128 preset options including pan/tilt and focus. The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring, and equipped with infrared array light for night vision.



     Applications:

    With stringent certifications, explosion proof ptz camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



    Data sheet:



    Model CZ610-HD
    Crust stainless steel 316L
    Camera type

    2MP, 32X optical zoom

    color min 0.3Lux; B&W 0.03Lux

     focal length:4.44-142.6mm

    Infraredlight 0-20m, 20-60m, 60-100m
    Explosion proof certified

    ExⅡ2G Ex dⅡC T6 Gb, Ex t ⅢC T80℃ Db

    Exd II CT6 & DIP A20, TA, T6

    certification No. CNEx13.3111
    Weather proof IP67
    Running speed 0.1-45°/S
    Running angle horizontal 360 °, vertical ± 90°
    preset point 128 points
    function auto scanning, auto cruise, keep watch
    equipped wiper system, sunshield,
    power input AC24V, AC220V, AC85-265V
    operate temperature

    -25~65°C

    lower temperature type: -50~65°C

    Control  RS485, Pelco-D / Pleco-P
    Signal output RJ45
    Netweight 27Kg



    Details images:

    2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light     2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light



    Accessories:



    2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light

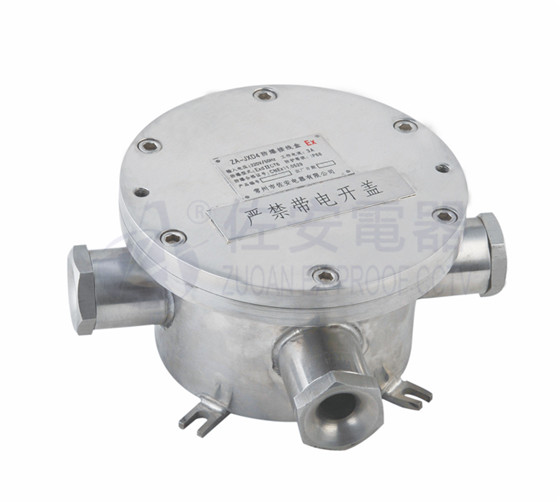

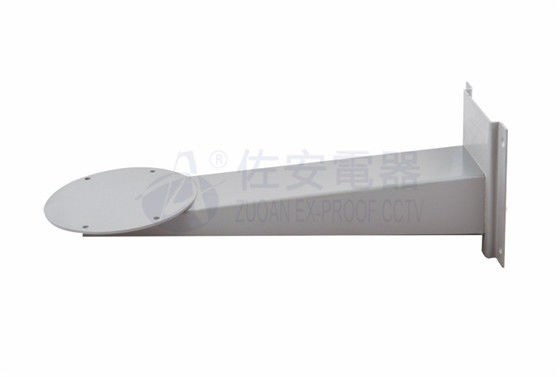

      ZAZ670B Wall Bracket          ZA-JXD4 Explosion Proof JB       ZANXG Exe Flexible Tube





    Other Explosion Proof PTZ Camera Station:

    2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light                2Megapixel Full HD 32x Explosion-proof ATEX CCTV Camera With Pan Tilt Infrared Light

    ZAY210 Seperate Pan Tilt Station      CZ610-60 Network PTZ Camera










    ATEX large size explosion proof CCTV camera with wiper
    Flameproof stainless steel explosion proof camera housing
    Air cooling explosion proof heat resistant camera housing for furnace
    Infrared light flame proof explosion proof camera housing
    700TVL night vision flame proof mini explosion protected camera with infrared lights
    360 degree auto tracking ATEX explosion proof ptz camera
    2MP 20X long range night vision explosion proof ptz camera with laser lights
    2MP 20X explosion proof dome camera with infrared light
